Roxell FLEX-AUGER FA 75 - Outlet Drop Assy W;Shut-Off Model 125; Telescopical Drop Tube - 03100435

ROXELL - 031 - 0516
FLEX-AUGER - COMPONENTS
II-44

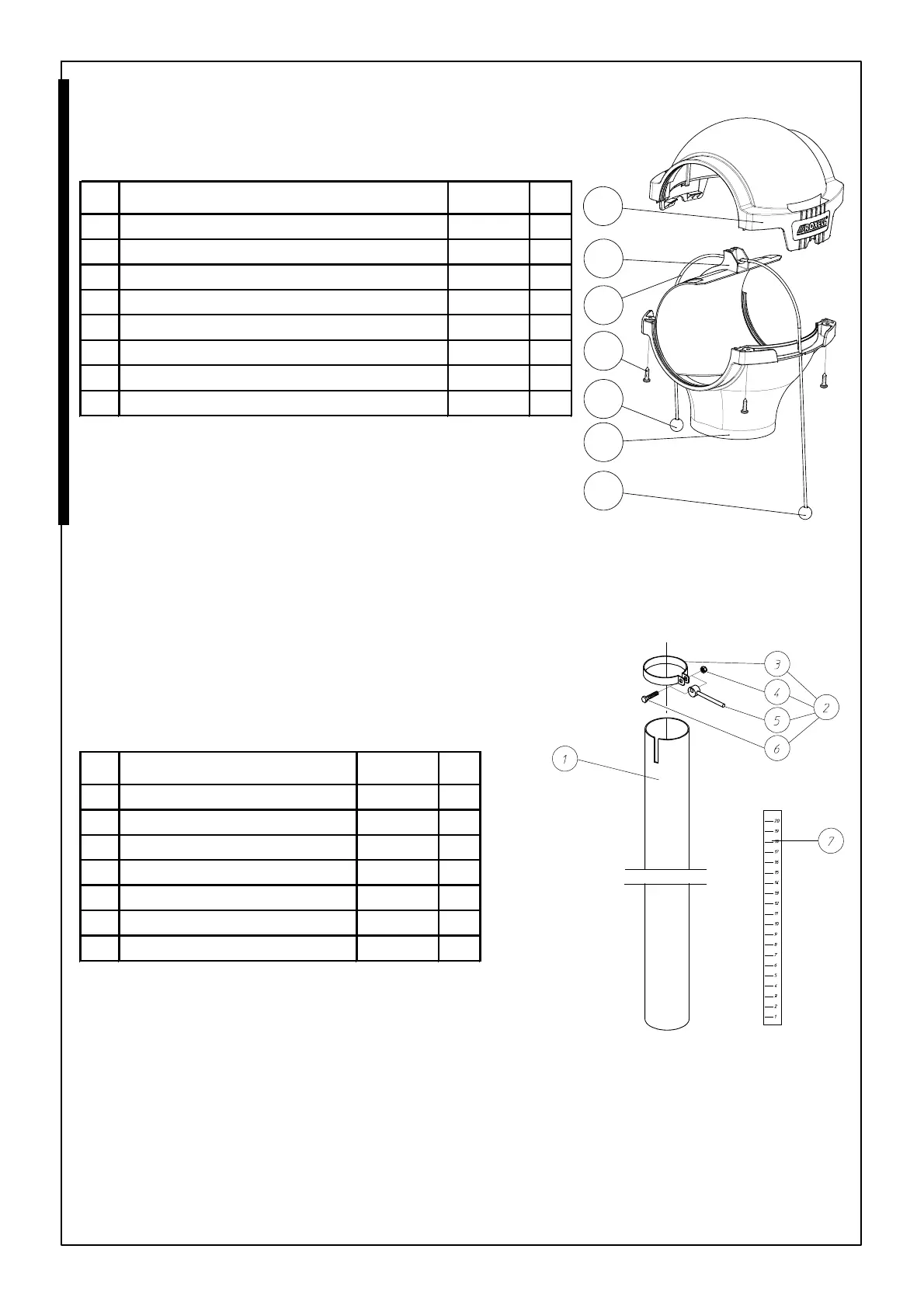

OUTLET DROP ASS'Y W/SHUT-OFF MODEL 125
2
3
5
4
6
7
1
Key Name Part Nr. Qt.
1 BOTTOM PIECE - OUTLET DIA125 03701004 1
2 TOP PIECE - OUTLET DIA125 03700996 1
3 CLOSING SLIDE - OUTLET DIA125 03701012 1
*4 PARCKER SCREW 4.2 X 16 - DIN 7981 - A2 20102331 4
*5 SLIDE ROPE 13103916 1
*6 INDICATOR BEAD RED 13201355 1
*7 INDICATOR BEAD GREEN 13201363 1
* SLIDE ROPE + HARDWARE KIT 03000395 1
TELESCOPICAL DROP TUBE - 03100435
Key Nam e Part Nr. Qt.
1 TELESCOPICAL TUBE 13100029 1
2 CLAMP ASS'Y 13103650 1
3 CLAMP DIAMETER 75 10107563 1
4 LOCKNUT M6 - DIN 985 20100400. 1
5 EXENTRIC ARM 13107933 1
6 BOLT M6 X 30 - DIN 933 - 8.8 20100194 1
7 FEED LEVEL DECAL 13104179 1
