ROXELL - 031 - 0516
FLEX-AUGER - INSTALLATION INSTRUCTIONS
III-43

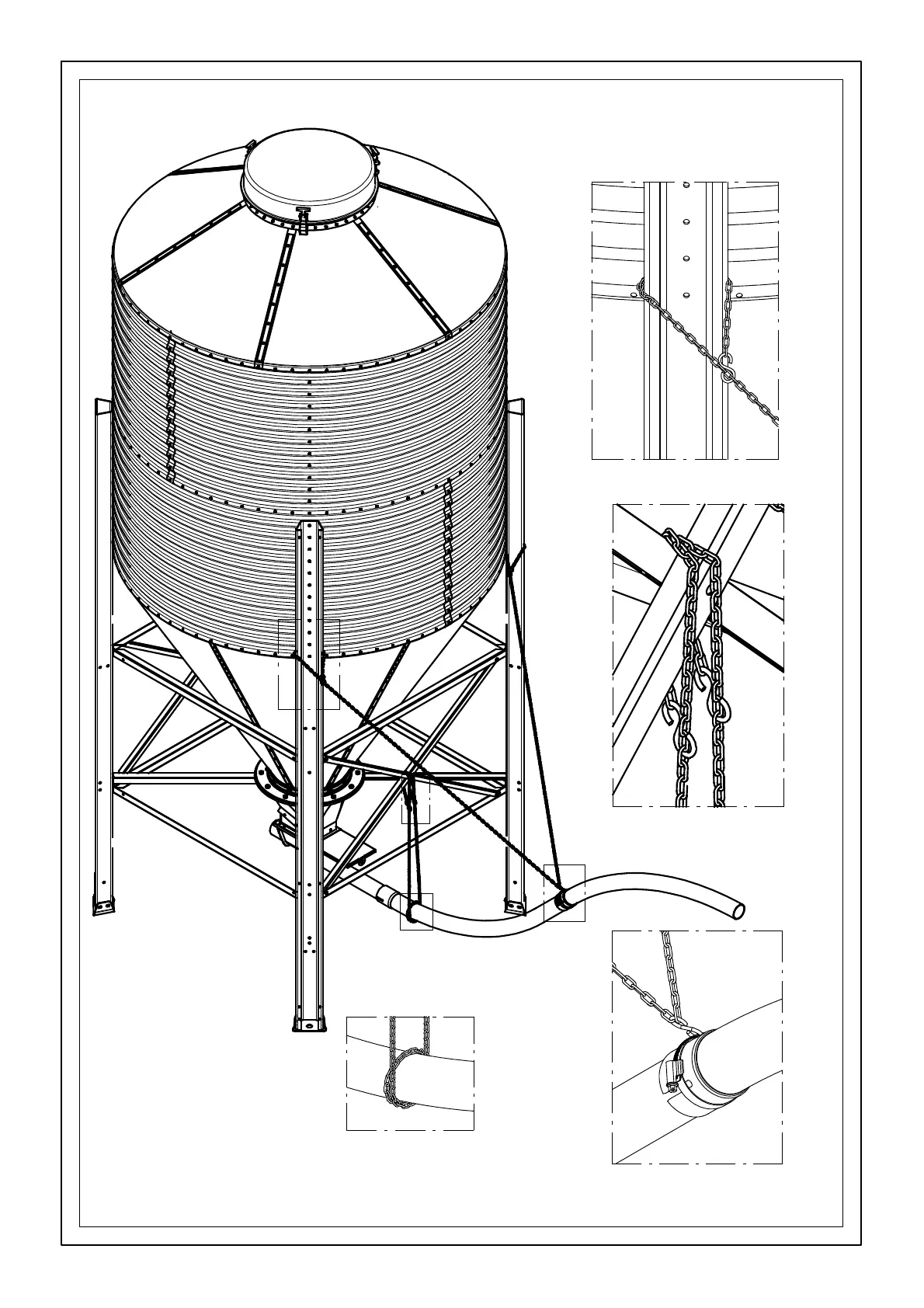

The hopper must not carry the weight of the tubes.
So support the tubes with 2 chains.
Wind the chain 1 x around the tube.
FIGURE 86.
Fix the chain around the bin leg.
Put an S-hook between the tube and the tube clamp.
Fix the chain to the S-hook.
