Roxell FLEX-AUGER FA 75 - TO INSTALL THE RETURN TANDEM SYSTEM (MODEL 75 & 90)

ROXELL - 031 - 0516
FLEX-AUGER - INSTALLATION INSTRUCTIONS
III-50
If bins do not have the same capacity : make sure
that bin A is the smallest.
AB
Maximum center distance
between both bins : 4m.

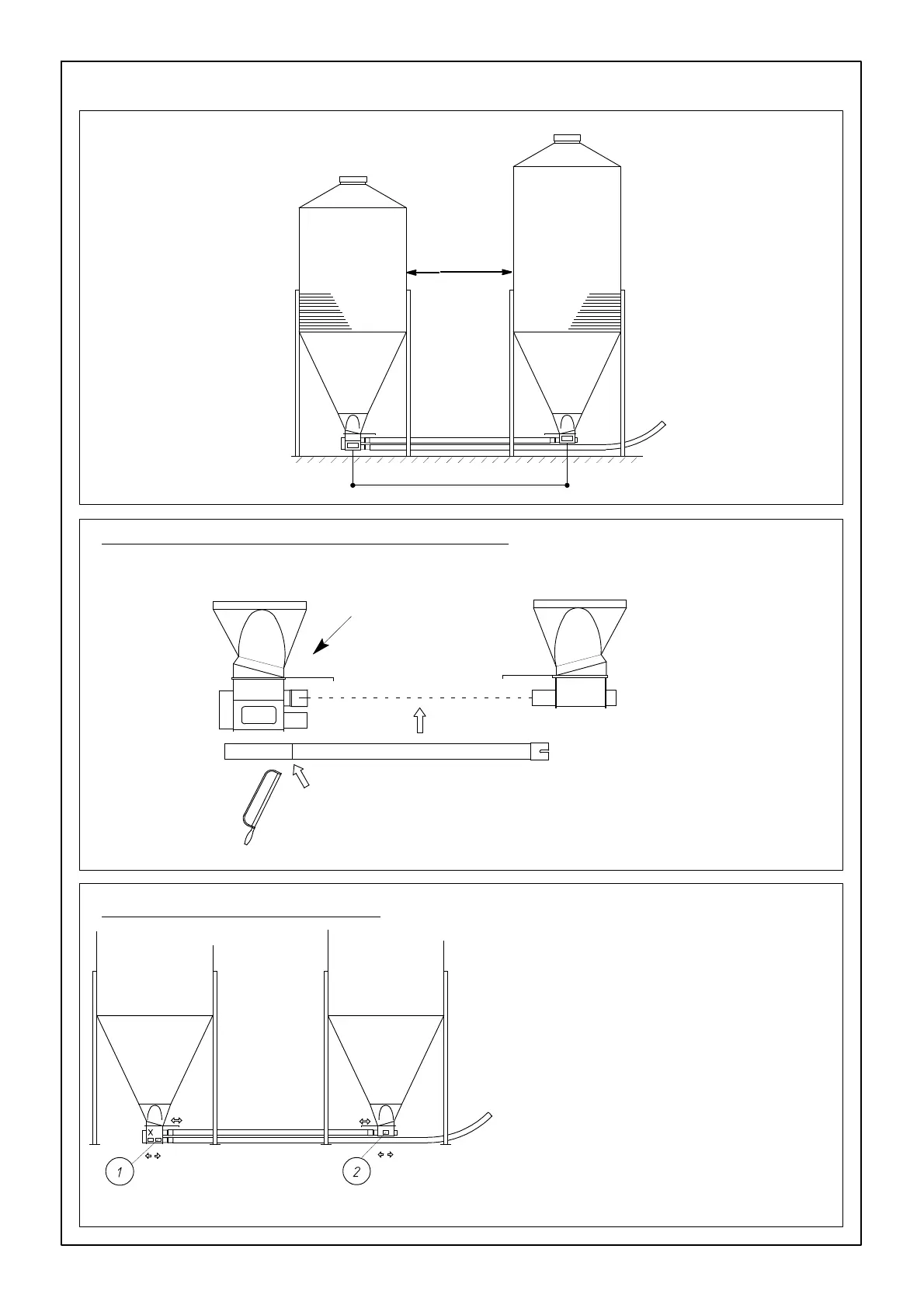

FIGURE 112.
Minimum
distance
TO INSTALL THE RETURN TANDEM SYSTEM (MODEL 75 & 90)
Fix the tube to the intake boot.
Do not fix the intake boot to the upper boot at this stage !
FIGURE 113.
DETERMINE LENGTH OF TUBE BETWEEN BOTH
BINS.
Close slide of bin B.
Open slide of bin A with the tandem intake
boot.
Adjust flow regulator 1 in the intake boot until
the system runs without overload and/or until
you get the required capacity.
Close slide of bin A and open slide of bin B.
Now adjust flow regulator 2 so that the feed
flow from B to A is slightly lower than the Flex-
Auger system feed flow. That way no obstruc-
tion will occur.
Position X = the highest capacity.
FIGURE 114.
TO INSTALL THE FL OW
REGULATOR
AB
