FLEX-AUGER - INSTALLATION INSTRUCTIONS
III-55
Installthelevelswitchinsuchawaythatno
feed can get behind the paddle.
The location depends upon the drop tube.
FIGURE 120.
IN
ROXELL 100KG HOPPER

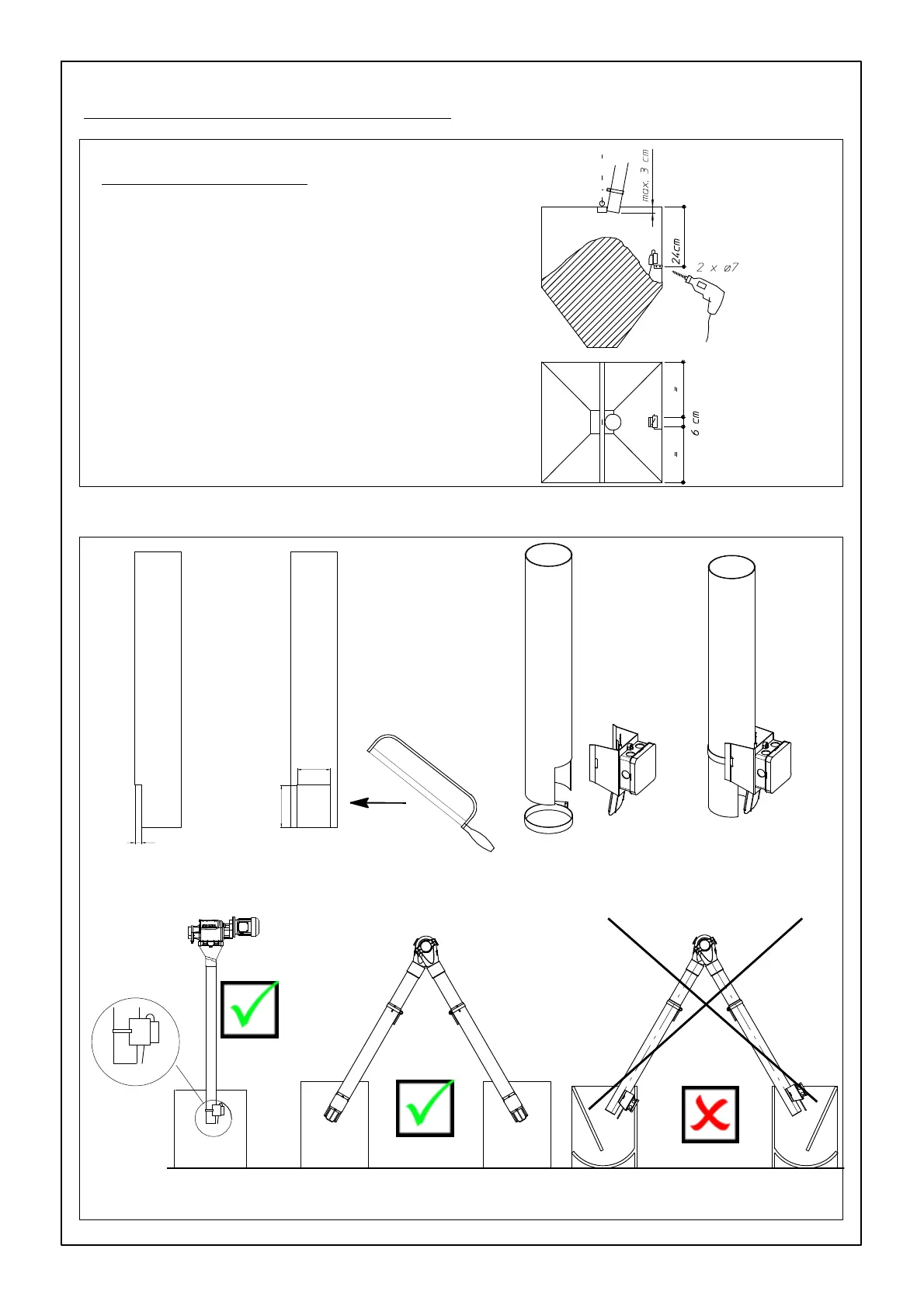

TO INSTALL THE HOPPER LEVEL SWITCH
INAFEEDINGTROUGH(SEEfig.66. PAGE. III-37)
FIGURE 121.
BOTTOM IN
LINE WITH
DROP TUBE
END
InstallthelevelswitchinsuchawaythatitCANNOTbeactivatedby:
A.thefeedflow
B. its own weight.
12.4
60
77
TO INSTALL THE DROP TUBE LEVEL SWITCH
