Roxell FLEX-AUGER FA 75 - Page 82

ROXELL - 031 - 0516

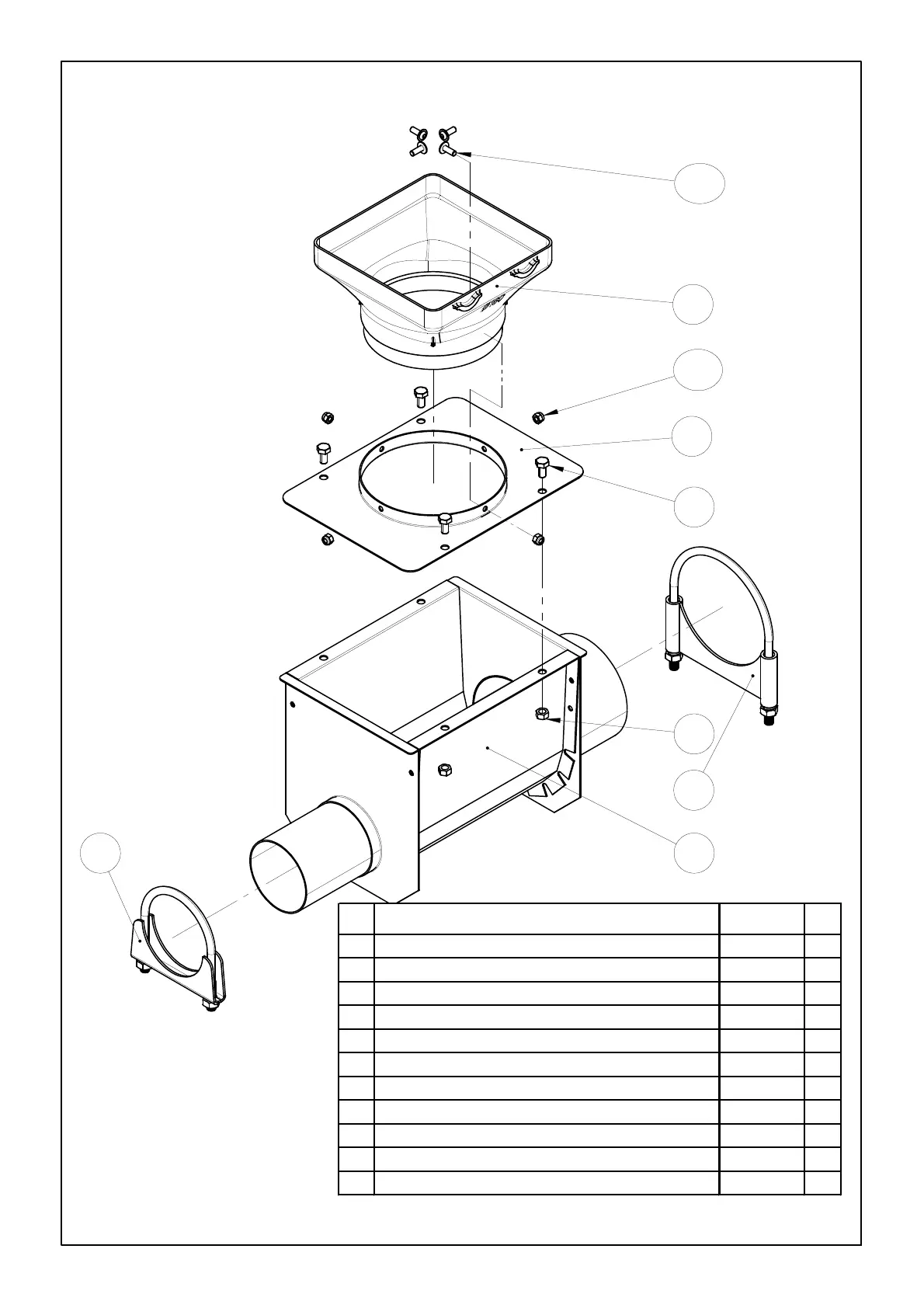

FLEX-AUGER - COMPONENTS
II-60
2.3.2
2.3.1
3
6
4
57
2.2
2.1
FLEX-AUGER MIX - 03000536
Key Name Part Nr. Qt.
5 BOOT BODY WELDMENT - FA MIX 13701529 1
2 FA EXTENSION 360° FOR INTAKE BOOT 03000544 1
2.1 EXTENSION PLATE Ø160 GALVANISED 13109525 1
2.2 DROP Ø160 FOR EXTENSION BOOT 13000492 1
2.3 HW KIT FOR FA EXTENSION 360° 13000518 1
2
.3.1 LOCKNUT M6-DIN 985-A2 20101960 4
2
.3.2 BUT.HEAD CAP SCREW WITH FLANGE M6X16-A2 20109146 4
3 BOLT M8X16 - DIN 933-8.8 20100228 4
4 NUT M8 - DIN 934 20200028 4
6 TUBE CLAMP ASSEMBLY Ø140MM 03700077 1
7 TUBE CLAMP ASSEMBLY Ø95MM 03200029 1
