28 Software Installation & SD Memory Utilities SPS-2000 Program Manual v1.30
8. The ECR display will monitor file downloads. The message “Image writing finished!!” displays
when complete. When successful the TFTP Server window will display “Sent . . .” for each file as
shown below.
Perform an ALL Clear
1. Power down the SPS-2000 (the main power switch is located on bottom of SPS-2000 in the right-rear
corner).
2. Hold front power button down.
3. Turn SPS-2000 main power switch ON while holding down front power button.
4. Touch [1][2][8][7] for system password.
5. Touch ALL CLEAR.
6. Touch YES when prompted “ALL CLEAR THE MACHINE?”.
7. The SPS-2000 will reboot.
8. Enter the station number after the station reboots: [1] OK.

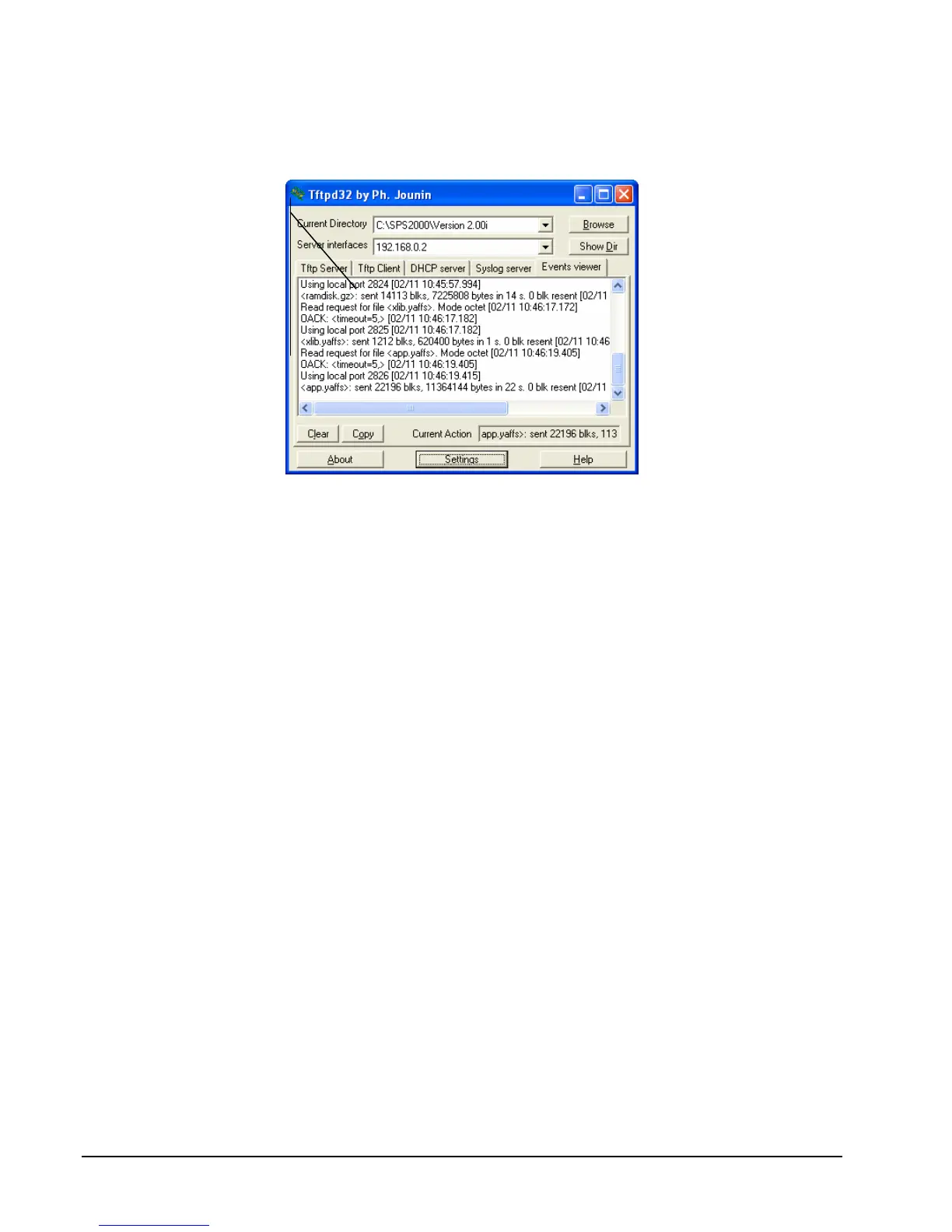

Monitor the TFTP Server
screen to review the progress
of the file downloads. When
data is being transmitted, the
message “Sending. . .”
displays. When complete,
the message “Sent. . .”
displays.
