SPS-2000 Program Manual v1.30 Software Installation & SD Memory Utilities 39

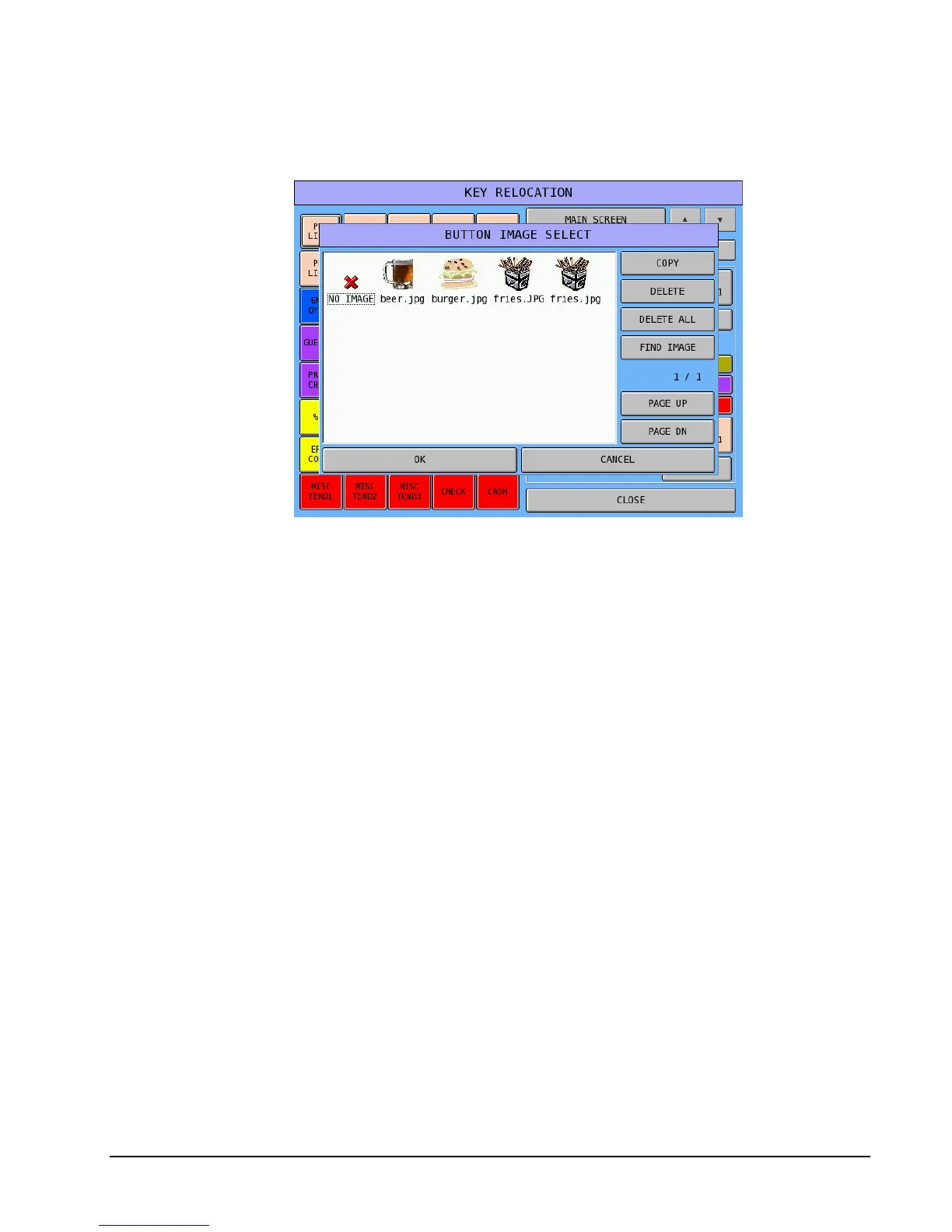

6. After successful transfer, the new images will display. Note that when the image file exceeds 10
images, additional image pages are used. Touch the PAGE UP/PAGE DN keys to view all available
images.
7. Click OK to close the Button Image Select dialog.
Screen Saver Logo
When the screen saver is engaged, the default SAM4s logo moves in a pattern across the screen. This logo
can be replaced with a custom logo. Name the custom logo “logo.jpg”. The maximum logo size is 600
(wide) X 400 (height). (logo.jpg works best if under 100K in size.)
Beginning with software version 2.01n, a second screen saver option is available. Set SYSTEM
OPTION/GENERAL FUNCTION OPTION #58 to ROTATING to allow up to fifty images to sequence on
the screen. These images must be named “logo##.jpg” where ## is 01 through 50.
Follow these steps to implement a custom logo.
1. Make a logo.jpg file (or logo##.jpg files).
NOTE: file must be lower case “logo.jpg” not “LOGO.jpg”
2. Make a folder on the SD card named \image. (This is the same folder that is used to contain key
images.)
3. Copy the logo files to this directory.
4. Move the SD card to the SPS-2000.
5. From the SPS-2000 S Mode menu, choose Key Relocation, then Image, then Copy and confirm.
6. The new image(s) will replace the SAM4s logo as the screen saver.
