Installation Tools
The basic tools required for installation are listed in the table below. The
additional tools required for each site need to be identified and arranged during a
site survey before starting the installation.

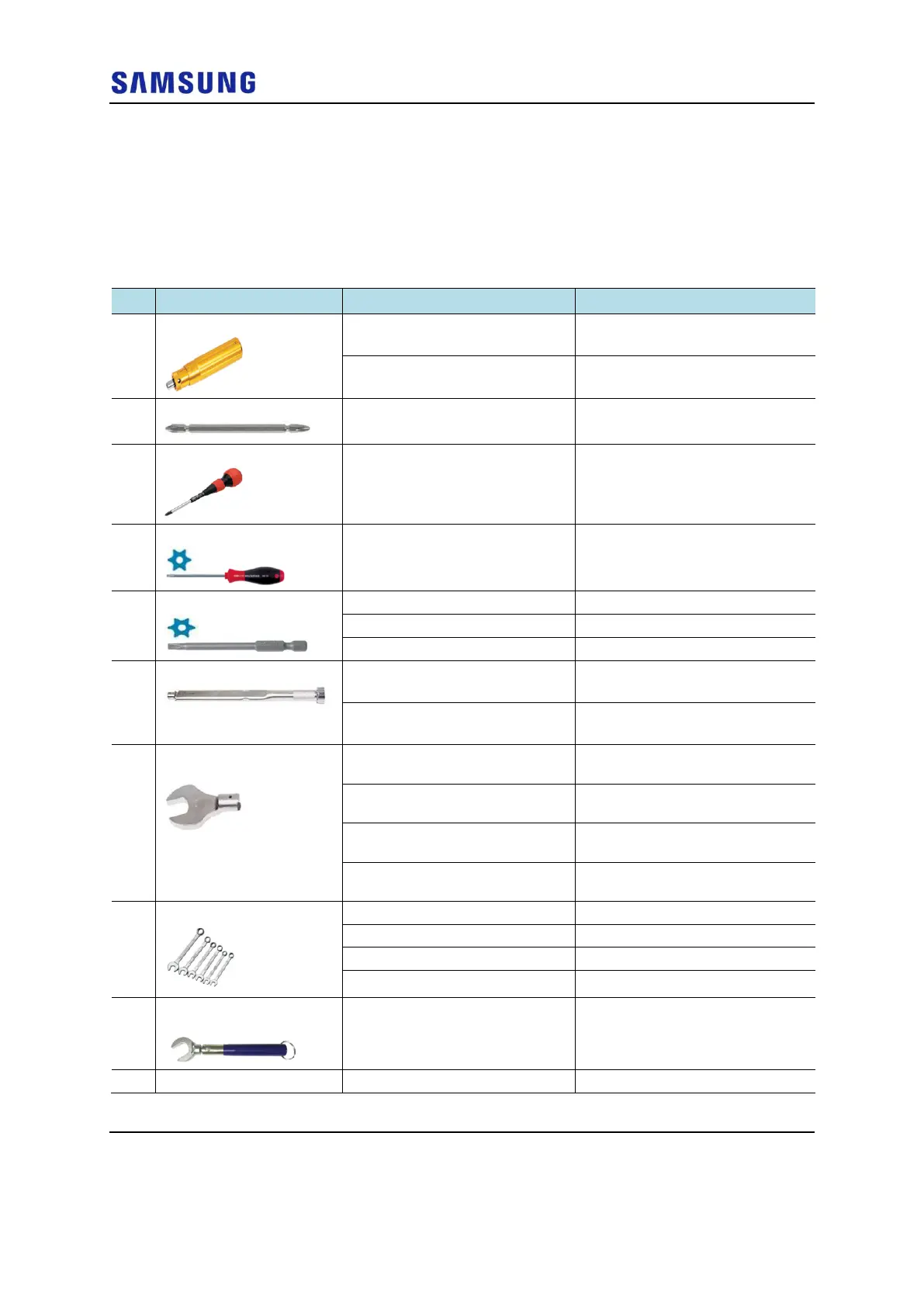

Table 3. Basic Installation Tools
No.
Name
Specification
Purpose of use
1
Torque Driver
Apply a torque range
: 20 to 90 lbf·in
Fastening M6 SEMS
Apply a torque range
: 6 to 22 lbf·in
Fastening M3, M4 Torx screw
2
Screw Driver Bit
'+', No. 3
Fastening M6 SEMS
3
Screw Driver
'+', No. 3
Loosening M6 SEMS
4
Torx Screw Driver
(T10H/T2H/T25H)
Loosening Torx screw
5
Torx Driver Bit
T10H
Fastening Torx screw (T10H)
T20H
Fastening Torx screw (T20H)
T25H
Fastening Torx screw (T25H)
6
Torque Wrench
Apply a torque range
: 10 to 50 lbf·in
Tightening M6 Hexagonal. bolt
Apply a torque range
: 100 to 400 lbf·in
Tightening M10, M12 hexagonal.
bolt
7
Torque Wrench Spanner
Head
Apply hexagonal.bolt head: 10 mm
(for 10 to 50 lbf·in)
Tightening M6 hexagonal.bolt
Apply hexagonal. bolt head: 13
mm (for 100 to 400 lbf·in)
Tightening M8 hexagonal.bolt
Apply hexagonal.bolt head: 17 mm
(for 100 to 400 lbf·in)
Tightening M10 hexagonal.nut
Apply hexagonal.bolt head: 19 mm
(for 100 to 400 lbf·in)
Tightening M12 hexagonal.nut
8
Spanner
10 mm
Tightening M6 hexagonal. bolt
13 mm
Tightening M8 hexagonal. bolt
17 mm
Tightening M10 hexagonal. bolt
19 mm
Tightening M12 hexagonal. bolt
9
Mini DIN Male Torque
Wrench
TQ-78-F8
Tightening 4.3-10 and mini din
connector
10
Tape Measure
16 ft./150 ft.
Measuring length
