Chapter 2 Installing System
RT4401-48A Installation Manual v3.0 17
Copyright © 2019, All Rights Reserved.
The dimensions of the RRH change according to the tilt angle, and the maximum
dimensions are described in the figure above (RRH Arrangement_Down, Up
Tilting 15°).
Without Tilting Bracket
The figures below depict the recommended distances for each direction of the
RRH without using the tilting bracket.

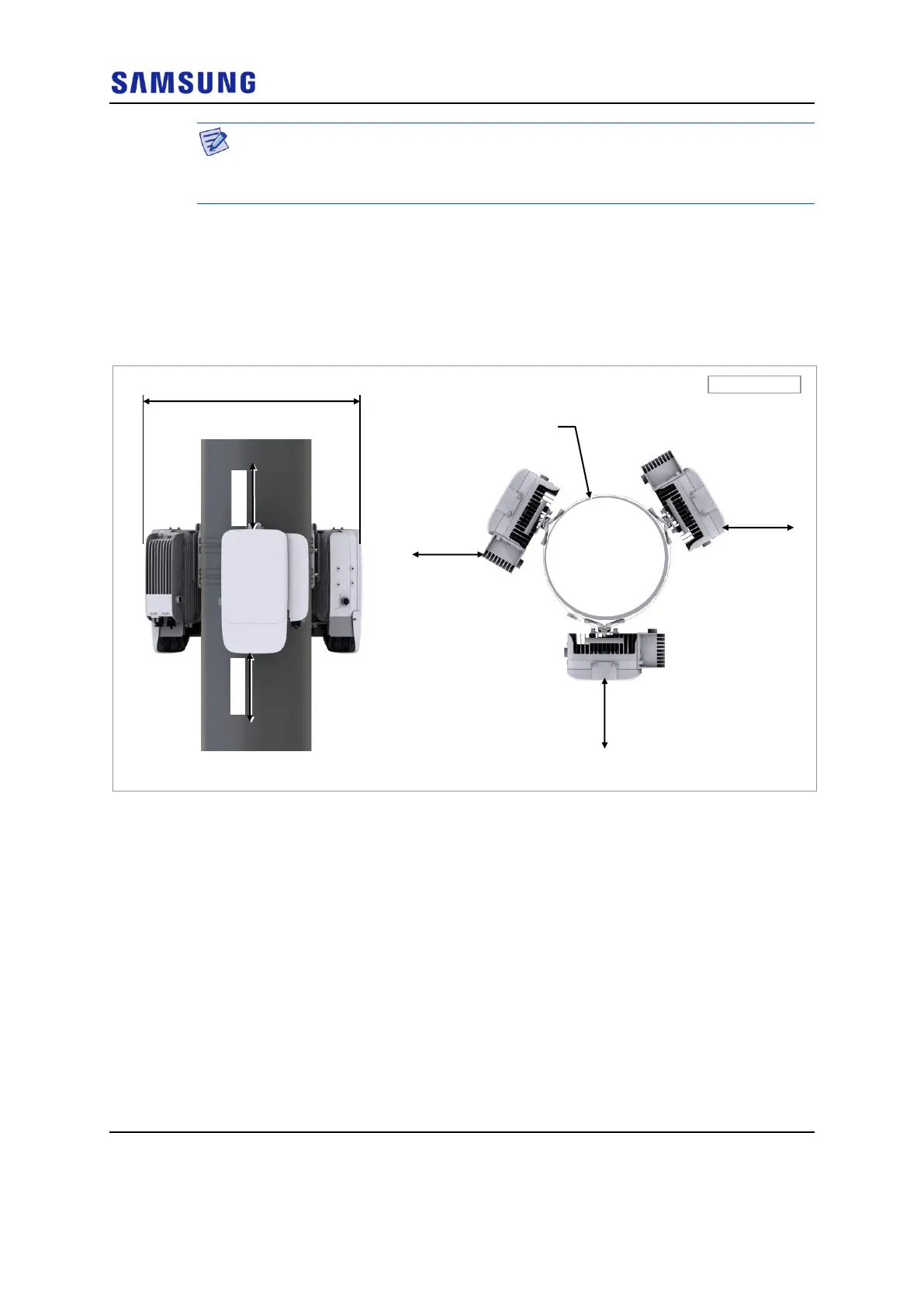

Figure 12. RRH Arrangement_3 Sector Pole Type Installation
Using Side by Side Bracket
The figures below depict the recommended distances for each direction of the
RRH using the side by side bracket for the pole type installation.
Unit: in. (mm)
[Front View]
≥ 12 (300)
≥ 12 (300)
23.0 (584)
[Top View]
≥ 32 (800)
≥ 32 (800)
≥ 32 (800)
Pole
(Ф 8.7 in./220 mm)
※ Example for 200 A pole
