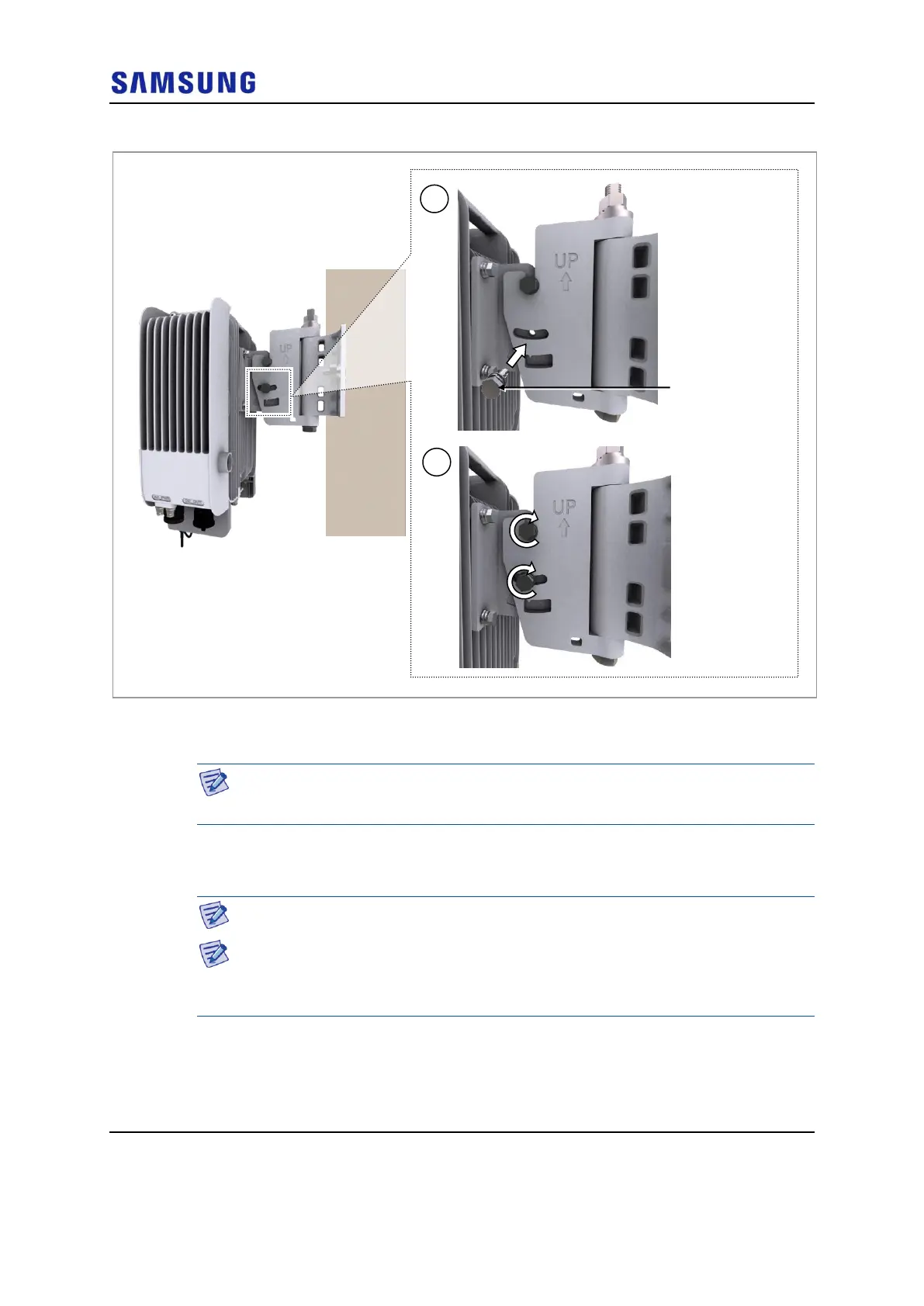

Figure 38. Fixing RRH on the Wall (2)
3 Check the tilt and the azimuth using the RF alignment tool, and adjust when
there is an issue.
For detailed instructions on how to use the RF alignment tool, refer to the user
manual per manufacturer.
Tilting
The instructions for tilting the RRH apply to all installation types.
The adjustable tilting range is as follows:
- Down tilting: 0° to 16°
- Up tilting: 0° to 16°
To adjust the RRH tilting, do the following:
Prerequisites
Before proceeding with adjusting the RRH tilting, make sure that you have the
items mentioned in the table below:
M8 Hex. Bolt
(Washer Assembly)
