Chapter 2 Installing System
RT4401-48A Installation Manual v3.0 35
Copyright © 2019, All Rights Reserved.

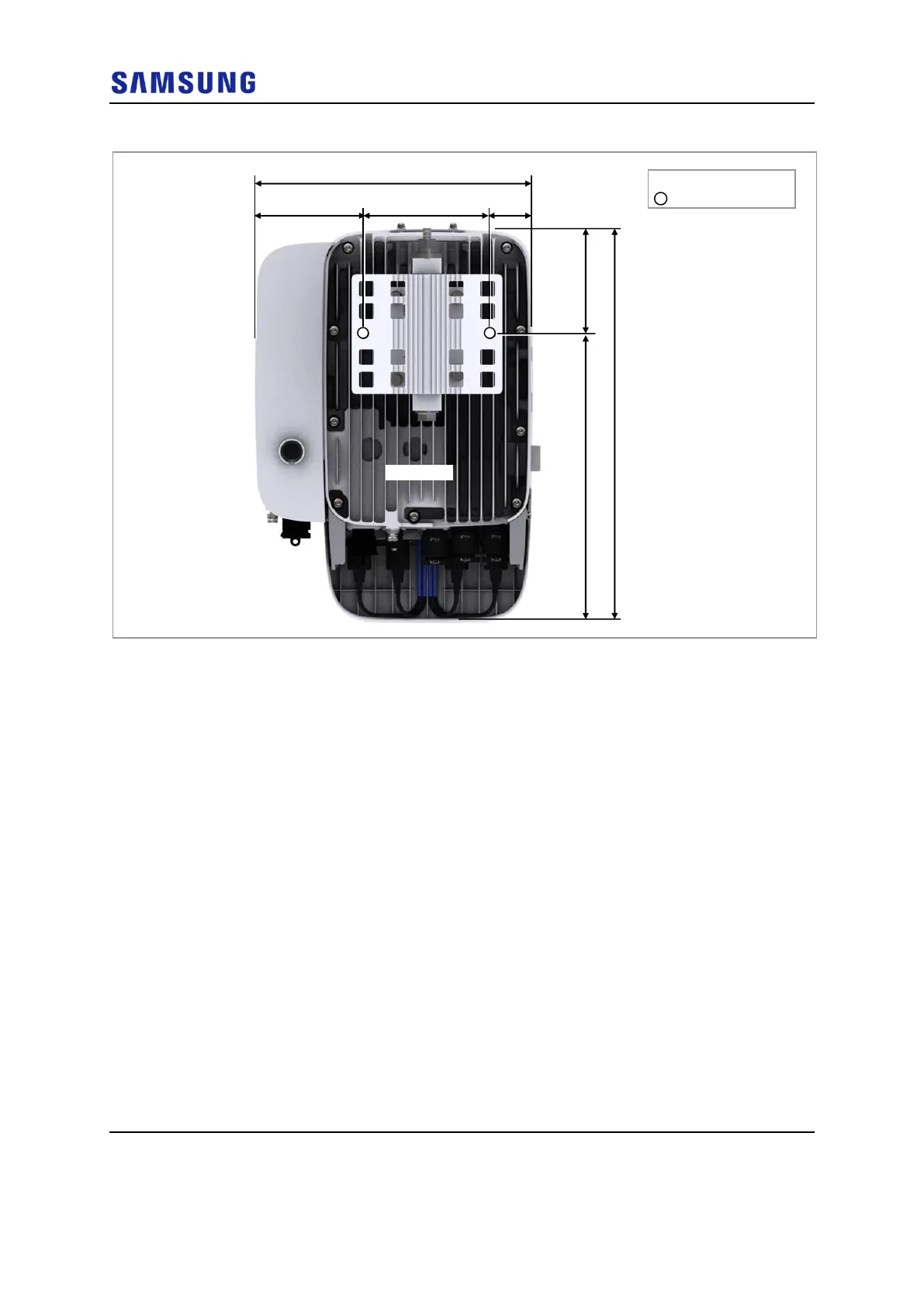

Figure 32. RRH Marking Dimensions
2 Place a mounting bracket on the fixing location, and then check the level status
using a level, and adjust the level of bracket assembly.
3 If the level status is normal, mark the anchor bolt holes on a wall.
: Anchor Bolt Hole
Unit: in. (mm)
[Rear View]
11.4 (289.4)
4.5 (114.4)
16.2 (410.5)
4.25 (107.9)
5.1 (130)
1.8 (45)
11.95 (302.6)
