Chapter 2 Installing System
RT4401-48A Installation Manual v3.0 58
Copyright © 2019, All Rights Reserved.

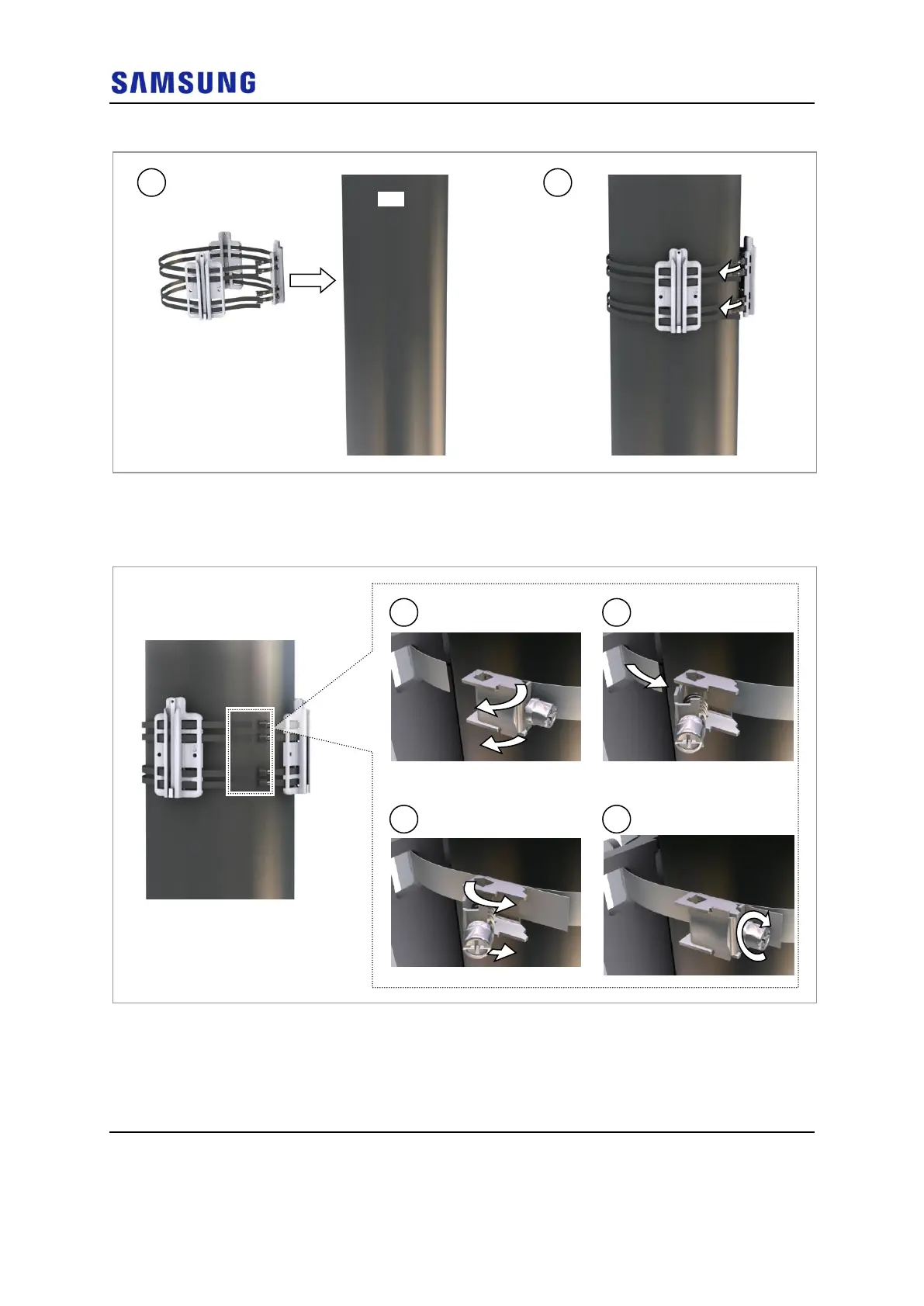

Figure 56. Fixing Mounting Bracket on the Pole (2)
3 Fix the mounting brackets to the pole using the steel band.
Figure 57. Fixing Mounting Bracket on the Pole (3)
4 Check the level of each mounting brackets on the pole and adjust the level.
1
2
3
4
1
2
Pole
