Chapter 2 Installing System
RT4401-48A Installation Manual v3.0 66
Copyright © 2019, All Rights Reserved.
Category
Description
Recommended Torque Value
M10 Flange Nut/M10 Hexagonal Nut
217 lb·in
Working Tools
Torque Wrench (100 to 400 lbf·in)
Torque Wrench Spanner head (apply hexagonal. head: 17 mm)
Spanner (17 mm)
Level
1 Place the side by side bracket assembly to the pole.

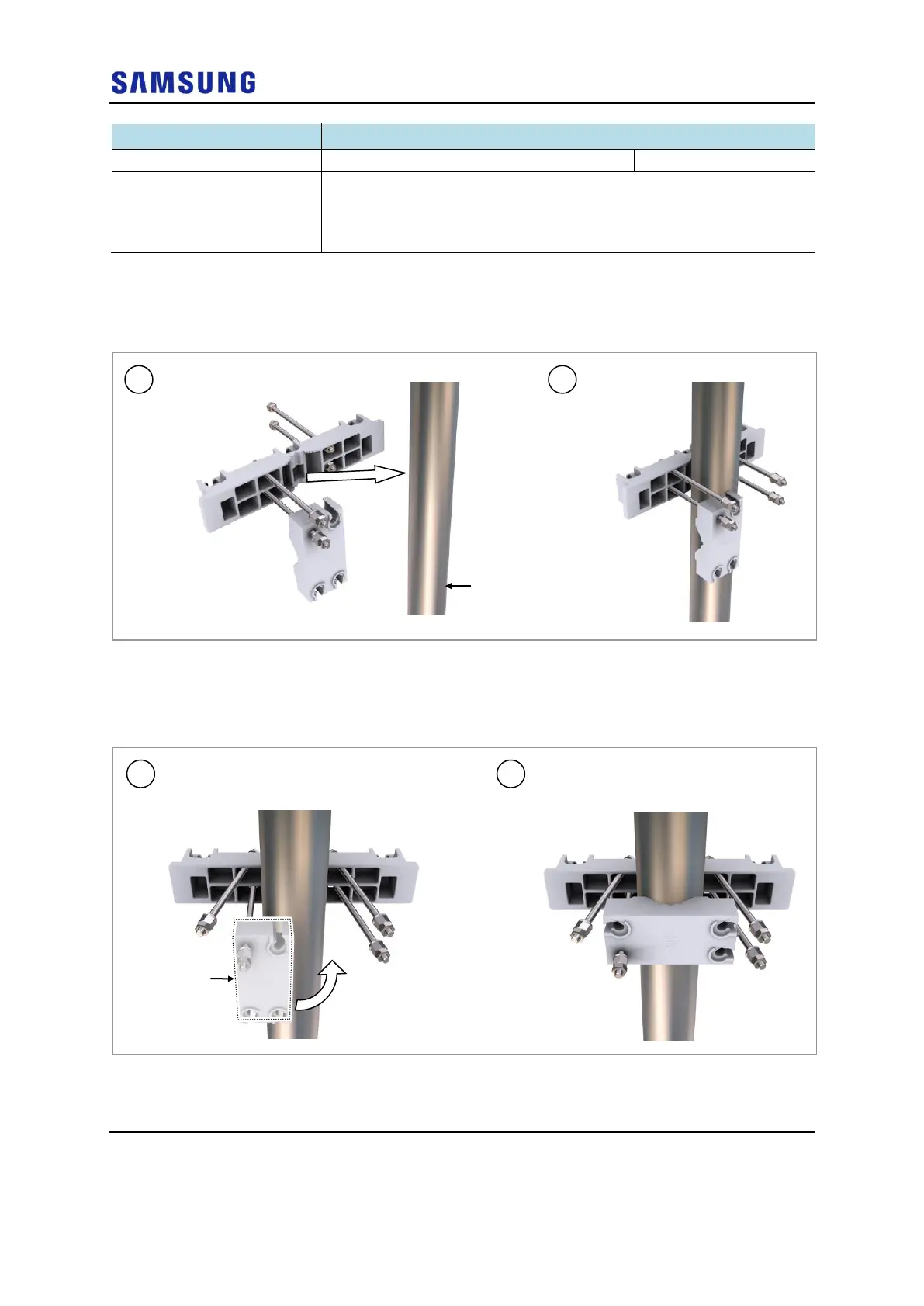

Figure 68. Fixing Side by Side Bracket Assembly_Pole Type (1)
2 Locate a rear mounting bracket on a fixing location with the “Up” mark
towards the upper side.
Figure 69. Fixing Side by Side Bracket Assembly_Pole Type (2)
3 Place the rest three stud bolts to the rear mounting bracket holes and fix the
stud bolts using the fasteners.
Rear Mounting
Bracket
1
2
Pole
1
2
