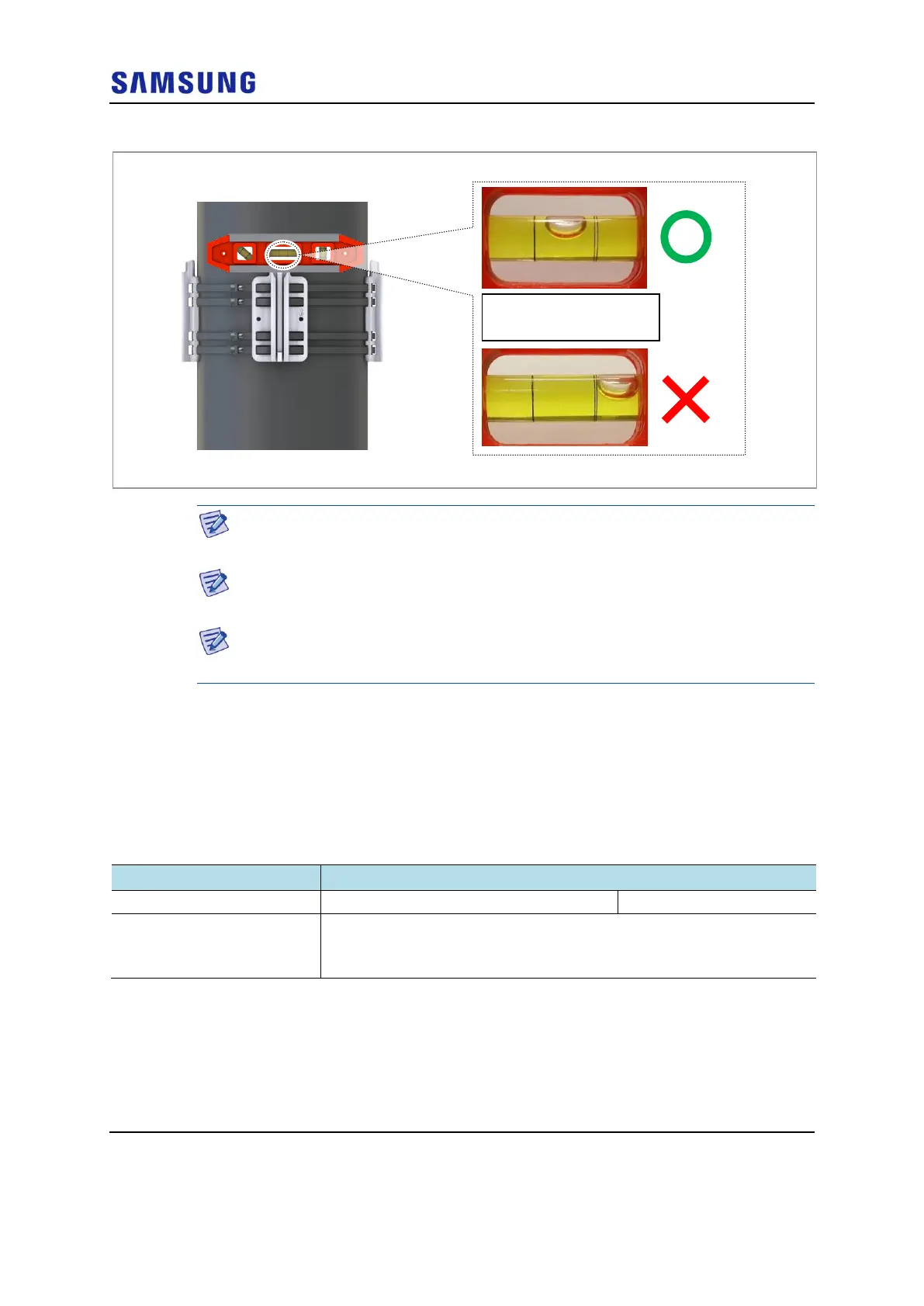

Figure 58. Fixing Mounting Bracket on the Pole (4)
When fixing the mounting bracket on the pole, ensure to check the level of bracket.
After finishing the installation, adjust the level minutely.
When poor leveling happens, adjust the position of fasteners to fix the mounting
bracket.
After fixing the steel band, push the remainder of band inside the mounting
bracket
Fixing RRUs on the Pole
To fix the RRH on the pole, do the following:
Prerequisites
Before proceeding with fixing the RRH on the pole, make sure that you have the
items mentioned in the table below:
Table 21. Tools for Fixing RRHs on the Pole
Category
Description
Recommended Torque Value
M6 Torx Screw
43 lbfin
Working Tools
 Torx Driver Bit (T30H)
 Torque Driver (20 to 90 lbf·in)
 Antenna Alignment Tool
1 Pull out the fastening materials so that they do not extend out from the fixing
groove of the unit bracket. Do not pull out completely.
If it is level, the bubble of the
spirit level is positioned at the
center of both lines.
