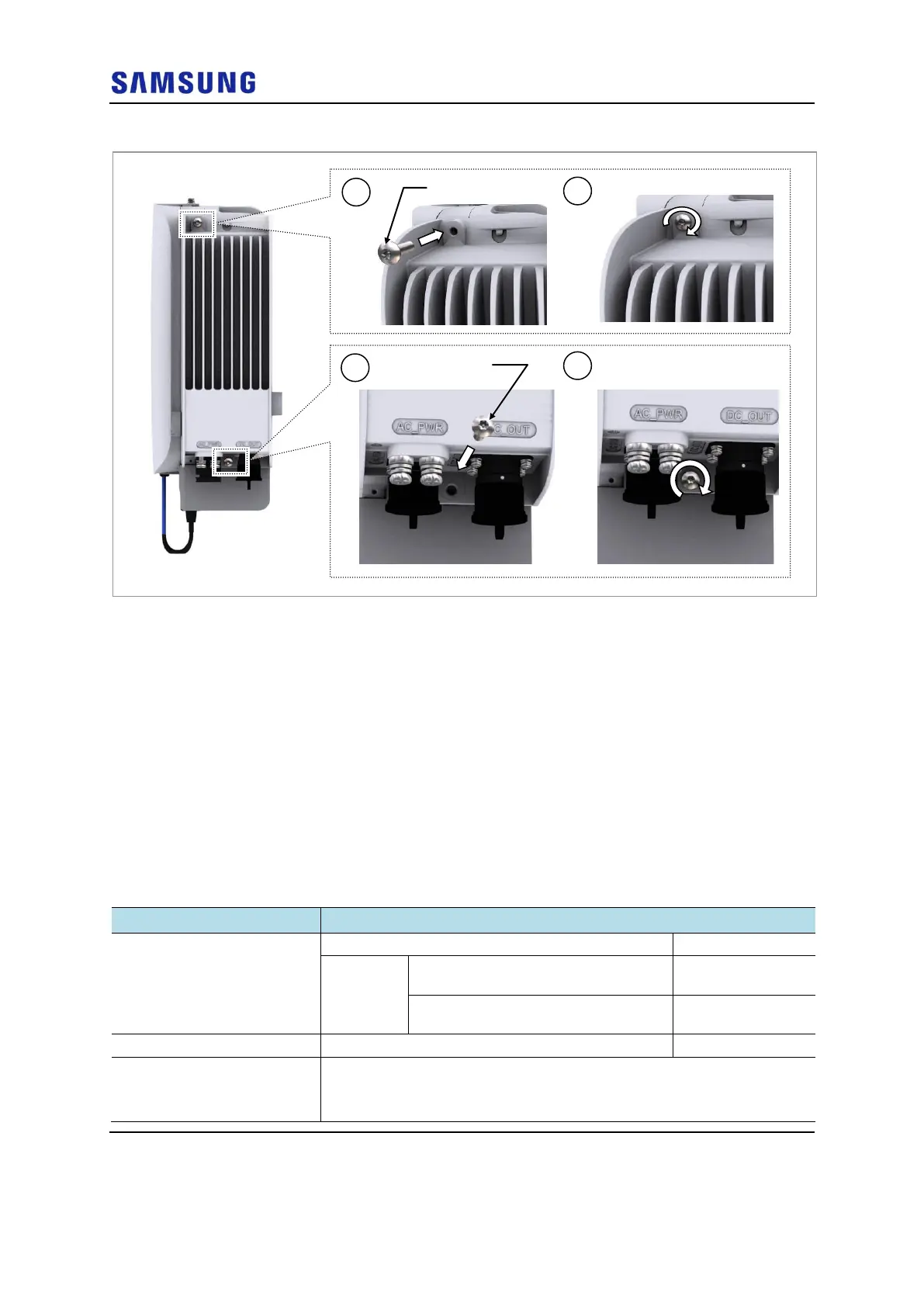

Figure 21. Assembling AC-DC Power Unit (2)
Using Tilting and Swiveling Bracket
This section describes the procedure to fix the unit bracket using the tilting and
swiveling bracket.
Fixing Unit Bracket
To fix the unit bracket, do the following:
Prerequisites
Before proceeding with fixing the unit bracket, make sure that you have the items
mentioned in the table below:
Table 6. Parts and Tools for Fixing Unit Bracket on RRH
Category
Description
Parts
Unit Bracket
1 EA/RRH
Fasteners
M6 × L20 hexagonal bolt (Washer
assembly)
4 EA/RRH
M8 × L30 hexagonal bolt (Washer
assembly)
1 EA/RRH
Recommended Torque Value
M6 hexagonal bolt
43 lbfin
Working Tools
 Torque Wrench (10 to 50 lbfin)
 Torque Wrench Spanner Head (apply hexagonal head: 10 mm)
 Spanner (apply hexagonal head: 13 mm)
M5 Torx Screw
2
4
M5 Torx Screw
1
3
