Chapter 2 Installing System
RT4401-48A Installation Manual v3.0 48
Copyright © 2019, All Rights Reserved.
according to the pole diameter.
Table 17. Parts and Tools for Fixing Mounting Bracket on the Pole
Category
Description
Parts
Mounting Bracket
3 EA
Fasteners
Steel Band
4 EA
Recommended Torque Value
Steel Band Fixing Screw
110 lbfin
Working Tools
 Torque Driver (20 to 90 lbfin)
 Screw Driver Bit ('+', No. 3)
 Antenna Alignment Tool
1 Pass the steel band through the fixing hole of the mounting brackets.

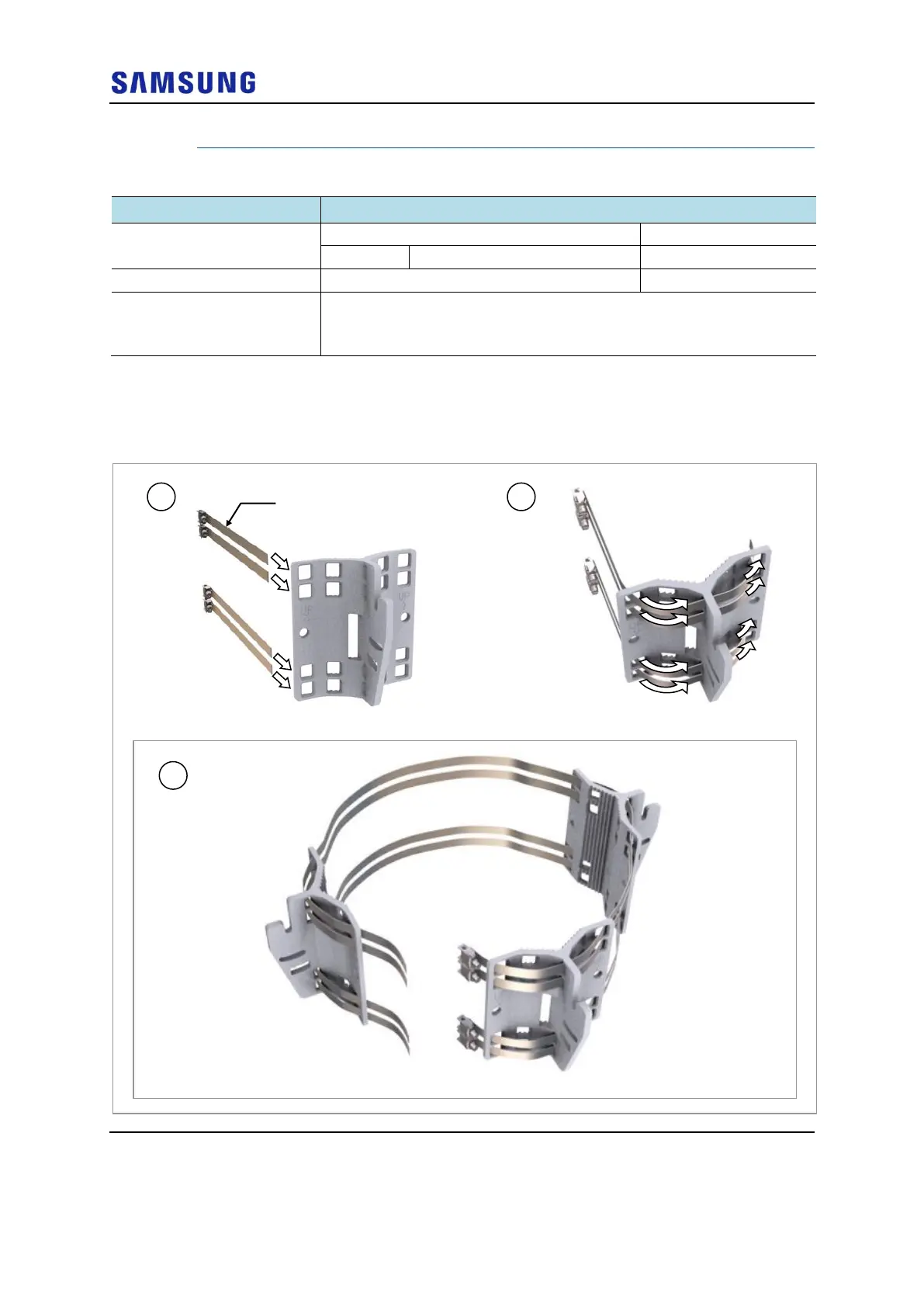

Figure 45. Fixing Mounting Bracket on the Pole (1)
1
2
Steel Band
Mounting Bracket-0
Mounting Bracket-0
Mounting Bracket-0
Mounting Bracket-1
Mounting Bracket-2
3
