Chapter 2 Installing System
RT4401-48A Installation Manual v3.0 62
Copyright © 2019, All Rights Reserved.
4 Fix the RRH-1 and RRH-2 in the same way as the RRH-0.

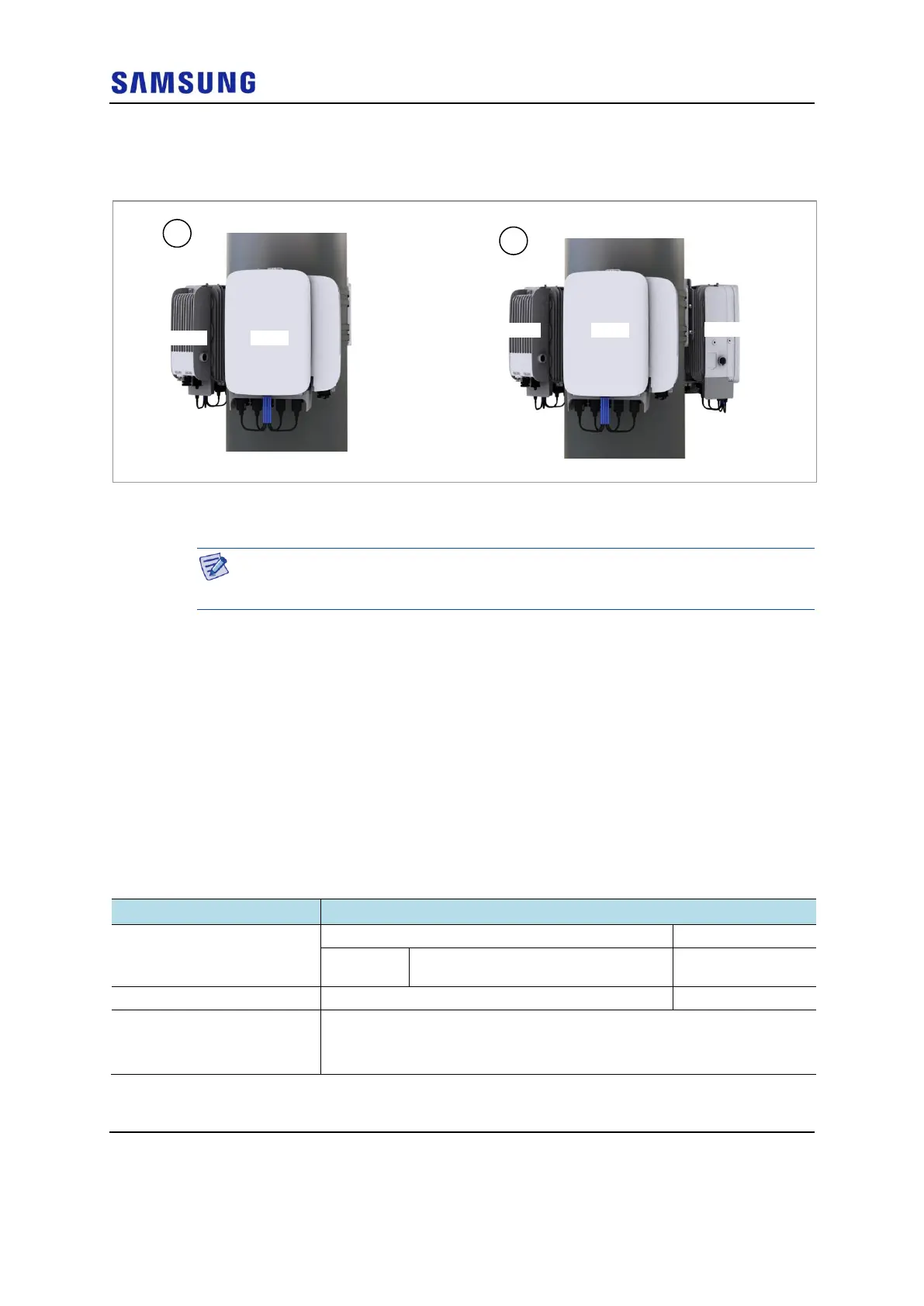

Figure 62. Fixing RRHs on the Pole (4)
5 Check the tilt and the azimuth using the RF alignment tool and adjust when
there is an issue.
For detailed instructions on how to use the RF alignment tool, refer to the user
manual per manufacturer.
Using Side by Side Bracket
This section describes the procedures to fix the side by side bracket.
Fixing Unit Bracket
To fix the unit bracket, do the following:
Prerequisites
Before proceeding with fixing the unit bracket, make sure that you have the items
mentioned in the table below:
Table 22. Parts and Tools for Fixing Unit Bracket on RRH
Category
Description
Parts
Unit Bracket
1 EA/RRH
Fasteners
M6 × L20 hexagonal. bolt (Washer
assembly)
4 EA/RRH
Recommended Torque Value
M6 hexagonal bolt
43 lbfin
Working Tools
 Torque Wrench (10 to 50 lbfin)
 Torque Wrench Spanner Head (apply hexagonal head: 10 mm)
 Spanner (apply hexagonal head: 13 mm)
RRH-1
RRH-0
RRH-2
1
2
RRH-1
RRH-0
