Chapter 2 Installing System
RT4401-48A Installation Manual v3.0 51
Copyright © 2019, All Rights Reserved.

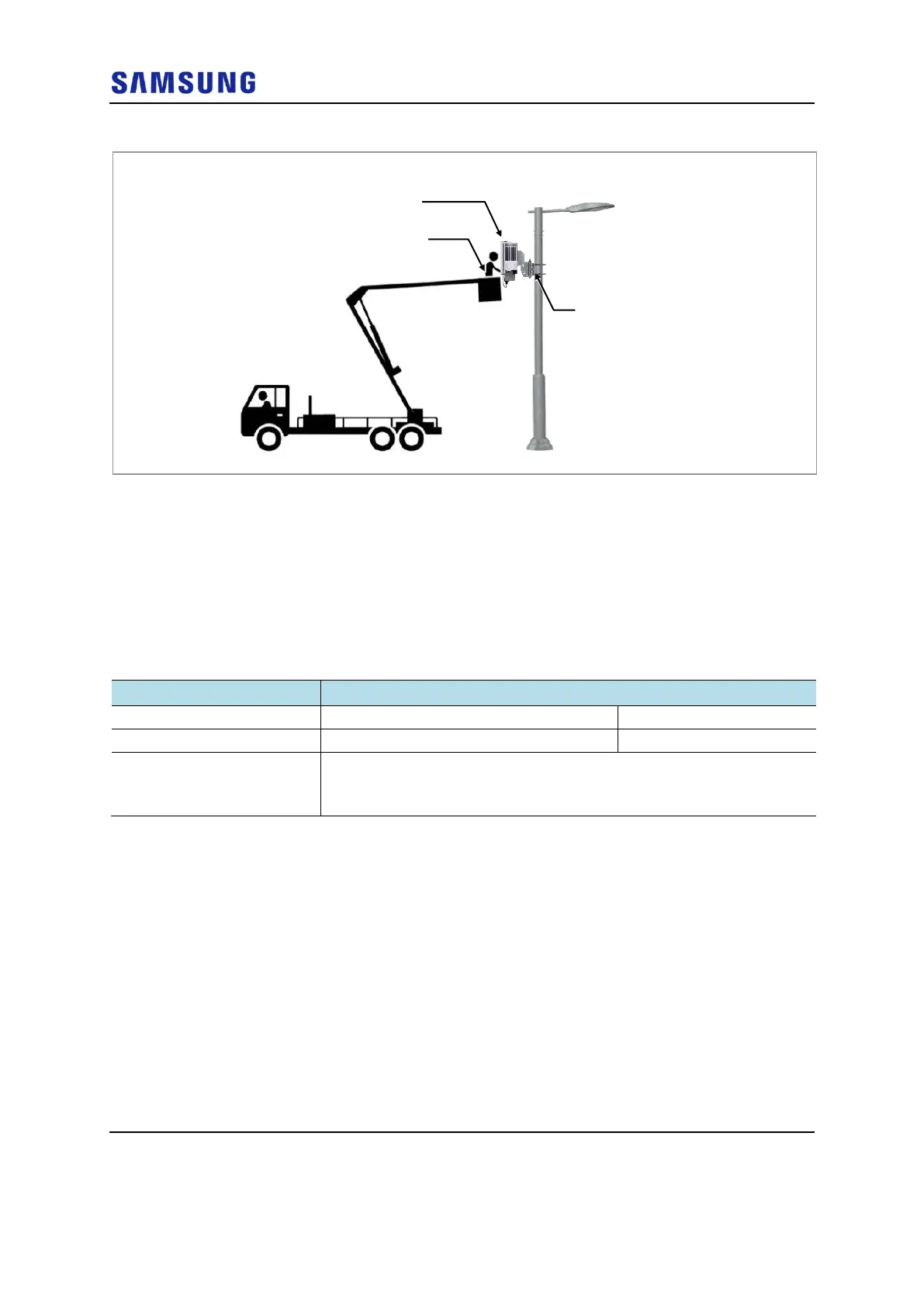

Figure 49. Lifting RRH
Fixing RRHs on the 3Sector Pole Type
To fix the RRH on the pole, do the following:
Prerequisites
Before proceeding with fixing the RRH on the pole, make sure that you have items
mentioned in the following table.
Table 18. Parts and Tools for Fixing RRH on the 3Sector Pole Type
Category
Description
Fasteners
M8 × L30 hexagonal bolt (Washer assembly)
1 EA/RRH
Recommended Torque Value
M8 hexagonal bolt
110 lbfin
Working Tools
 Torque Wrench (100 to 400 lbfin)
 Torque Wrench Spanner Head (apply Hex. head: 13 mm)
 Antenna Alignment Tool
1 Place the unit bracket of RRH-0 on the fixing groove of the mounting bracket.
RRH
Mounting Bracket
Cherry Picker
Operator
