Samsung RT4401-48A - Fixing RRH; Assembling Clip on Antenna; Figure 15. Assembling Clip on Antenna (1); Table 4. Parts and Tools for Assembling Clip on Antenna on RRH

Chapter 2 Installing System
RT4401-48A Installation Manual v3.0 20
Copyright © 2019, All Rights Reserved.
Fixing RRH
This section describes the procedures to fix the RRH with different methods.
Assembling Clip on Antenna
This section describes the procedure to fix the clip on antenna on the RRH.
Assembling Clip on Antenna
To fix the clip on antenna, do the following:
Prerequisites
Before proceeding with assembling the clip on antenna, make sure that you have
the items mentioned in the table below.
Table 4. Parts and Tools for Assembling Clip on Antenna on RRH
Category
Description
Parts
Clip on Antenna
1 EA
Fasteners
M4 × L10 Torx Screw
4 EA
Recommended Torque Value
M4 Torx Screw
13 lbfin
4.3-10 (Plus) Male Connector
44 lbfin
Working Tools
 Torque Wrench (10 to 50 lbf·in)
 Torque Driver (6 to 22 lbf·in)
 Screw Driver Bit (T20H)
 Torque Wrench Spanner Head (apply Hex. head: 22 mm)
1 Check the position for mounting the clip on antenna on the front of the RRH
and place it in that position.

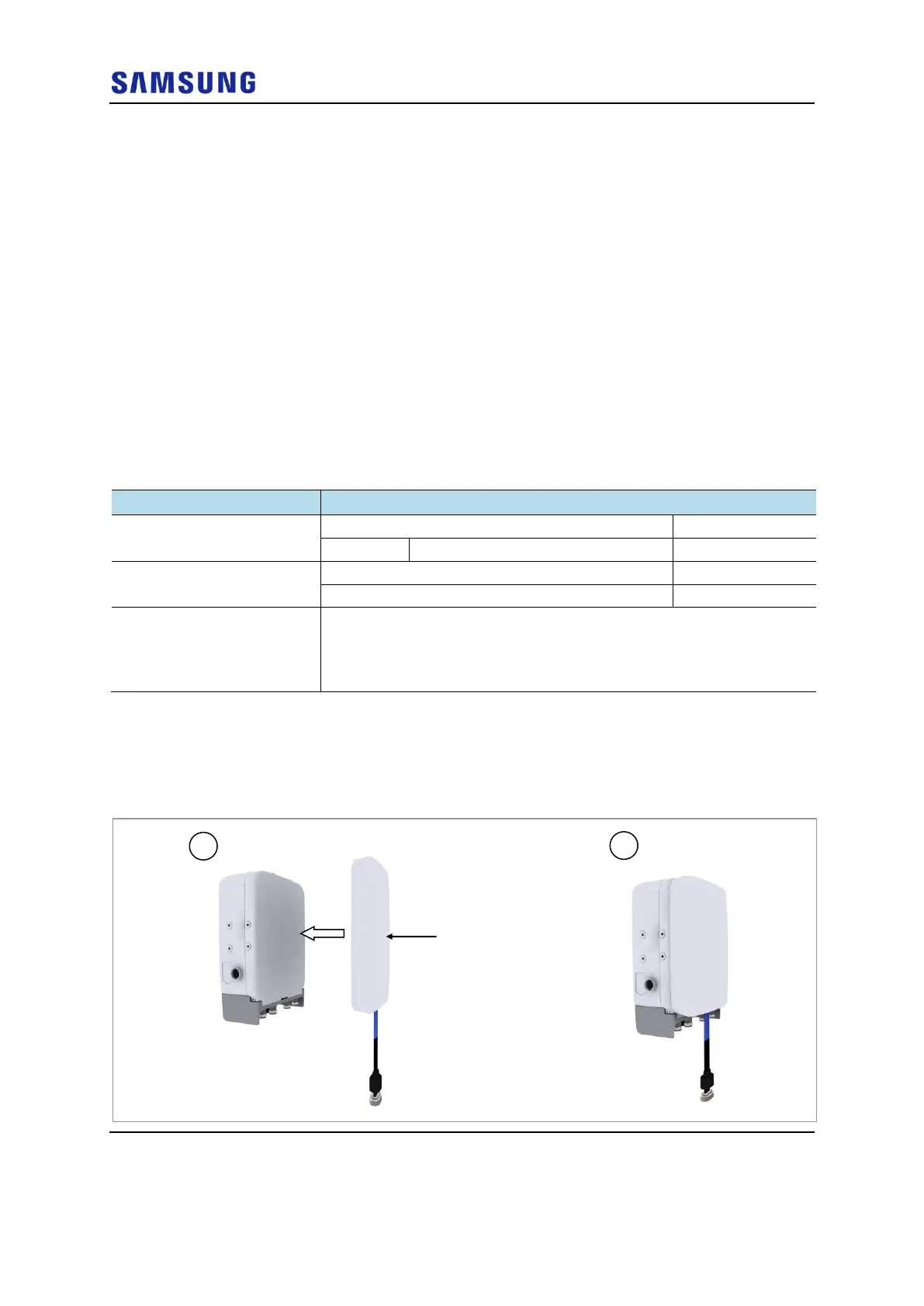

Figure 15. Assembling Clip on Antenna (1)
Clip on Antenna
1
2
