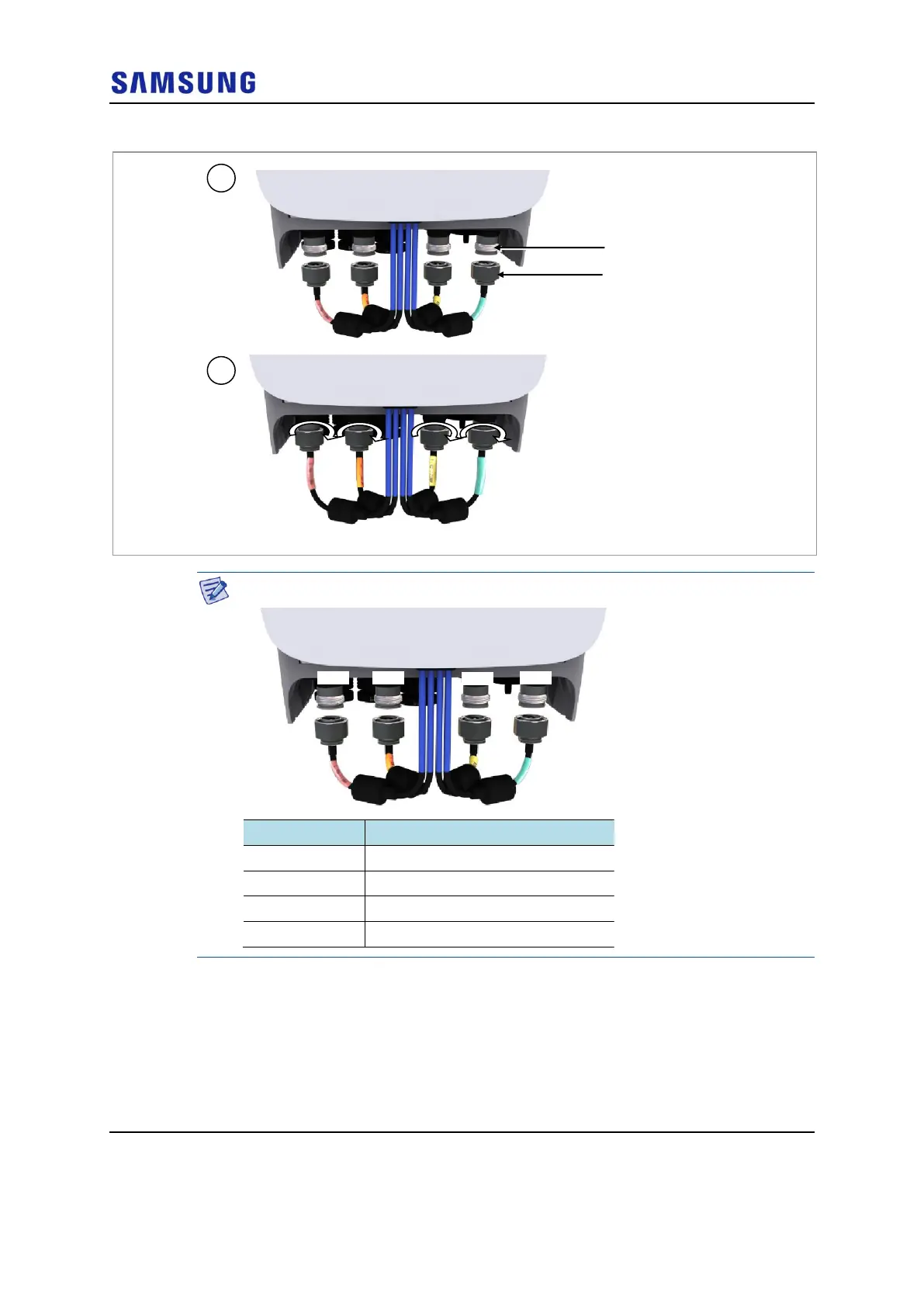

Figure 18. Assembling Clip on Antenna (4)
When connecting the RF cable, check the color of the tags on the side of RF cable.
5 Push weatherproof boots up to the port seal.
RF Port
Tag Color
ANT1
RED
ANT2
Orange
ANT3
Yellow
ANT4
Aqua blue
ANT1
ANT2
ANT3
ANT4
1
2
ANT Port
4.3-10 (Plus) Male Connector
