Chapter 2 Installing System
RT4401-48A Installation Manual v3.0 55
Copyright © 2019, All Rights Reserved.

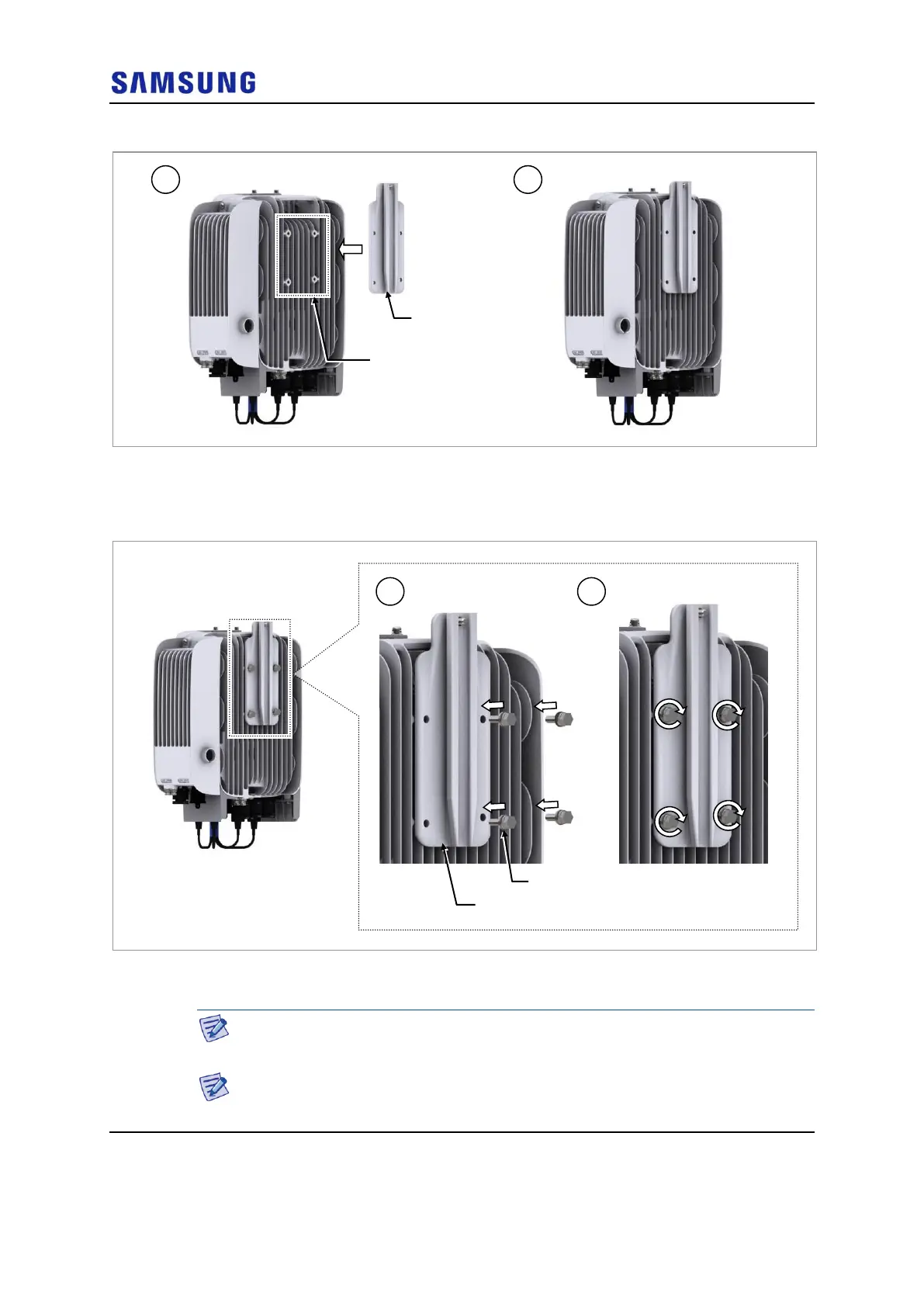

Figure 53. Fixing Unit Bracket (1)
2 Fix the unit bracket using the fasteners.
Figure 54. Fixing Unit Bracket (2)
Fixing Pole Type
Three RRHs can be installed when the pole diameter is than 8 in. (200 A, 220 mm)
to 12 in. (300 A, 320 mm).
The length of the steel band is 930 mm, 1160 mm, and 1330 mm, and it is used
1
2
Unit Bracket
M6 Hex. Bolt (Washer Assembly)
Unit Bracket
Fixing Point
1
2
Unit Bracket
