Ch
apter 2 Installing System
RT4401-
48A
Installation Manual v3.0
22
Copyright ©
2019, All Rights Reserved.

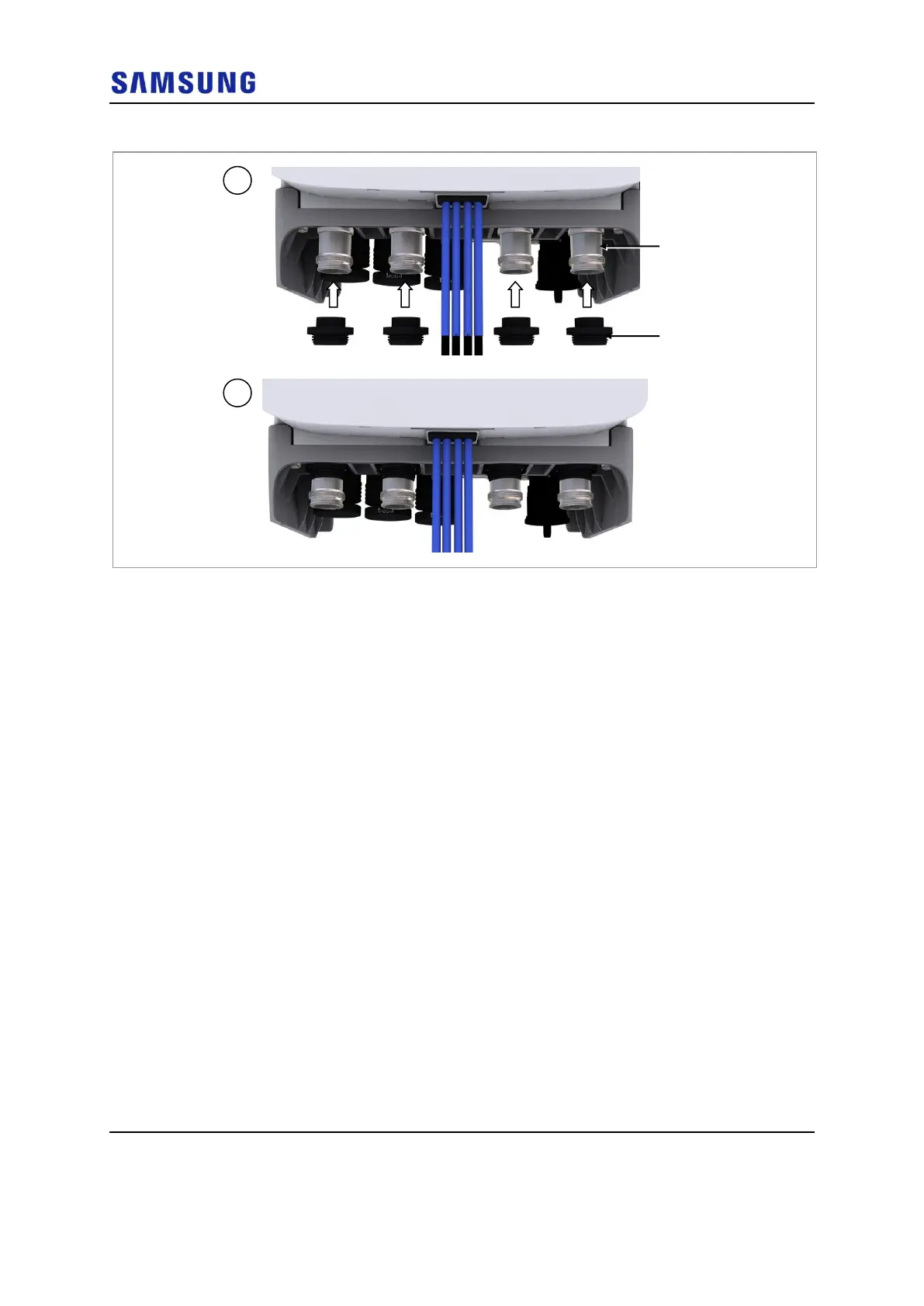

Figure 17. Assembling Clip on Antenna (3)
4
Connect the
RF
connec
tor of clip on antenn
a
to
the RRH
ANT 1, 2, 3, 4 port.
1
2
ANT Port
Port Seal
37
39
