Samsung RT4401-48A - Figure 37. Fixing RRH on the Wall (1); Table 13. Parts and Tools for Fixing RRH on the Wall

Chapter 2 Installing System
RT4401-48A Installation Manual v3.0 39
Copyright © 2019, All Rights Reserved.
Table 13. Parts and Tools for Fixing RRH on the Wall
Category
Description
Fasteners
M8 × L30 hexagonal bolt (Washer assembly)
1 EA
Recommended Torque Value
M8 hexagonal. bolt
110 lbfin
Working Tools
 Torque Wrench (100 to 400 lbfin)
 Torque Wrench Spanner Head (apply Hex. head: 13 mm)
 RF Alignment Tool
1 Place the unit brack7et on the fixing groove of the mounting bracket.

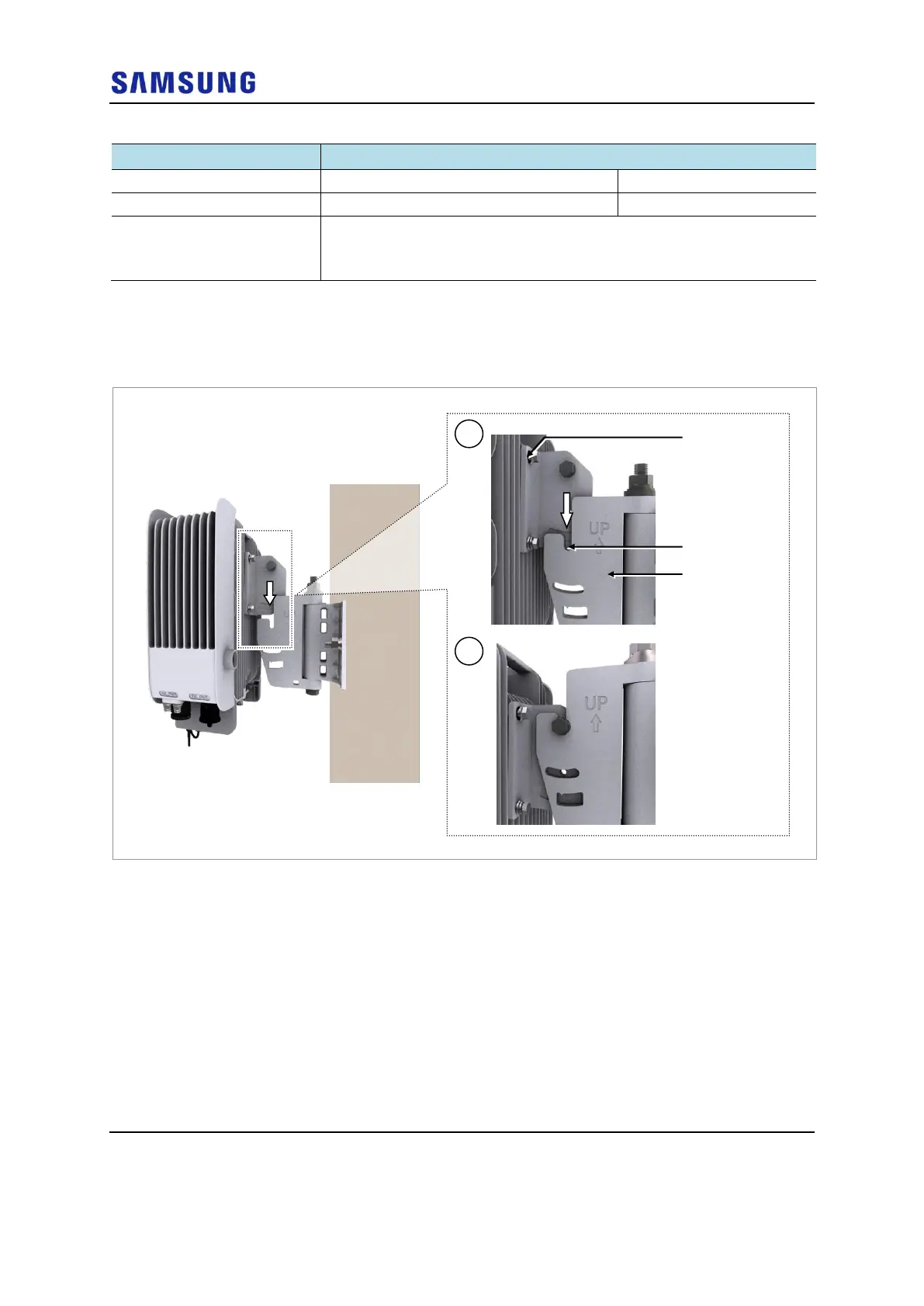

Figure 37. Fixing RRH on the Wall (1)
2 Fix the RRH using the fasteners.
Mounting Bracket
Fixing Groove
Unit Bracket
1
2
