Chapter 2 Installing System
RT4401-48A Installation Manual v3.0 43
Copyright © 2019, All Rights Reserved.

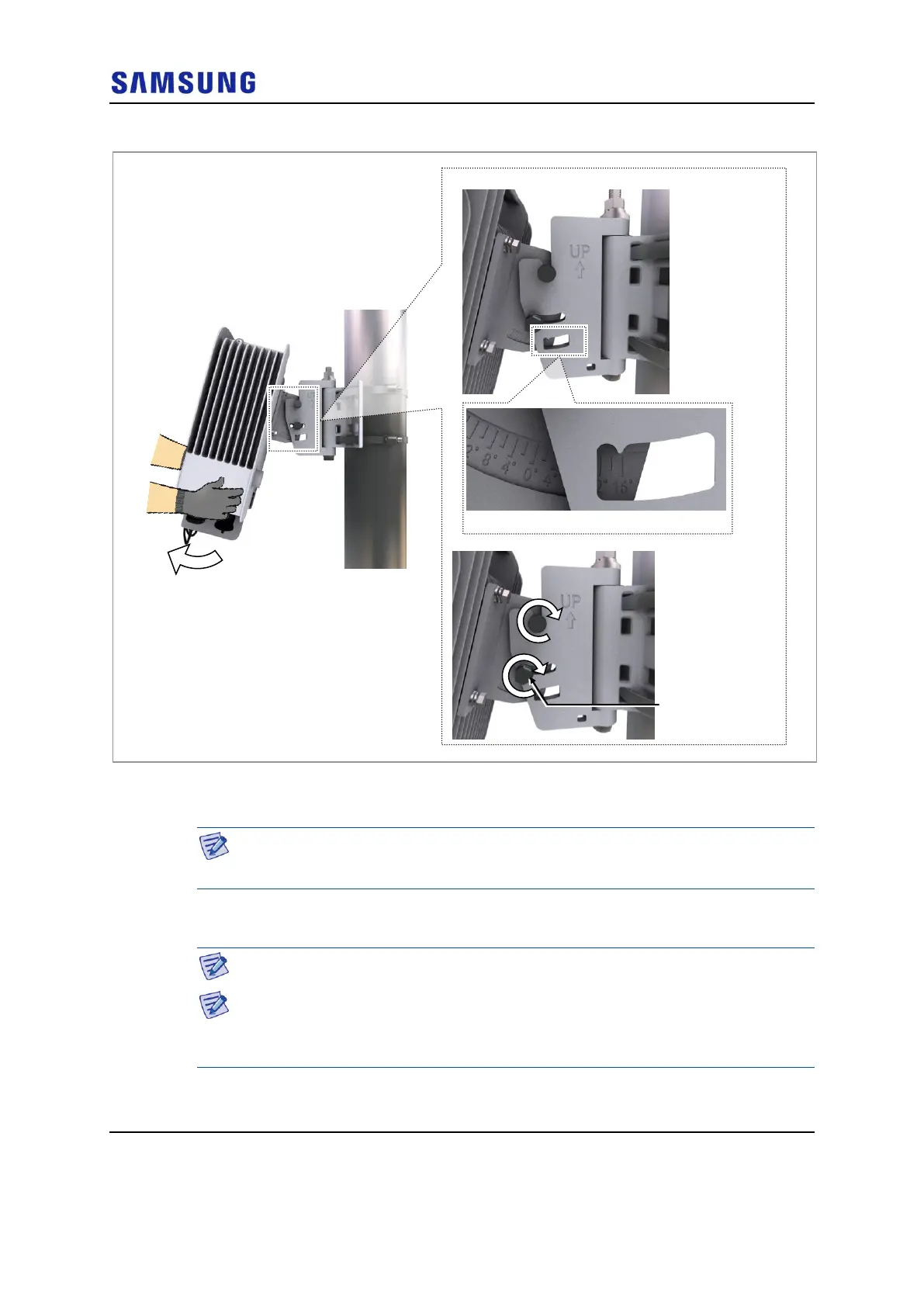

Figure 41. RRH Tilting Adjustment (3)
4 Check the tilt and the azimuth using the RF alignment tool and adjust when
there is an issue.
For detailed instructions on how to use the RF alignment tool, refer to the user
manual per manufacturer.
Swiveling
The instructions for swiveling the RRH apply to all installation types.
The adjustable swivelling is as follows:
- Left Swivelling: 0° to 30°
- Right Swivelling: 0° to 30°
To adjust the RRH swivelling, do the following
M8 Hex. Bolt
(Washer Assembly)
To Next Page
