Chapter 2 Installing System
RT4401-48A Installation Manual v3.0 44
Copyright © 2019, All Rights Reserved.
Prerequisites
Before proceeding with swivelling the RRH, make sure that you have the items
mentioned in the table below:
Table 15. Tools for Swiveling RRH
Category
Description
Recommended Torque Value
M12 hexagonal nut
372 lbfin
Working Tools
 Torque Wrench (100 to 400 lbfin)
 Torque Wrench Spanner Head (apply Hex. head: 19 mm)
 Spanner (19 mm)
 RF Alignment Tool
1 Loosen the RRH by turning M12 hexagonal nut of mounting bracket two or
three times counter clockwise.
Do not separate it completely.

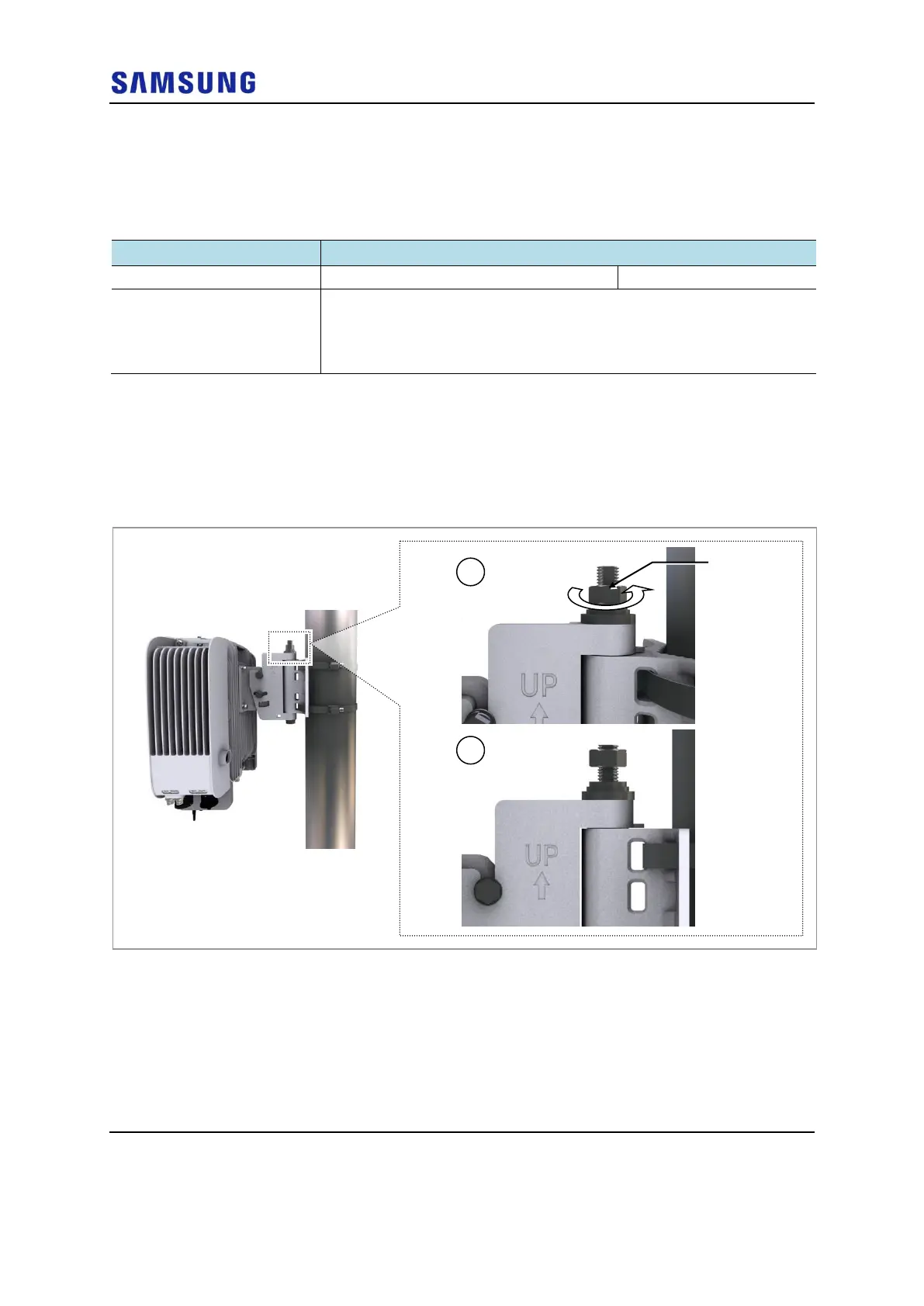

Figure 42. RRH Swivelling Adjustment (1)
2 Pull the RRH left/right to adjust the swivelling angle.
M12 Hex. Nut
1
2
