Chapter 2 Installing System
RT4401-48A Installation Manual v3.0 63
Copyright © 2019, All Rights Reserved.

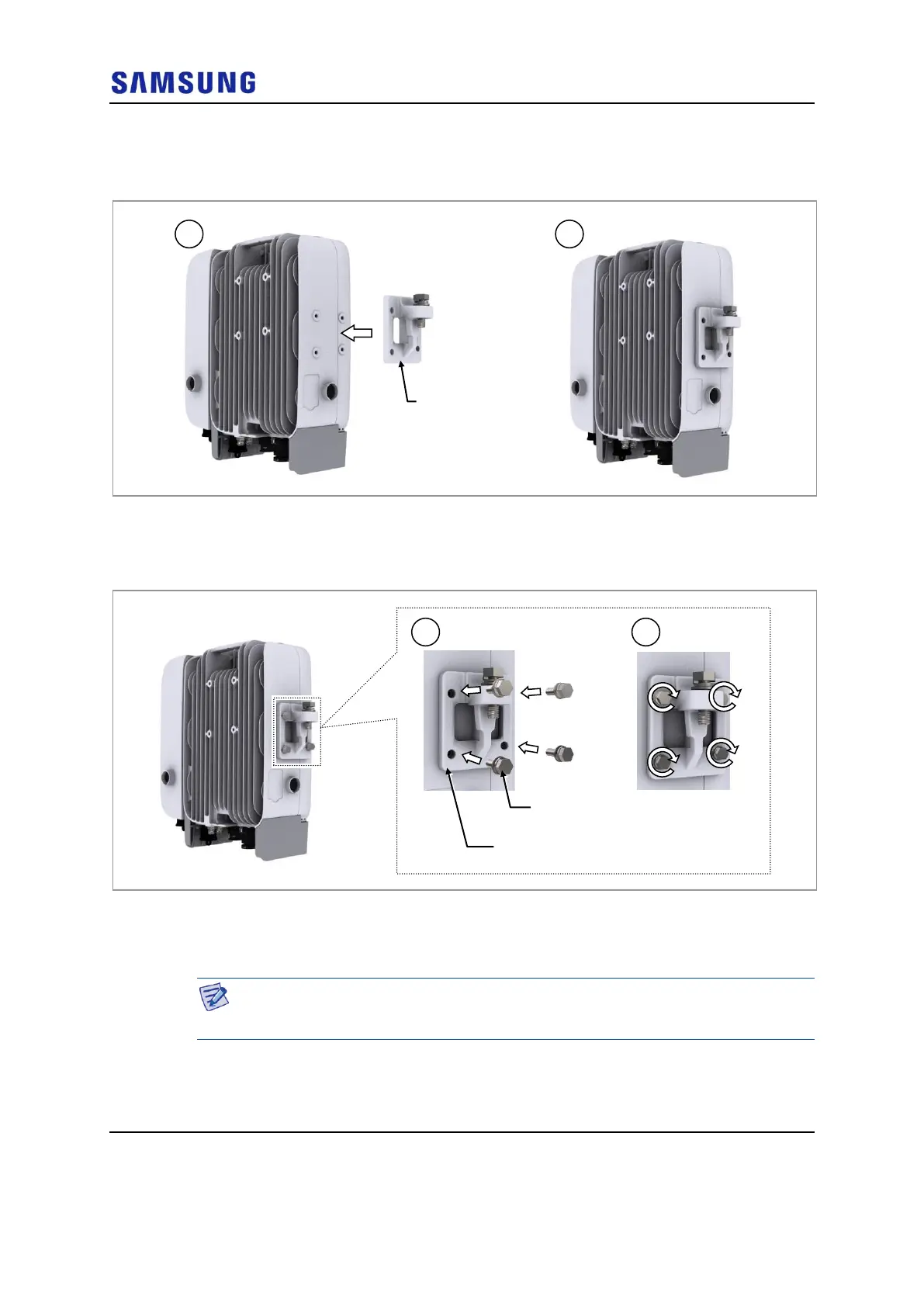

1 Place the unit bracket to the RRH left.
Figure 63. Fixing Unit Bracket_Side Installation (1)
2 Fix the unit bracket using the fasteners.
Figure 64. Fixing Unit Bracket_Side Installation (2)
Fixing Pole Type_Side by Side
This section describes the procedures for fixing the system on the pole.
The standard of the pole on which the mounting bracket can be attached using
steel bands is 50 A to 100 A.
Assembling Mounting Bracket
To assemble the mounting bracket for 1 sector, do the following:
1
2
Unit Bracket
M6 Hex. Bolt
(Washer Assembly)
1
2
Unit Bracket
