Samsung RT4401-48A - Fixing Wall Mounting

Chapter 2 Installing System
RT4401-48A Installation Manual v3.0 18
Copyright © 2019, All Rights Reserved.

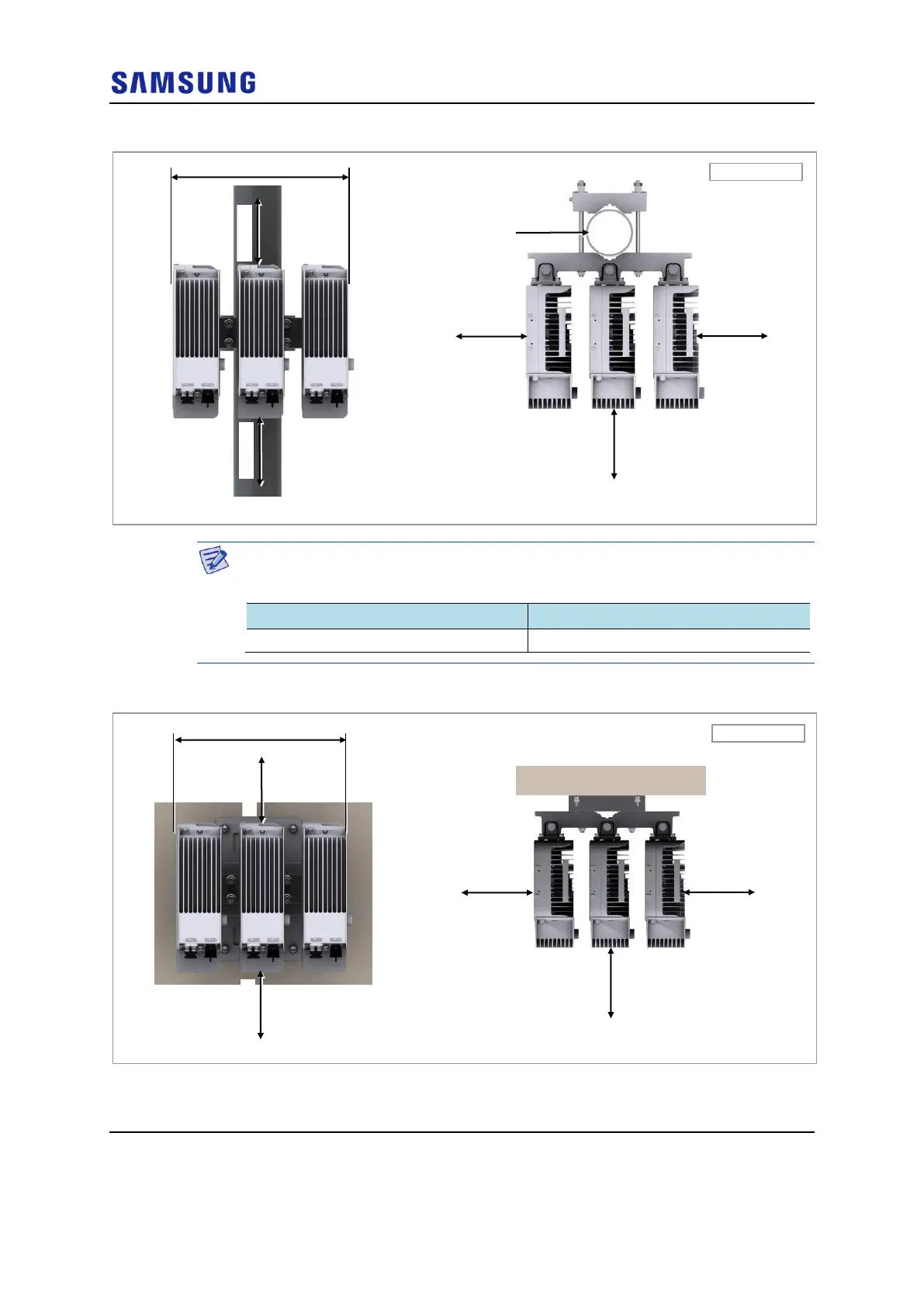

Figure 13. RRH Arrangement_3 Sector Pole Type Side by Side Installation
When fixing a mounting bracket, the length of stud bolts are 8.7 in. (220 mm) for
the pole diameter of 50 to100 A.
Figure 14. RRH Arrangement_3 Sector Wall Type Side by Side Installation
Unit: in. (mm)
[Front View]
≥ 12 (300)
≥ 12 (300)
15.75 (400)
[Top View]
≥ 32 (800)
≥ 32 (800)
≥ 32 (800)
Pole Size (Diameter)
Length of Stud Bolt
50 A to 100 A
8.7 in. (220 mm)
Unit: in. (mm)
[Front View]
≥ 12 (300)
≥ 12 (300)
15.75 (400)
[Top View]
≥ 32 (800)
≥ 32 (800)
Pole
(Ф 4.5 in./114.3 mm)
≥ 32 (800)
