Samsung RT4401-48A - Figure 9. RRH Arrangement_Swivelling

Chapter 2 Installing System
RT4401-48A Installation Manual v3.0 15
Copyright © 2019, All Rights Reserved.
The dimensions of the RRH change according to the tilt angle, and the maximum
dimensions are described in the figure above (RRH Arrangement_Down, Up
Tilting 15°).

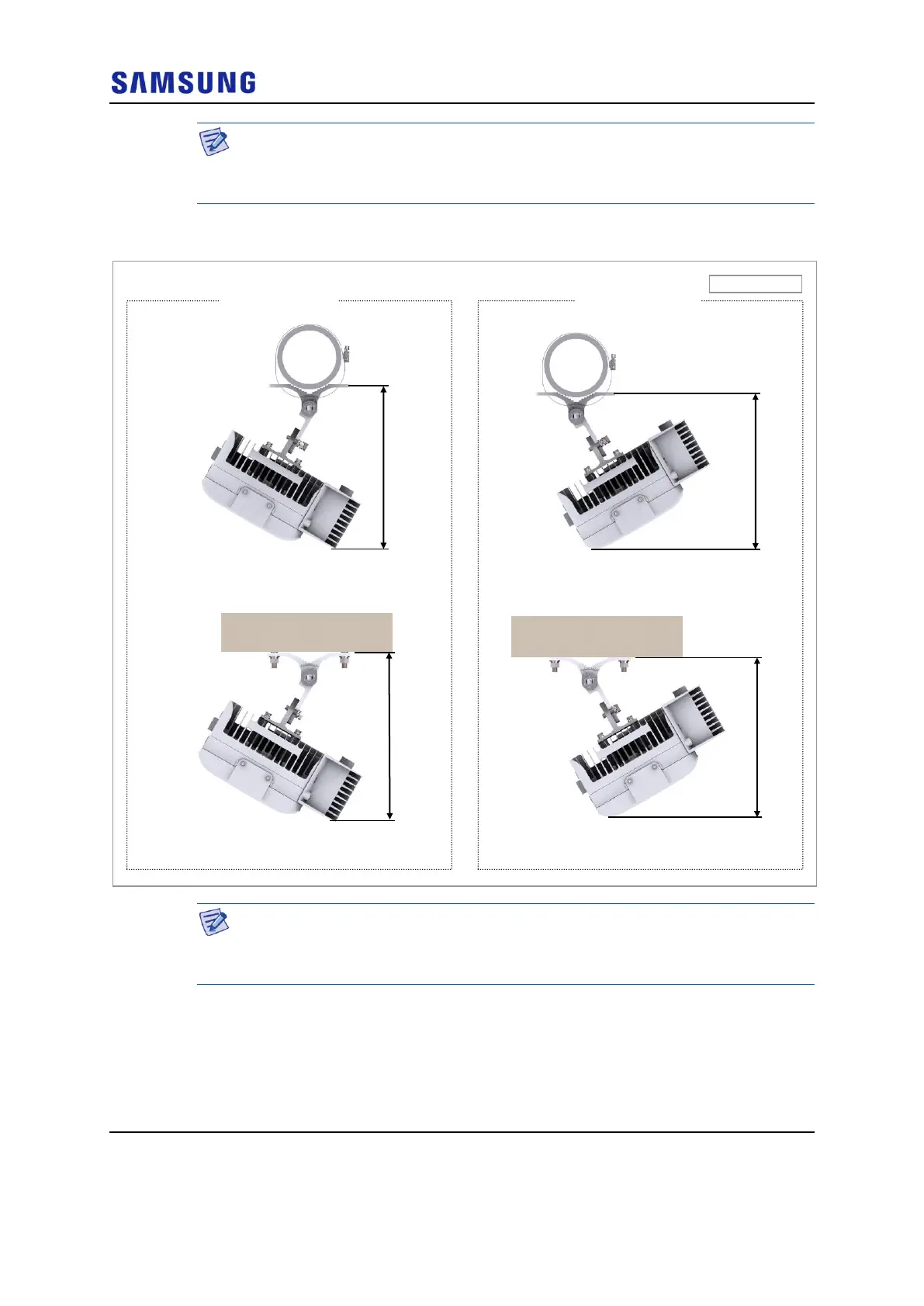

Figure 9. RRH Arrangement_Swivelling
The dimensions of the front of the RRH change according to the tilt angle, and the
maximum dimensions are described in the figure above. (RRH Arrangement_Left,
Right Swivelling 30°).
Unit: in. (mm)
[Left Swivelling 30°]
[Right Swivelling 30°]
12.1 (307)
12.5 (317)
[Pole Type]
11.4 (290)
11.8 (300)
[Wall Type]
[Wall Type]
[Pole Type]
