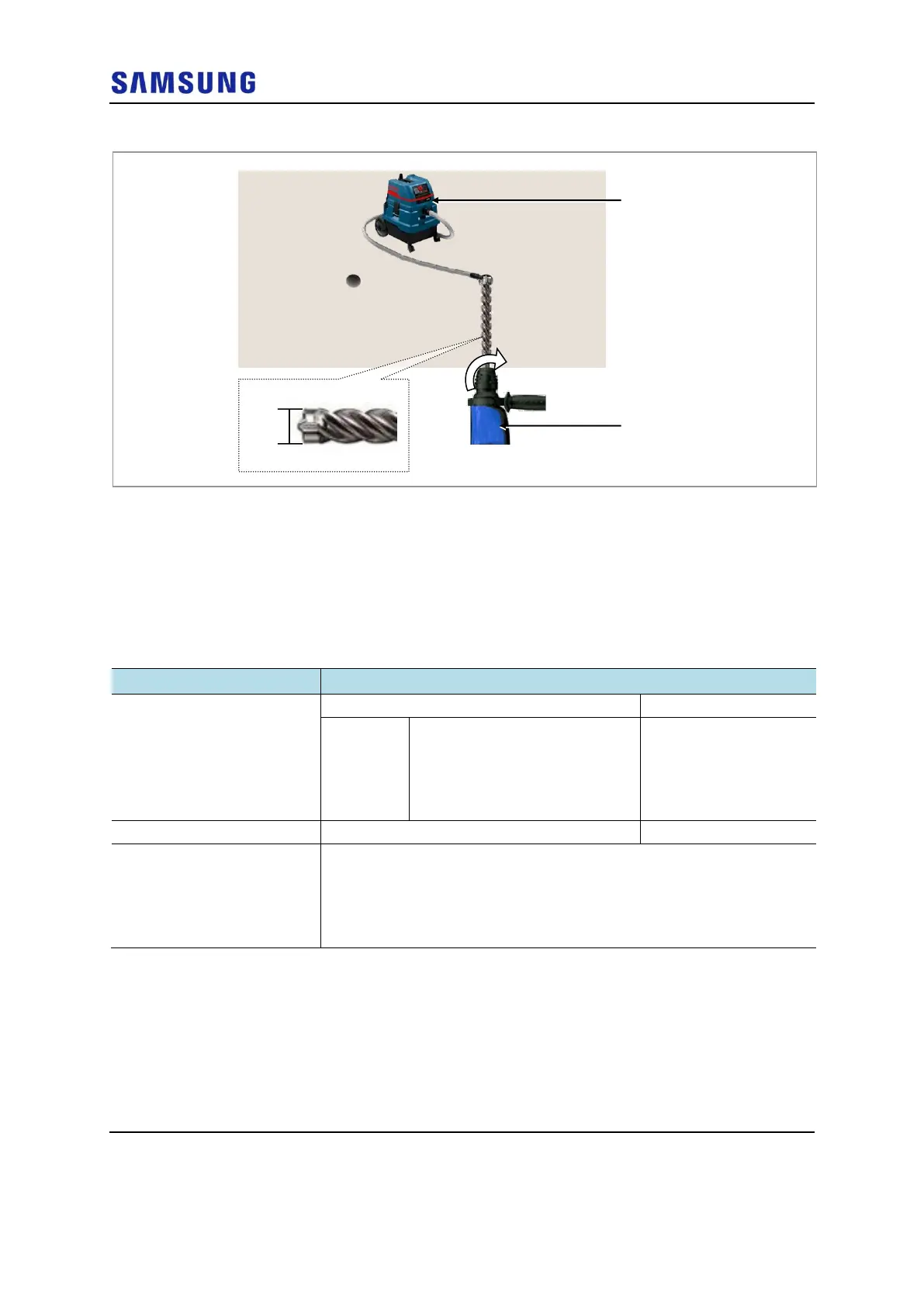

Figure 34. Drilling
Fixing Mounting Bracket on the Wall
To fix the mounting bracket on the wall, do the following:
Prerequisites
Before proceeding with fixing the mounting bracket for 1-sector on the wall, make
sure that you have the items mentioned in the table below:
Table 12. Parts and Tools for Fixing Mounting Bracket on the Wall
Category
Description
Parts
Mounting Bracket
1 EA
Fasteners
M10 Set Anchor Assembly
 M10 Set Anchor
 M10 Plain Washer
 M10 Spring Washer
 M10 Hexagonal. Nut
2 Set
1 EA/set
1 EA/set
1 EA/set
1 EA/set
Recommended Torque Value
M10 Hexagonal Nut
217 lbfin
Working Tools
 Torque Wrench (100 to 400 lbf·in)
 Torque Wrench Spanner head (apply Hex. head: 17 mm)
 Spanner (17 mm)
 Hammer
 Anchor Punch (for M10 set anchor bolt)
1 Fix the anchor to the drilled hole.
0.6 in.
(14 mm)
Hammer Drill
Vacuum Cleaner
