Chapter 2 Installing System
RT4401-48A Installation Manual v3.0 41
Copyright © 2019, All Rights Reserved.
Table 14. Tools for Tilting RRH
Category
Description
Recommended Torque Value
M8 hexagonal bolt
110 lbfin
Working Tools
 Torque Wrench (100 to 400 lbfin)
 Torque Wrench Spanner Head (apply hexagonal. head: 13 mm)
 Spanner (13 mm)
 RF Alignment Tool
1 Loosen the RRH by turning M8 hexagonal bolt of mounting bracket two or
three times counterclockwise. Do not separate it completely.

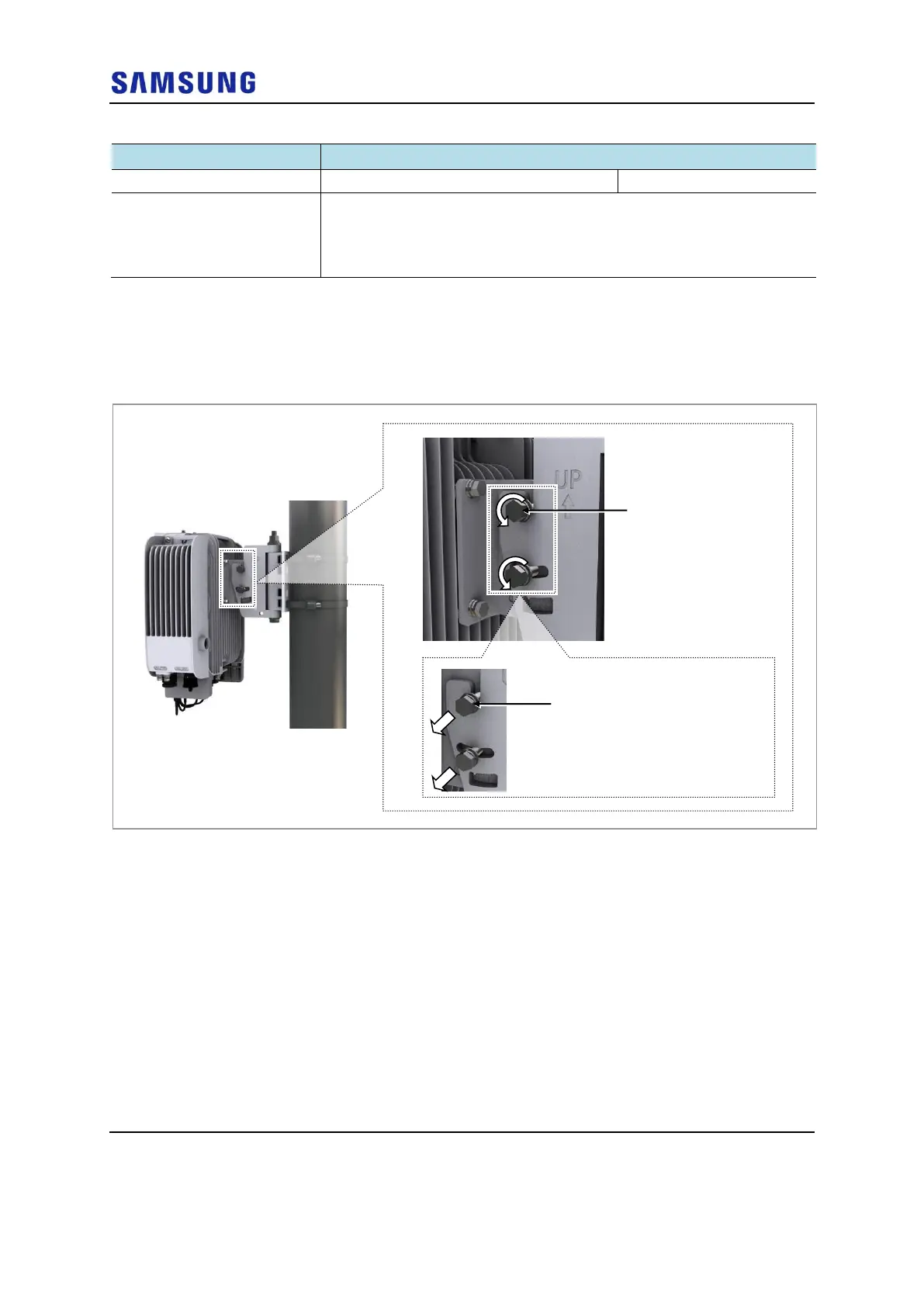

Figure 39. RRH Tilting Adjustment (1)
2 Push the RRH down to adjust the tilting angle and fix the RRH using the
working tools.
M8 Hex. Bolt
(Washer Assembly)
M8 Hex. Bolt
(Washer Assembly)
※ Do not separate it completely.
