Samsung RT4401-48A - Figure 35. Fixing Mounting Bracket on the Wall (1); Figure 36. Fixing Mounting Bracket on the Wall (2)

Chapter 2 Installing System
RT4401-48A Installation Manual v3.0 38
Copyright © 2019, All Rights Reserved.

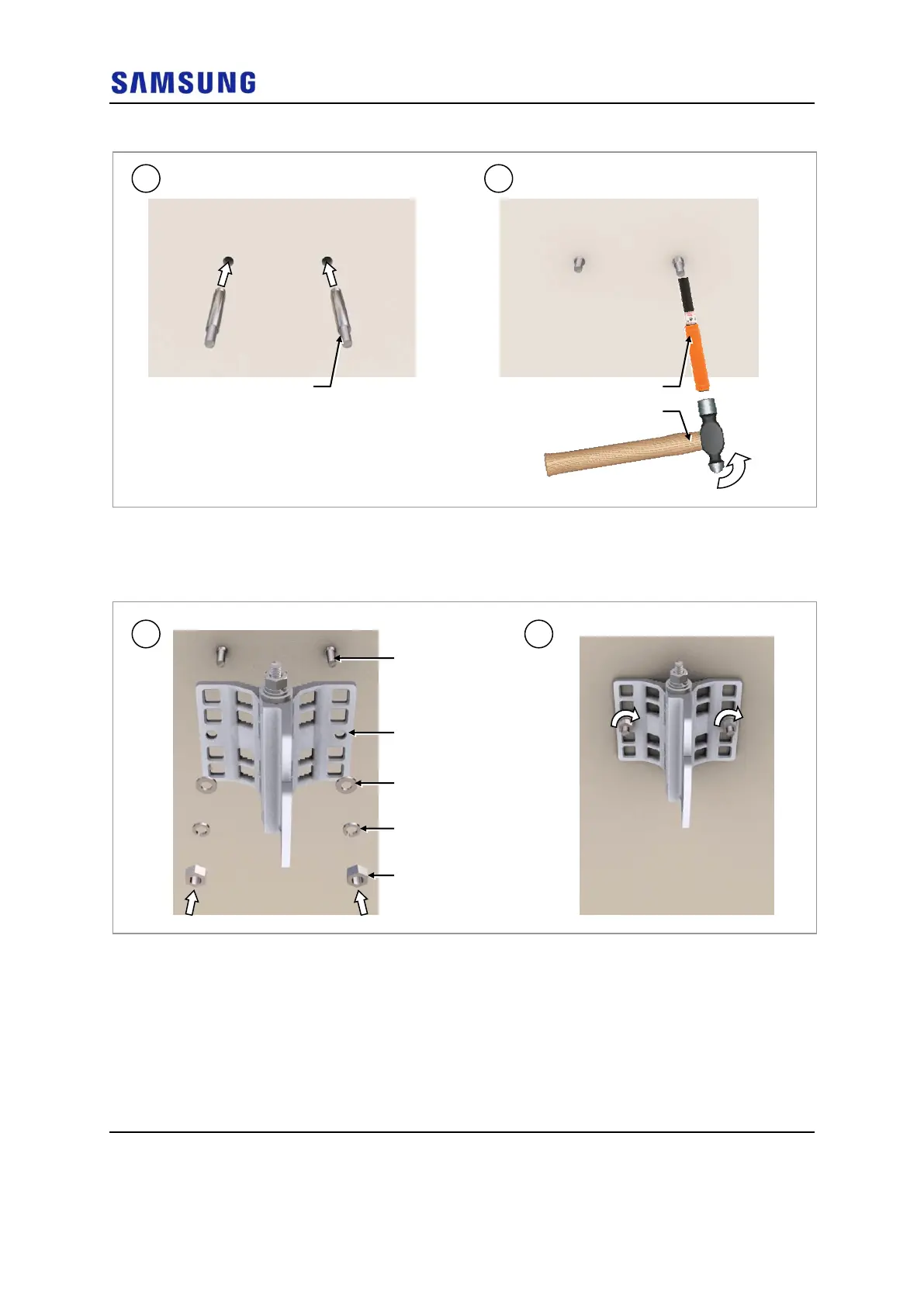

Figure 35. Fixing Mounting Bracket on the Wall (1)
2 Place the mounting bracket on the wall and fix it using the fasteners.
Figure 36. Fixing Mounting Bracket on the Wall (2)
Fixing RRH on the Wall
To fix the RRH on the wall, do the following:
Prerequisites
Before proceeding with fixing the RRH on the wall, make sure that you have the
items mentioned in the table below:
M10 Set Anchor
Mounting Bracket
M10 Plain Washer
M10 Spring Washer
M10 Hex. Nut
1
2
M10 Set Anchor
Anchor Punch
Hammer
1
2
