Chapter 2 Installing System
RT4401-48A Installation Manual v3.0 16
Copyright © 2019, All Rights Reserved.
Using Tilting Bracket
The figures below depict the recommended distances for each direction of the
RRH using the tilting bracket for the pole type installation.

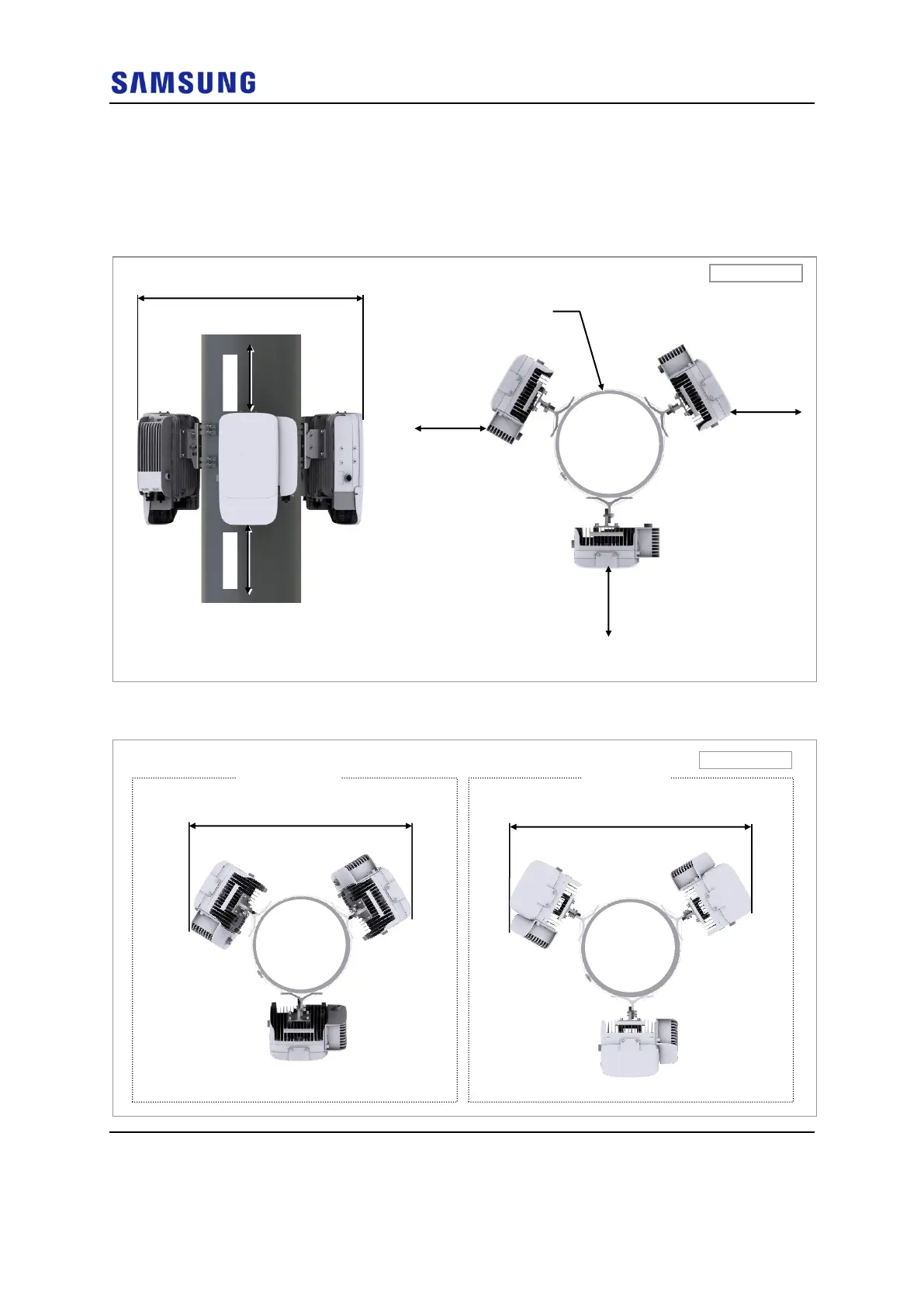

Figure 10. RRH Arrangement_3 Sector Pole Type Installation
Figure 11. RRH Arrangement_3 Sector Tilting
Unit: in. (mm)
[Down Tilting 15°]
[Up Tilting 15°]
27.7 (704)
30.9 (786)
※ Example for 200 A pole
※ Example for 200 A pole
[Top View]
[Top View]
Unit: in. (mm)
[Front View]
≥ 12 (300)
≥ 12 (300)
15.6 (695)
[Top View]
≥ 32 (800)
≥ 32 (800)
≥ 32 (800)
Pole
(Ф 8.7 in./220 mm)
※ Example for 200 A pole
