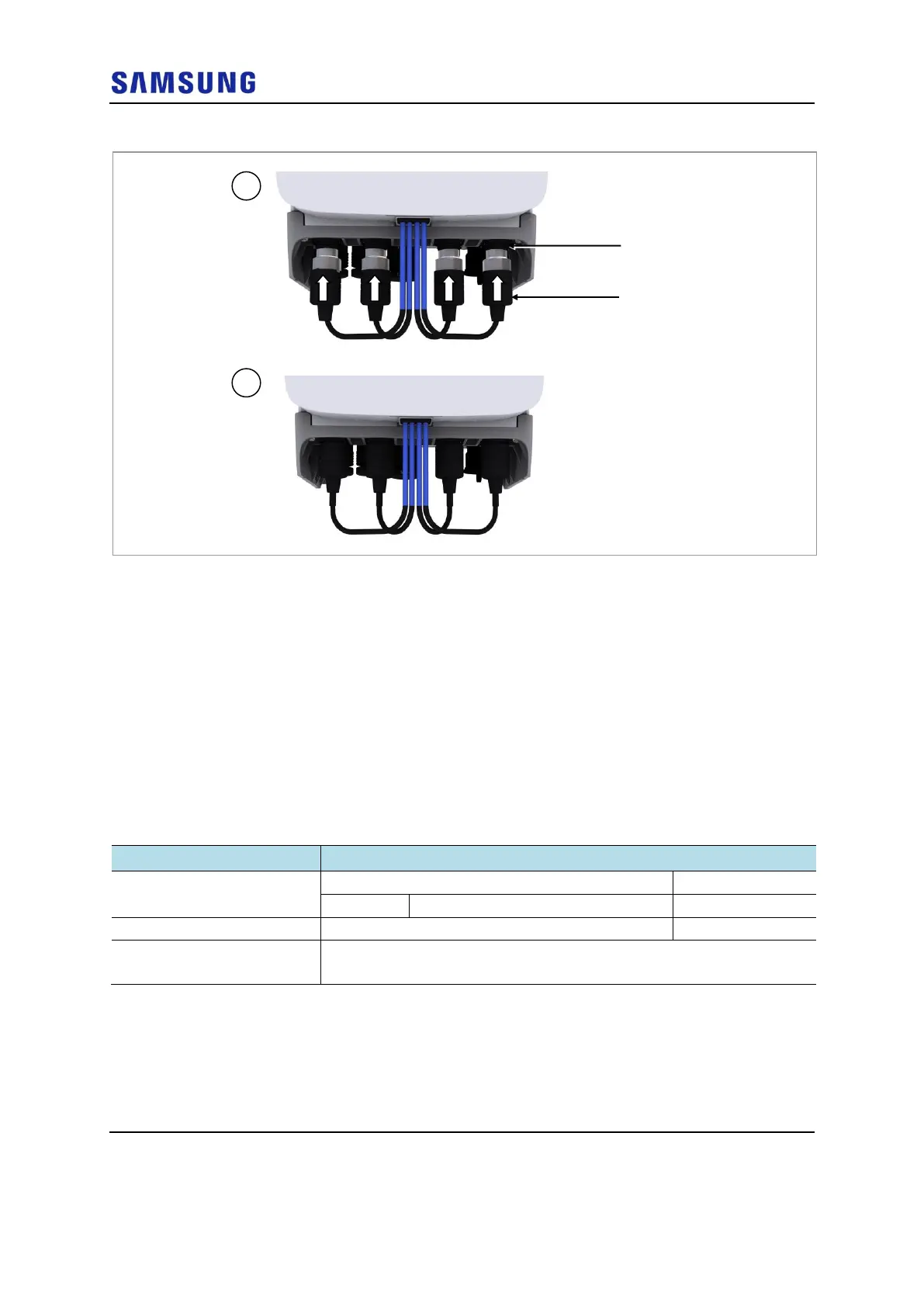

Figure 19. Assembling Clip on Antenna (5)
Assembling AC-DC Power Unit
This section describes the procedure to fix the AC-DC power unit on the RRH.
Assembling Clip on Antenna
To fix the AC-DC power unit, do the following:
Prerequisites
Before proceeding with assembling the AC-DC power unit make sure that you
have the items mentioned in the table below.
Table 5. Parts and Tools for Assembling AC-DC Power Unit on RRH
Category
Description
Parts
AC-DC Power Unit
1 EA
Fasteners
M5 × L16 Torx Screw
2 EA
Recommended Torque Value
M5 Torx Screw
25 lbfin
Working Tools
 Torque Driver (20 to 90 lbf·in)
 Screw Driver Bit (T25H)
1 Place an AC-DC power unit to the right side of the RRH.
1
2
Port Seal
Weatherproof Boots
