Chapter 2 Installing System
RT4401-48A Installation Manual v3.0 64
Copyright © 2019, All Rights Reserved.
Prerequisites
Before proceeding with assembling the side by side bracket, make sure that you
have the items mentioned in the table below:
Table 23. Parts and Tools for Fixing Side by Side Bracket on the Pole
M10 × L220 Stud Bolt Assembly
M10 Flange Nut
M10 Hexagonal Nut
Spanner (apply hexagonal. head: 17 mm)
1 Insert the stud bolts to the fixing hole of side by side bracket assembly.

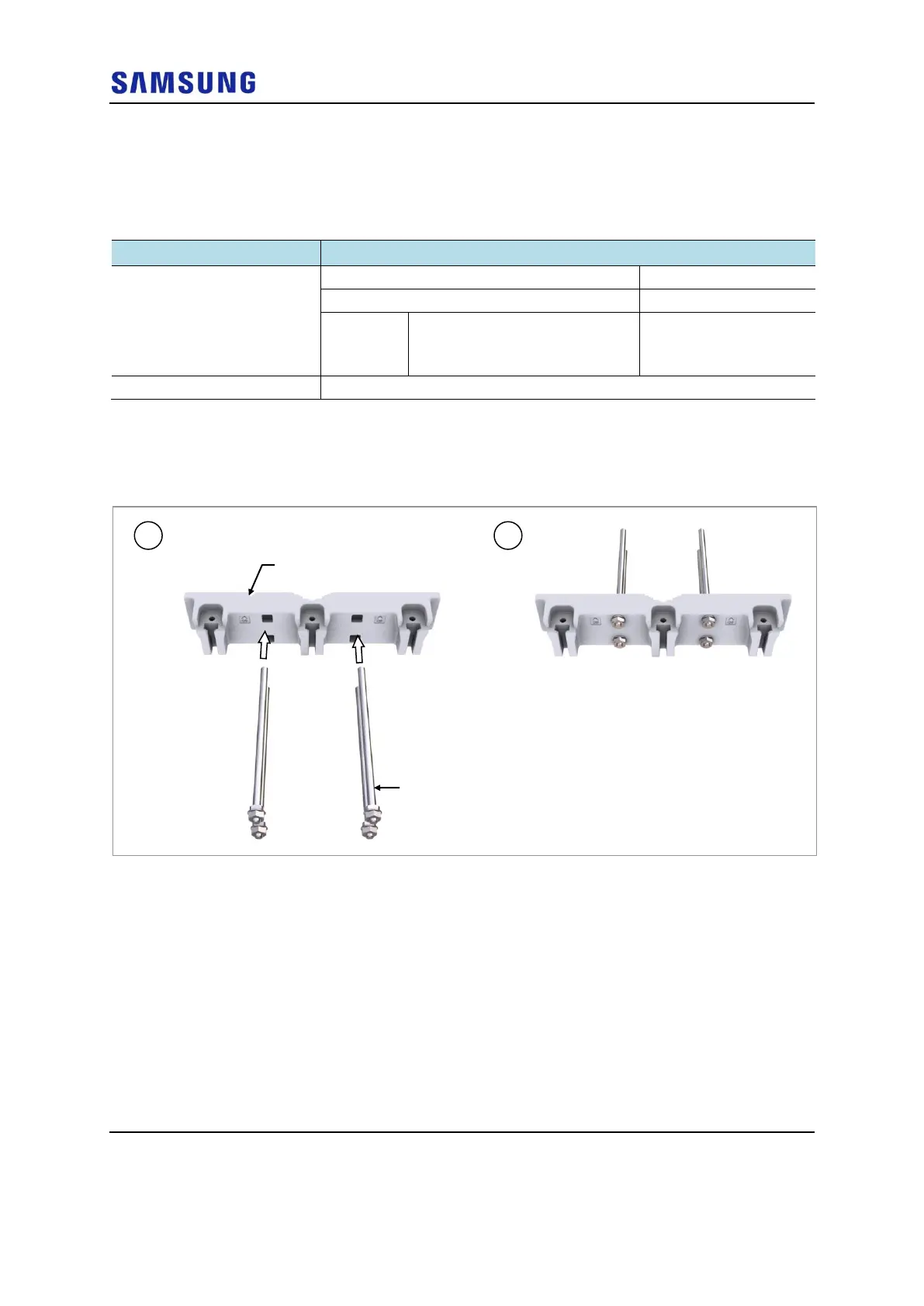

Figure 65. Assembling Mounting Bracket Assembly_Pole Type (1)
2 Insert the rear mounting bracket with aligning the hole and stud bolt at the left
lower side of side by side bracket.
To Next Page
