10 Cubis MSA User Manual
Getting Started
Assembly
Installing the Analytical Draft Shield, Assembling the Balance
(Draft shield designation: DA, DI, and DU)

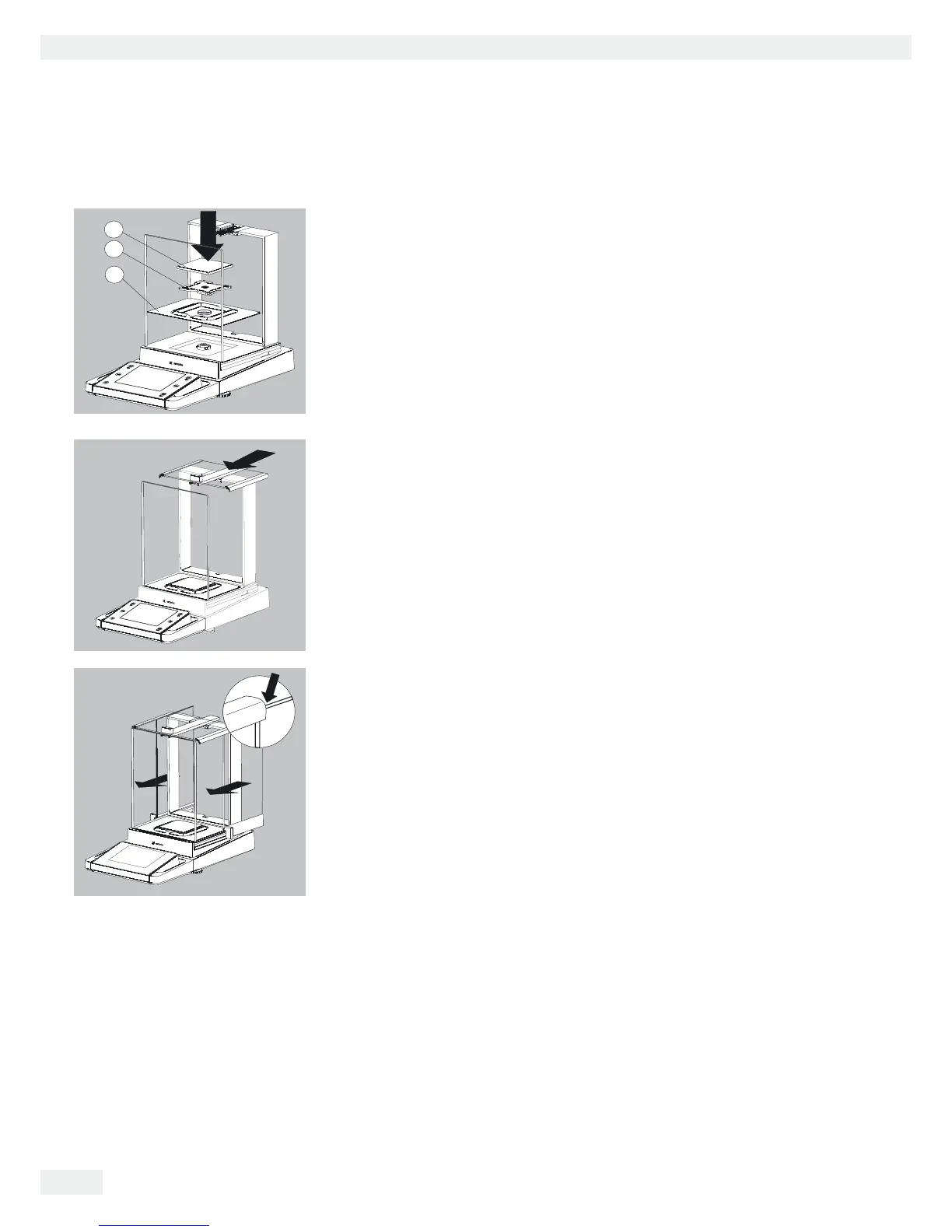

t Fit parts onto the balance as shown in the picture.
1. Shield plate
2. Pan support (not for MSx225.../MSx125... models)
3. Weighing pan
t Slide the upper draft shield panel into the guide rails from the rear.
t Slide the left and right draft shield panels into the guide rails from the rear.
Make sure the panels are within the upper and lower guide rails.
t Slide the panels in until they engage.
1. Right draft shield panel
2. Left draft shield panel
y This completes the balance assembly.
2
1
3
