22 Cubis MSA User Manual
Getting Started

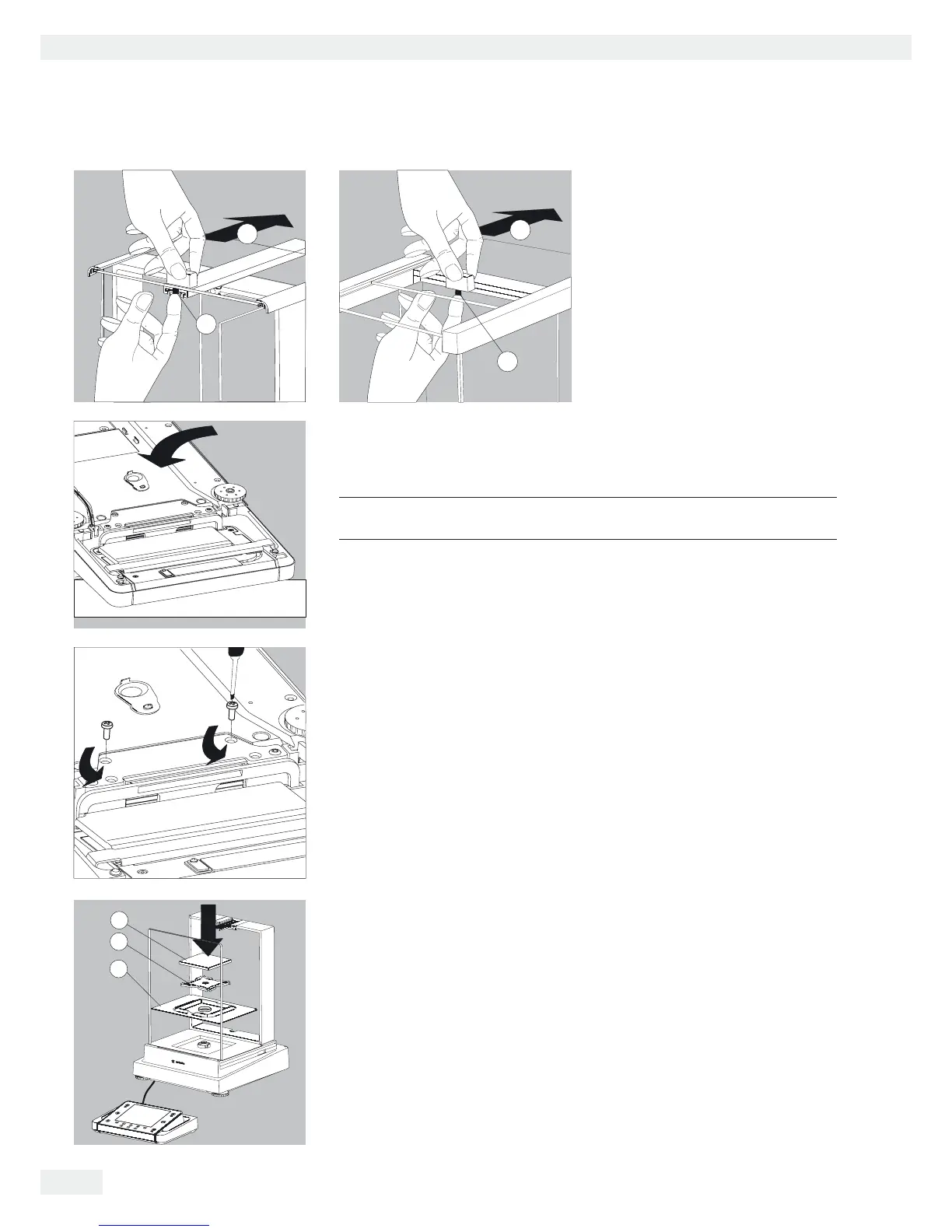

t Remove the upper draft shield
panel.
Models with the analytical draft shield
(left illustration).
1. Press on the locking tab.
2. Remove the panel.
Models with the milligram draft shield
(right figure):
1. Press on the locking tab.
2. Remove the panel.
t Keep all parts in a safe place.
t Turn over the balance and place it on a soft surface.
3
Exercise caution to avoid breaking the glass on models with a draft shield.
t Use a 2.5 mm Allen wrench to remove the two screws from the display and
control unit retainer bracket.
t Remove the display and re-insert both screws back into their holes.
t Lengthen the cable and position the display and control unit as desired.
t Turn the balance over and place it on an even surface.
t Carefully place all parts on the balance.
1. Shield plate/Draft shield
2. Pan support (not for MSx225.../MSx125... models)
3. Weighing pan
2
1
2
1
2
1
3
