181
Using the Configurator
The Present only in Secondary and Present only in Primary options do not apply to the Job
Tree. The entire Job Tree is shown, regardless of these options. These options are applied
only to the details of devices.
If you select Present only in Secondary Job or Present only in Primary Job, but you do not
select Modified, then circuits that have had only correlation changes will not be shown as
different.
19.24.2 Interpreting the results
The comparison appears as one job tree.

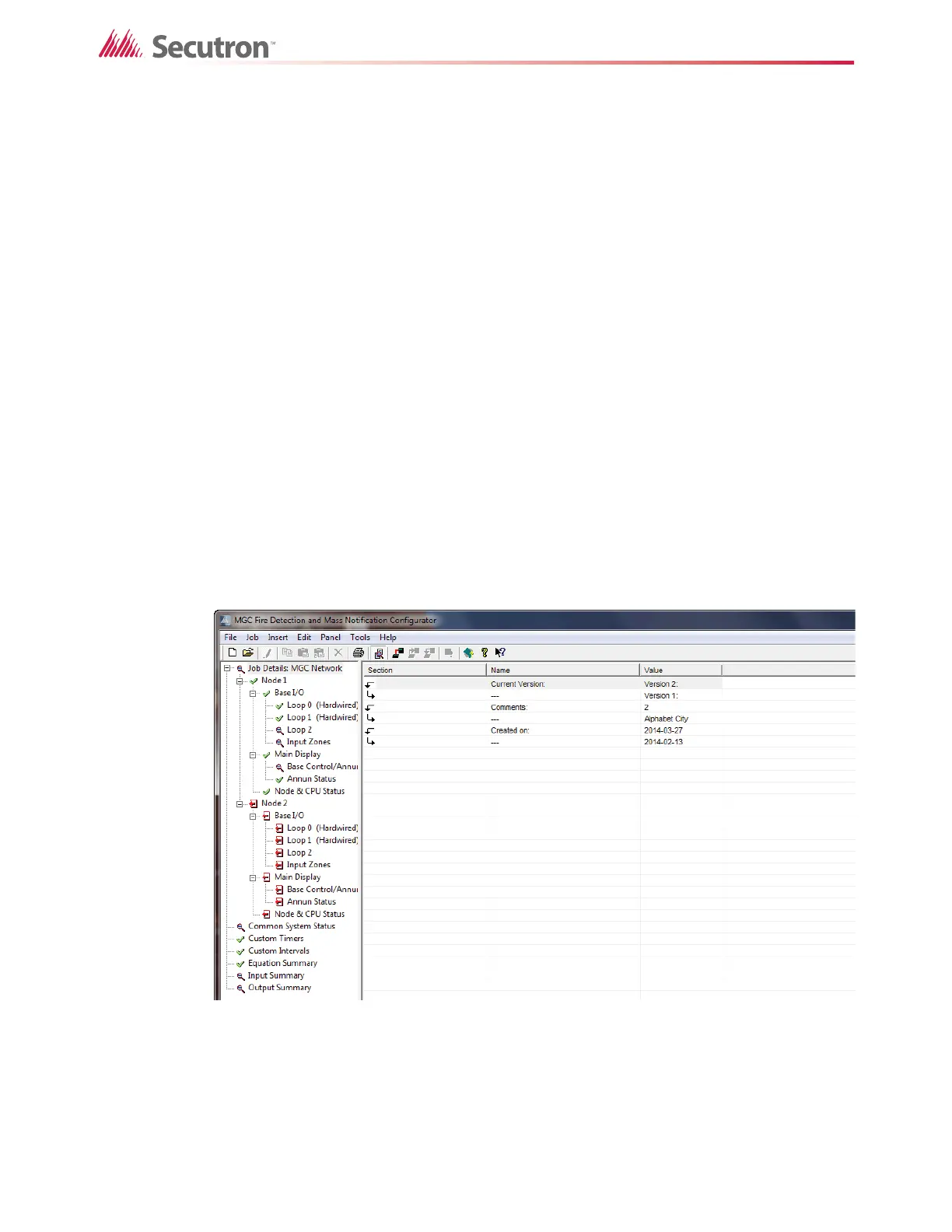

Figure 129 Job Comparison
Modified Select this check box to include any item that has been
modified (it is the same adder, circuit, or switch but some
attribute has been changed).
Present only in Secondary Select this check box to include items that are only
present in the secondary job. For example, loop adders,
annunciators, and display adders that are not in the
primary job will be included.
Present only in Primary Select this check box to include items that are only
present in the primary job. For example, loop adders,
annunciators, and display adders that are only in the
primary job will be included.
