132
Connecting to a BACnet system
The Device Name
The IP Address and UDP Port number
The MS-TP Network number and MAC Address (for some devices)

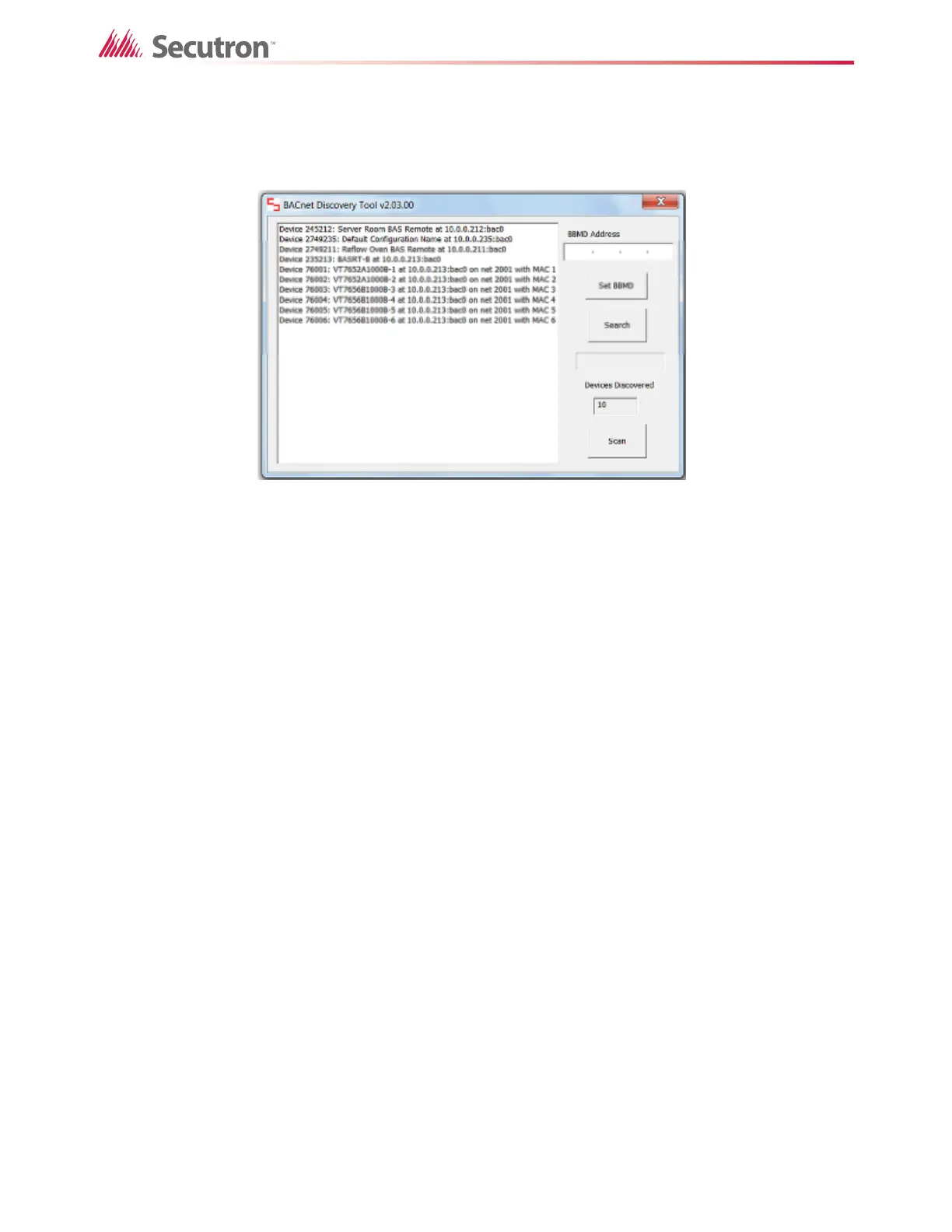

Figure 85 BACnet Discovery Tool
Double click any discovered device to see a list of objects contained in that device. The Device
name will appear at the top of the objects list and can be double clicked to display the Device
Objects Properties window with more detailed information on the device. Any of the contained
objects may be double clicked to open up the Object Properties window with more detailed
information on the object. If the Write button is not greyed out you may set a Write Value and a
Priority value for this object.
The “Scan” button starts a continuous scan of all devices and objects in the database,
reporting their present values or logging errors if they fail to reply.
