18
Working with the Fire Alarm Control Panel and the Configurator
2.2 Sending a Job to the Fire Alarm Control Panel
To send a job
1. Click Job > Open Job and open the job that you want to send.
2. In the Configurator, click Panel > Connect.
3. Click Panel > Send Job.
4. Select the nodes that you want to send the job to.

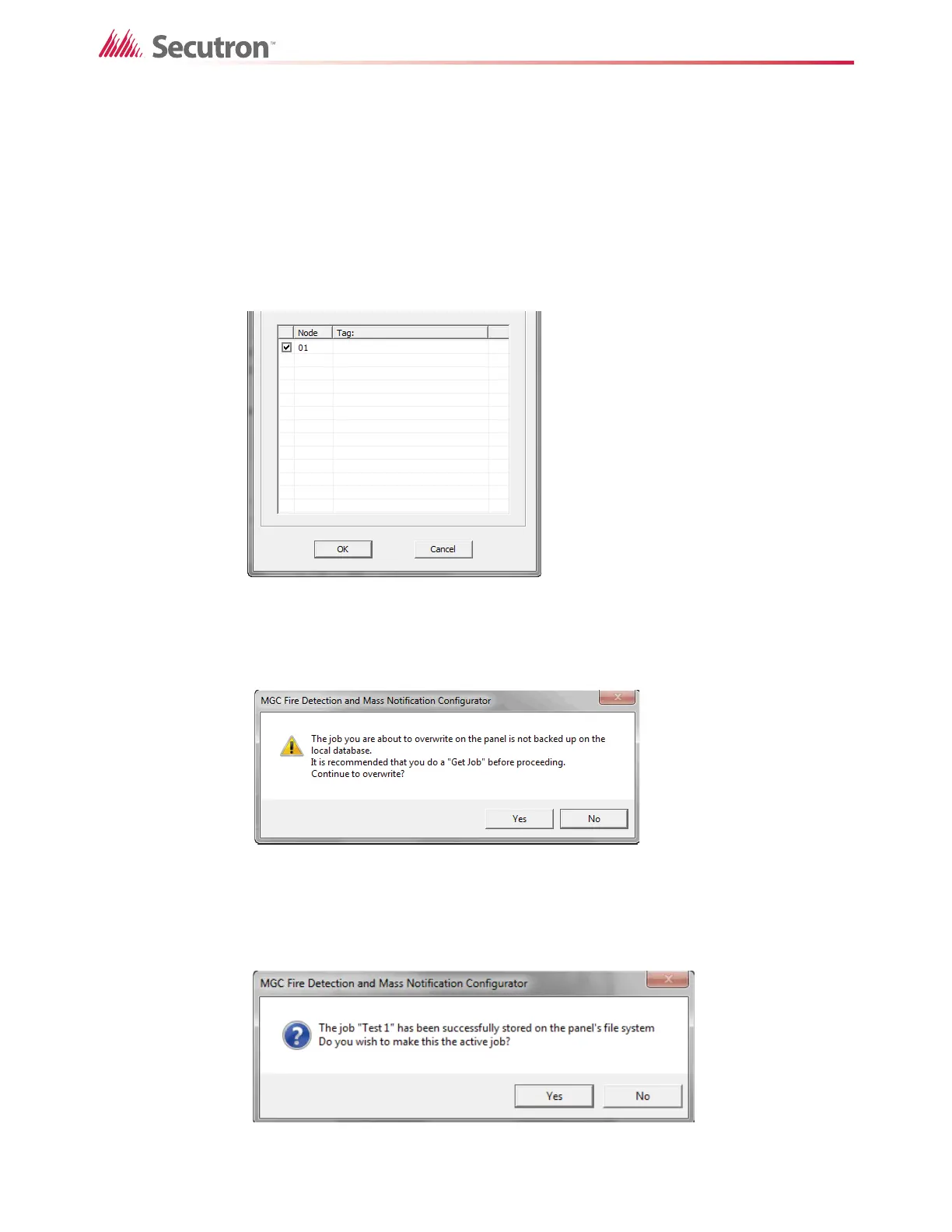

Figure 4 Send Job
A window appears warning you that the job you are about to overwrite on the panel is not
backed up on the local database. This message only applies if you are sending the same
version of a job that is already on the panel.
Figure 5 The job you are about to overwrite on the panel is not backed up on
the local database
5. Click Yes.
A window appears asking if you want to make this job the active job.
Figure 6 The job has been successfully stored
