Secutron MMX-2009-12NDS Application Guide

89
Hardware Layouts
11.8 MMX-BBX-FXMNS Mass Notification Node Backbox
The MMX-BBX-FXMNS backbox is used for the mass notification node. It can hold 2 paging
modules, 9 adder modules and 7 display modules as shown in Figure 58. It also supports the
addition of 4 audio amplifiers along with audio and telephone networking modules. The outer
dimensions of the MMX-BBX-FXMNS fit within 63.5” X 22.5” X 9.5”.

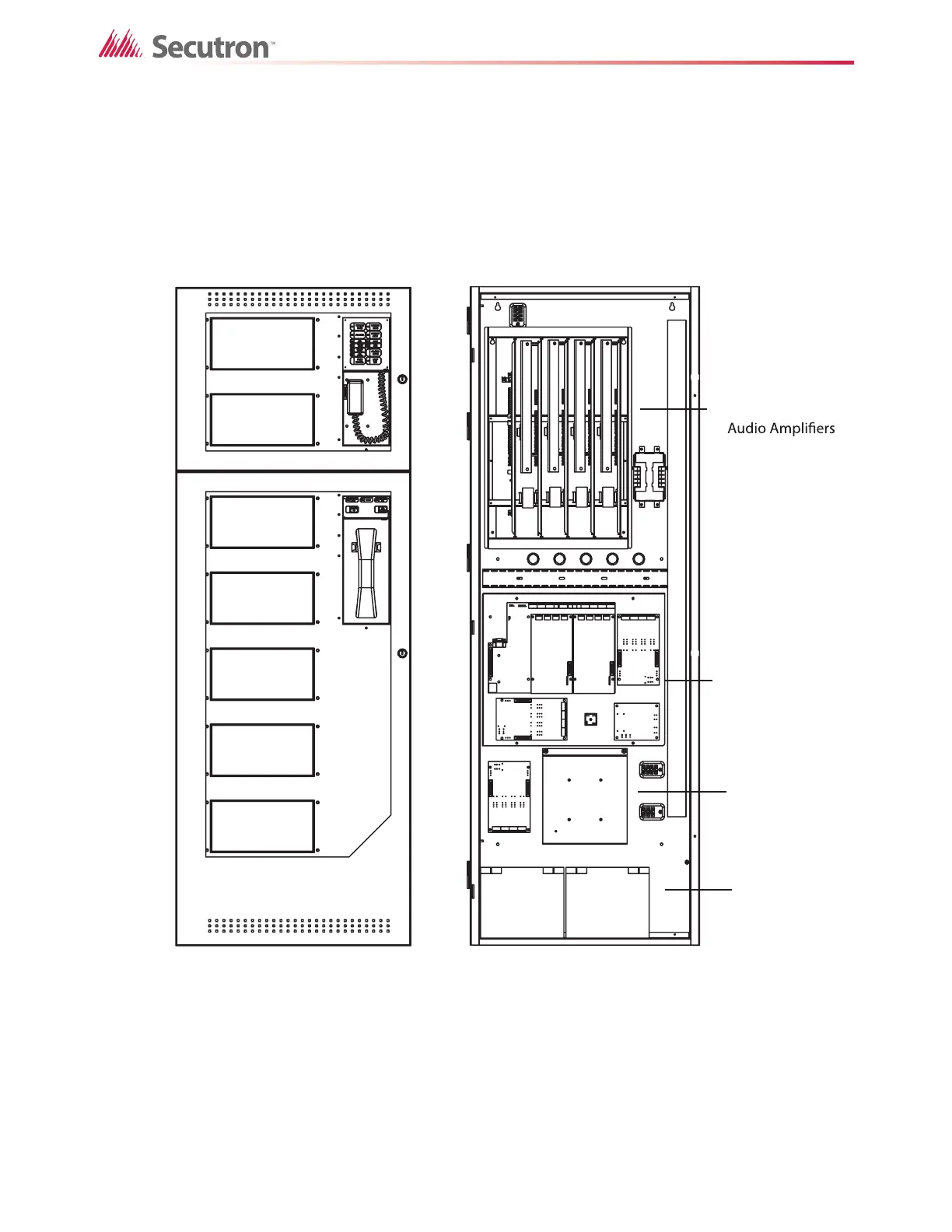

Figure 58 MMX-BBX-FXMNS Sample Layout
Cutout to mount
any display
module
Cutout to mount
any display
module
Cutout to mount
any display
module
Cutout to mount
any display
module
Cutout to mount
any display
module
Cutout to mount
any display
module
Cutout to mount
any display
module
Exterior View
Interior View
Audio and Telephone
Network Cards and
Main Board and 9
Adder Modules
Transformer
Batteries
