11.7.4 BB-5014 Fire Node Backbox
The BB-5014 backbox is the largest available backbox. It can use the MMX-2009-12NDS
Large Main Chassis combined with ECX-0012 Expander Chassis for additional display
modules and the CCH-5008/CCH-5014 Custom Mounting Kits for paging and fire fighter
telephone modules. The MMX-2009-12NDS Large Main Chassis can be substituted for two
ECX-0012 Expander Chassis with the main display being replaced by the DSPL-420 Narrow
Main Display module. The outer dimensions of the BB-5014 fit within 61.5” X 32.5” X 7.5”

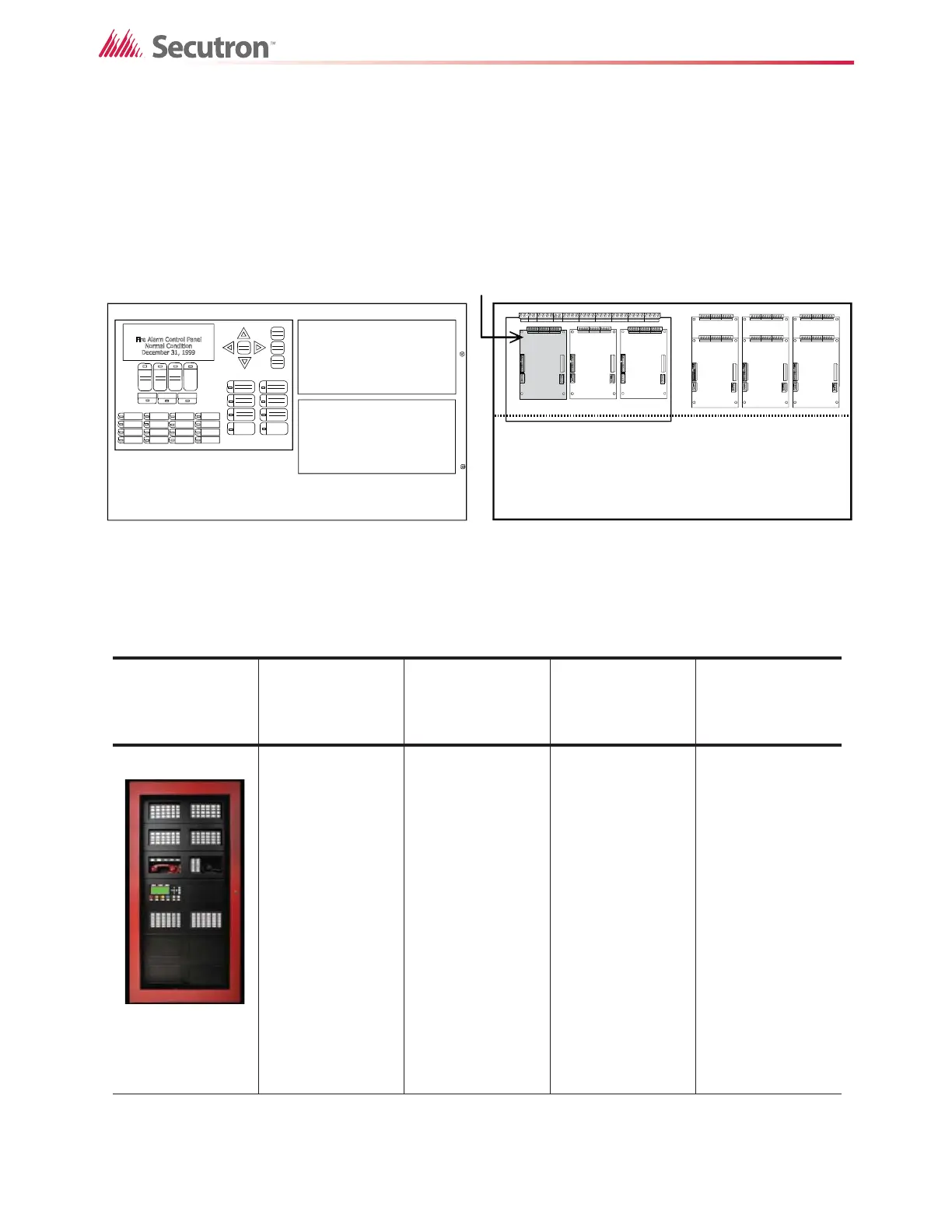

Figure 53 MMX-2009-12NDS mounts and occupies 4 display positions in BB-
5008 or BB-5014
Table 14 BB-5014 Backbox
Name Description Holds Number of
Displays and
Remote
Annunciators
Dimensions
BB-5014(B/R)
Lobby Control
Backbox (black
backbox, black or
red door)
1 MMX-2009-
12NDS
2 ECX-0012s
DSPL-420
DSPL-2440
INX-10AC
RAXN-LCD
RAXN-LCDG
QMT-5302N
QMP-5101N
QAZT-5302DS
24 Ah battery
pack
14 (the MMX-
2009-12NDS uses
4, the ECX-0012
uses 2)
61.5” H x 32.5” W
x 7.5” D
Cutout to mount
display module
Cutout to mount
display module
Exterior View
Interior View
Slot is reserved for PR-300A. If none is required, this slot
can be used to mount any of the adder modules.
Supports 2 Display Modules.
Supports 9 Adder Modules.
4
213
56
789
Main Board
