Secutron MMX-2009-12NDS Application Guide

88
Hardware Layouts

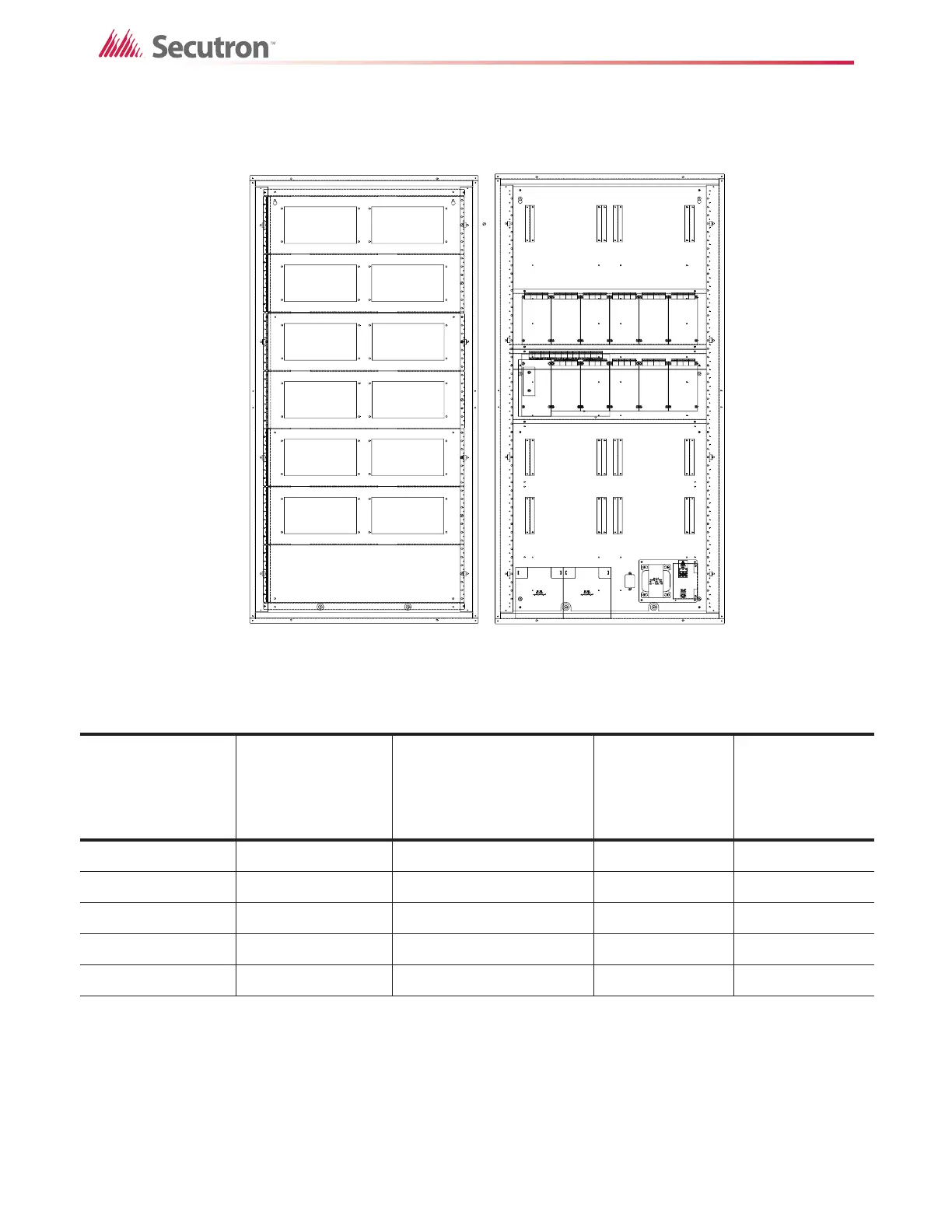

Figure 57 BB-5014 Sample Layout
11.7.8 Backboxes for the RAXN-LCD and RAXN-LCDG
Table 15 Backboxes for the RAXN-LCD(G)
Name Number of
annunciators and
audio modules it
holds
Dimensions Horizontal
distance
between
mounting
screws
Vertical
distance
between
mounting
screws
MMX-BB-1001 1 9”H x 12.75”W x 1.2”D 9.95” 7.50”
MMX-BB-1002 2 18”H x 12.75”W x 1.2”D 9.95” 16.5”
MMX-BB-1003 3 26.4”H x 12.75”W x 1.2”D 9.95” 24.90”
MMX-BB-1008 8 33”H x 22.5”W x 1.25”D 20.9” 35.2”
MMX-BB-1012 12 45”H x 22.5”W x 1.25”D 20.9” 52.0”
Exterior View
Cutout to mount
any display or
paging module
Interior View
BB-5014 Sample Layout
Cutout to mount
any display or
paging module
Cutout to mount
any display or
paging module
Cutout to mount
any display or
paging module
Cutout to mount
any display or
paging module
Cutout to mount
any display or
paging module
Cutout to mount
any display
module
Cutout to mount
any display
module
Cutout to mount
any display
module
Cutout to mount
any display
module
Cutout to mount
any display
module
Cutout to mount
any display
module
