139

Using the Web Server

18.2.4 Alarm Log

The Alarm Log page displays the list of all Alarms, including network and system restarts. You

can save or print this log with the buttons at the top of the page. Note that there is a delay of a

few minutes before the logs update. They are not updated in real time.

To view the Alarm Log:

• Click System Logs, and then click Alarm Logs.

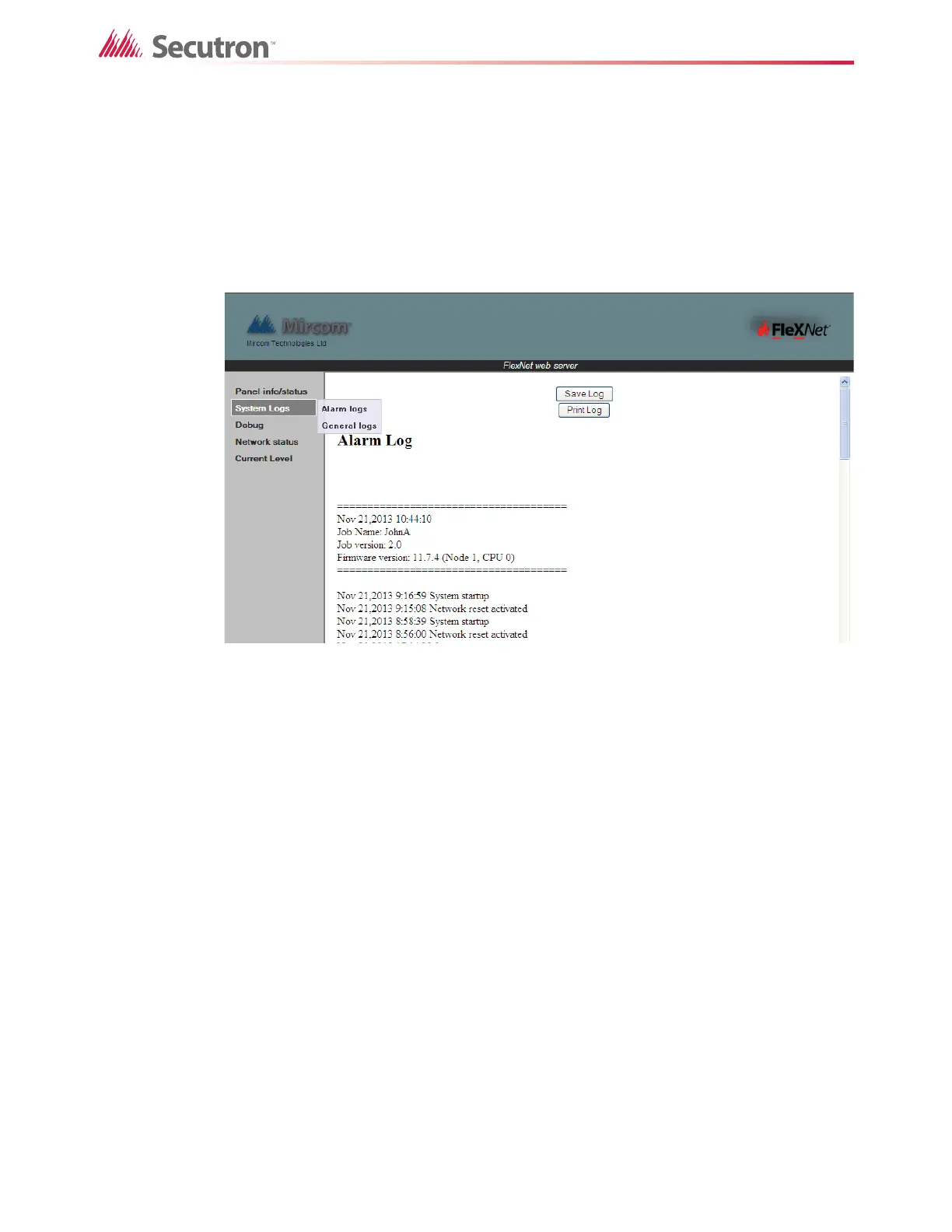

Figure 92 Alarm Log
