191
Using the Configurator

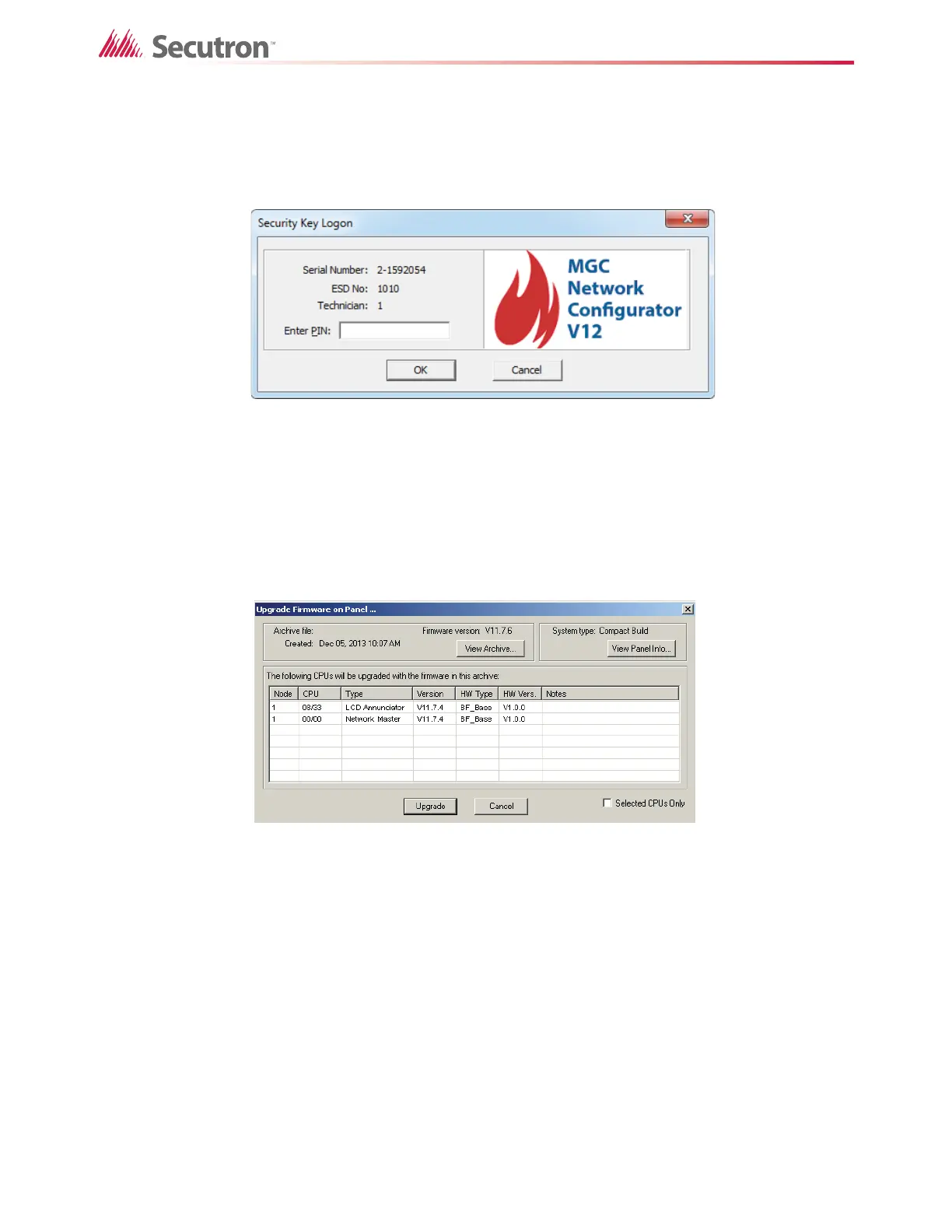

19.32 Security Key Logon
This window appears if the CodeMeter key is inserted when you start the Configurator. It also
appears if the key is inserted later.
Figure 141 Security Key Logon
• Type your PIN and click OK.
19.33 Upgrade Firmware
This window appears when you select the Upgrade Firmware command, after you have
selected a firmware archive.
Figure 142 Upgrade Firmware on Panel
View Archive The Firmware Archive Contents window appears, which
lists all of the files in the archive.
View Panel Info The Advanced Panel Information window appears,
which lists all of the CPUs present on the panel.
Selected CPUs Only Select this check box, and then select the CPUs you wish
to upgrade. If this check box is not selected, all of the
CPUs will be upgraded.
To select multiple rows:
• Hold down the Ctrl key and right-click in the row.
Upgrade Starts the firmware upgrade.
