Secutron MMX-2009-12NDS Application Guide

83
Hardware Layouts
11.7.3 BB-5008 Fire Node Backbox
The BB-5008 backbox is larger than the MMX-BBX-1072A(R)DS. It can use the MMX-2009-
12NDS Large Main Chassis combined with ECX-0012 Expander Chassis for additional display
modules and the CCH-5008/CCH-5014 Custom Mounting Kits for paging and fire fighter
telephone modules. The MMX-2009-12NDS Large Main Chassis can be substituted for two
ECX-0012 Expander Chassis with the main display being replaced by the DSPL-420 Narrow
Main Display module. The outer dimensions of the BB-5008 fit within 38.0” X 32.5” X 7.5”.

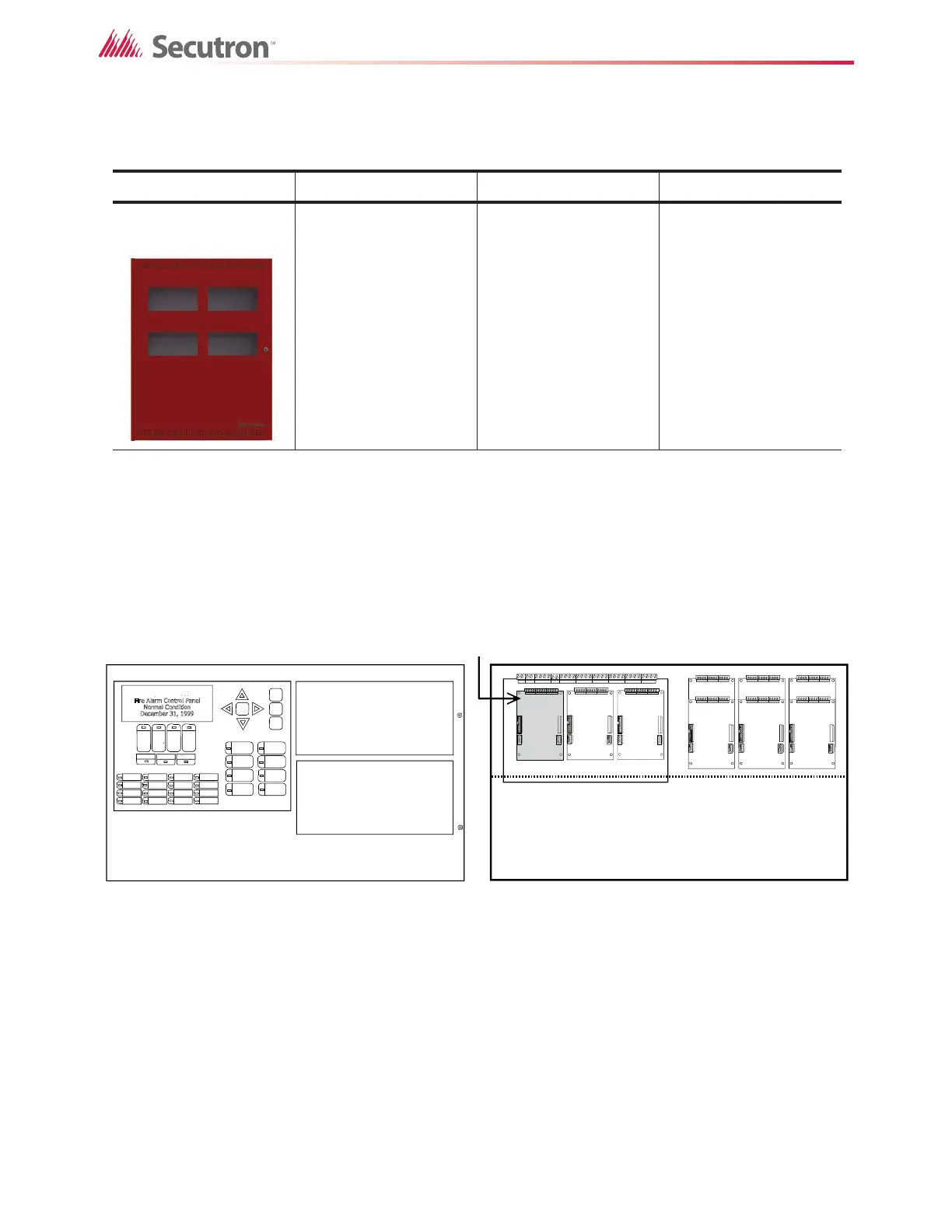

Figure 51 MMX-2009-12NDS mounts and occupies 4 display positions in BB-
5008 or BB-5014
Table 12 BBX-1072A(R)DS
Name Description Holds Dimensions
MMX-BBX-
1072A(R)DS
Black backbox, white or
red door
MMX-2017-12NDS
DSPL-420
DSPL-2440
24 Ah battery pack
33.9” H x 26.4” W x
6.5” D
Cutout to mount
display module
Cutout to mount
display module
Exterior View
Interior View
Slot is reserved for PR-300A. If none is required, this slot
can be used to mount any of the adder modules.
Supports 2 Display Modules.
Supports 9 Adder Modules.
4
231
56
789
Main Board
