Using the Configurator

19.5 Job Details

This section explains the options in the Job Details.

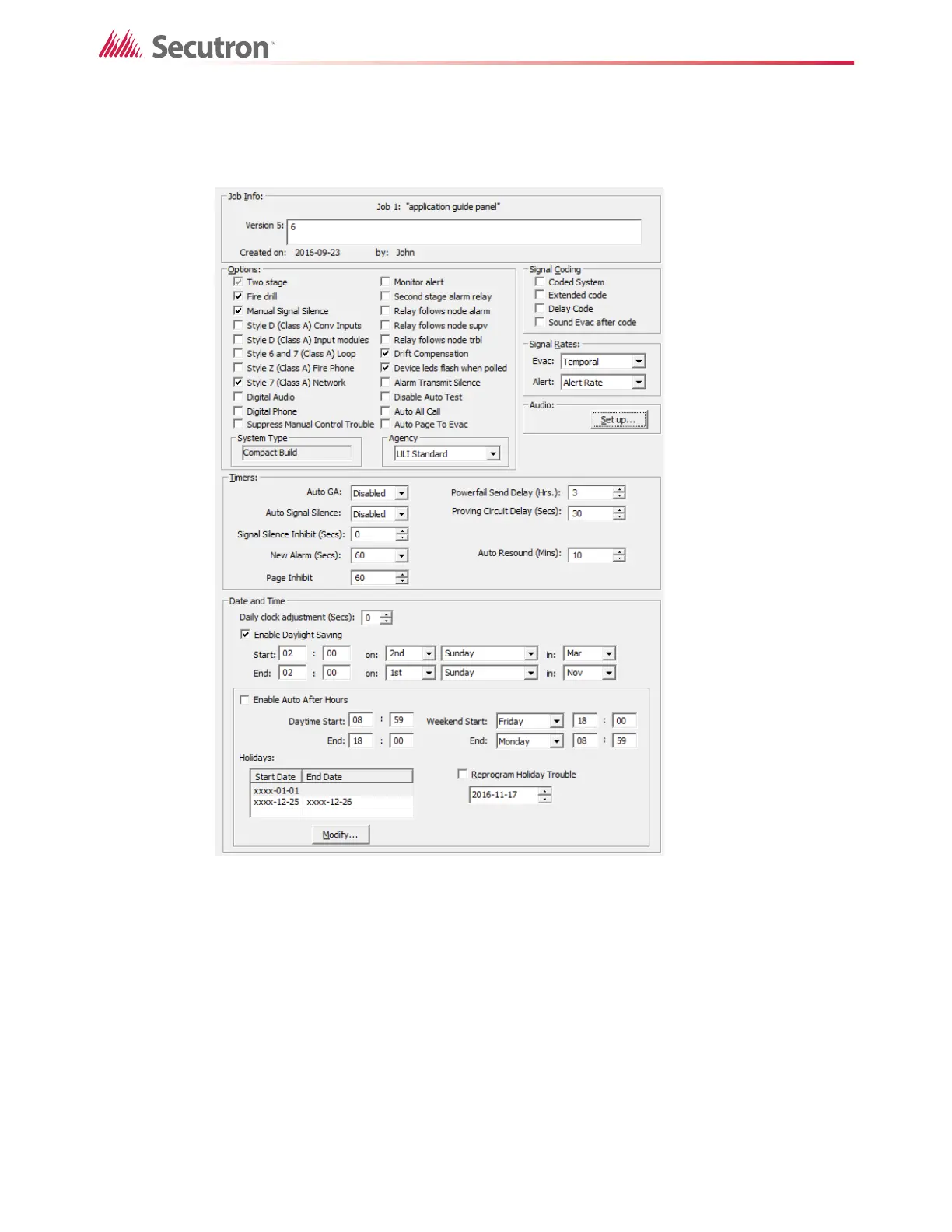

Figure 102 Job Details

To see the Job Details

• Select the Job Details node (the highest node) in the Job Tree.

Job Info

The Job Info section shows details of the job's name, number, creation date and author, and

any comments. Text in the Version field becomes part of the job’s version history.
