Secutron MMX-2009-12NDS Application Guide

86
Hardware Layouts
11.7.5 ECX-0012 Expander chassis for MMX-2009-12NDS
The backplate can support 12 adder modules or any 2 of the following 3 options:
• 6 adder modules
• 1 main board and 3 adder modules
• 1 telephone network module and 1 audio network module.

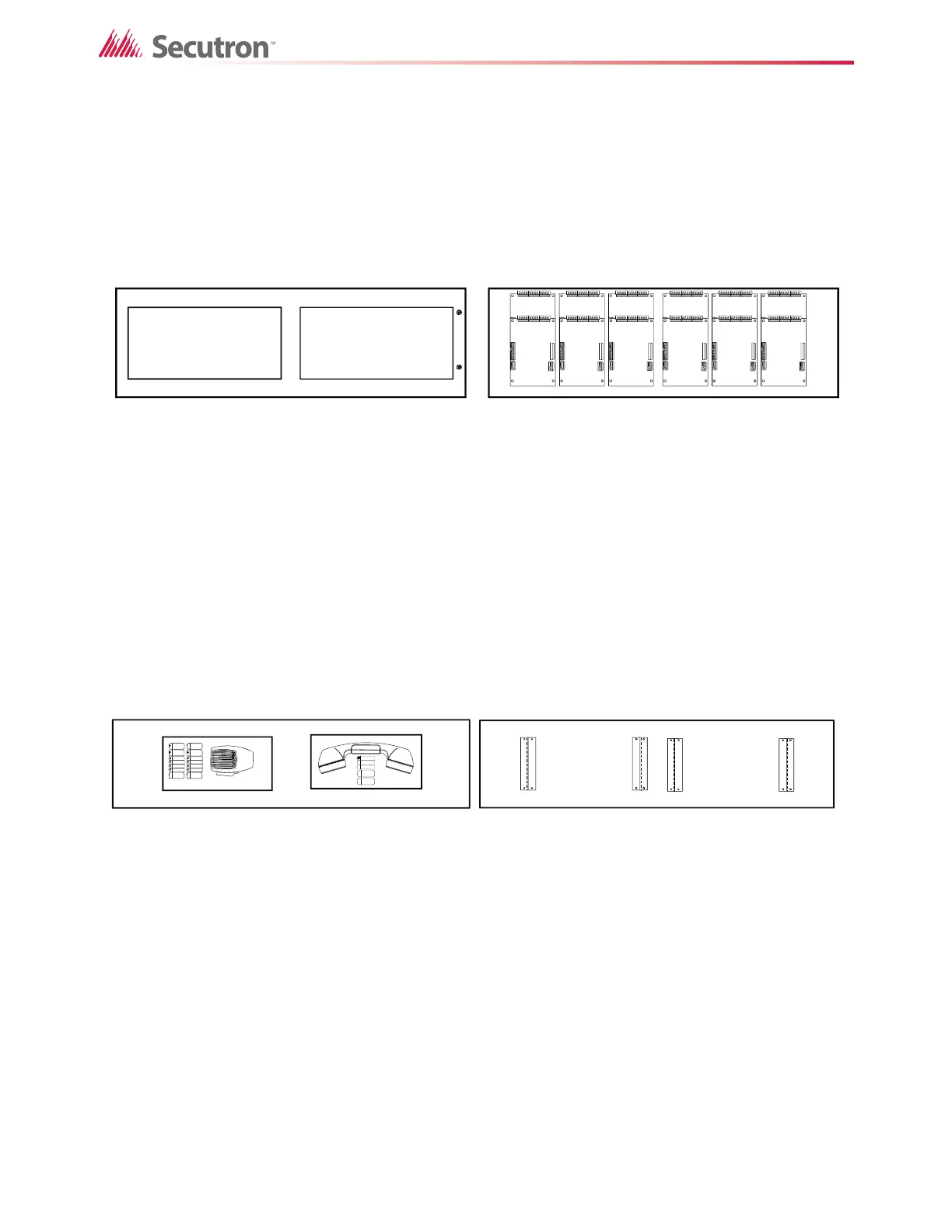

Figure 54 ECX-0012 mounts and occupies 2 display positions in BB-5008 or BB-
5014
11.7.6 Mounting of paging and firefighter telephone modules in the BB-5008 or
BB-5014
The paging and firefighter telephone modules mount in the MMX-BB-1000 or BB-5000 series
enclosures. These modules require brackets for mounting. The brackets are attached to the
backplates of the enclosures. The MMX-2017-12NDS mid-size main chassis does not have
provisions for these brackets since adder modules are mounted to the backplate. In order to
mount the paging and firefighter telephone modules, order the CCH-5008 or CCH-5014
custom mounting kits which will provide the proper deadfront as well as the brackets on the
backplate. These modules can also be mounted in the MMX-BB-1000 enclosures.
Figure 55 Mounting of Paging and Fire Fighter Telephone Modules in the BB-
5008
.seludoM reddA 21 stroppuS.seludoM yalpsiD 2 stroppuS
Cutout to mount
display module
Cutout to mount
display module
weiV roiretnIweiV roiretxE
1
2
34
56
789101112
Exterior View
Interior View
