19.8 Main Display / LCD Annunciator
To add an annunciator
1. Select the node that you want to add an annunciator to.
2. Click Insert > Add Annunciators.
The Add Annunciator window appears.

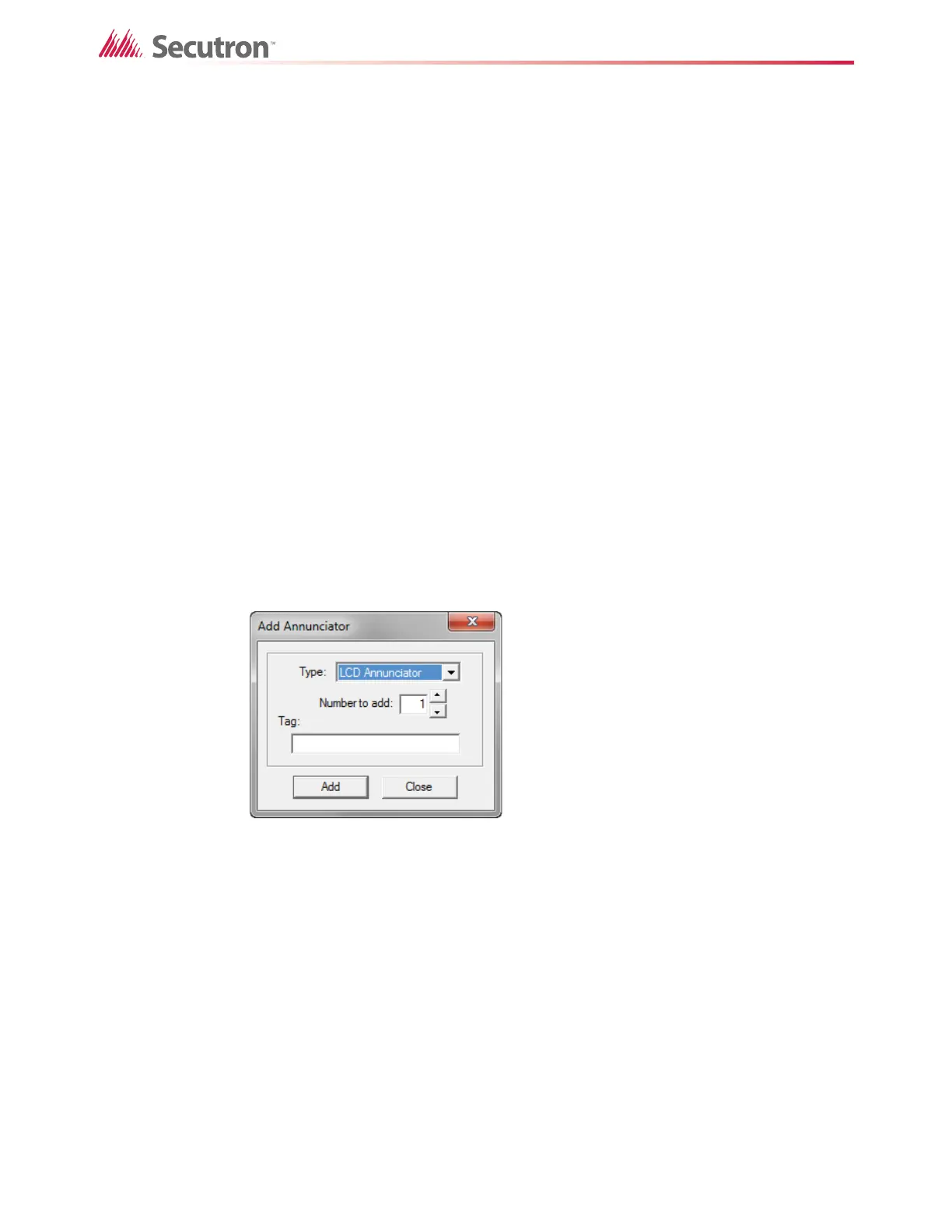

Figure 107 Add Annunciator
3. Select the type of annunciator that you want to add from the Type pulldown menu.
4. Type the number of annunciators that you want to add in the Number to add field.
5. Type a description for the new annunciators or annunciators in the Tag field.
6. Click Add.
The Configurator adds the annuciators.
If the number of annunciators that you selected exceeds the maximum number of
annunciators allowed on this node, a message appears saying that the Configurator
cannot add some of the CPUs.
7. Click Close.
Common trouble relay
follows node trbl
Select this box to set the Trouble relay on this node to
activate on node level trouble.
Device LEDs flash when
polled
Select this box to indicate that the LEDs of the
addressable devices on this loop flash when polled.
Strobe Choose the brand or manufacturer of the strobes that are
installed on this node. This ensures that the correct
synchronization sequences are sent to the strobe.
CLIP/Advanced Protocol
Address Space
Defines the address boundary between CLIP devices and
Advanced Protocol devices.
• AP Start: Enter the starting address of the AP devices
on the loop. The addresses below this entry are
allocated for CLIP devices and the addresses above
and including this entry are allocated for AP devices.
Valid AP Start values are 001 to 100.
