Using the Web Server

• Click Start to begin monitoring.

The Device Info window shows the current level readings and the percentage that the

current level is at before it reaches alarm level at or beyond 100%.

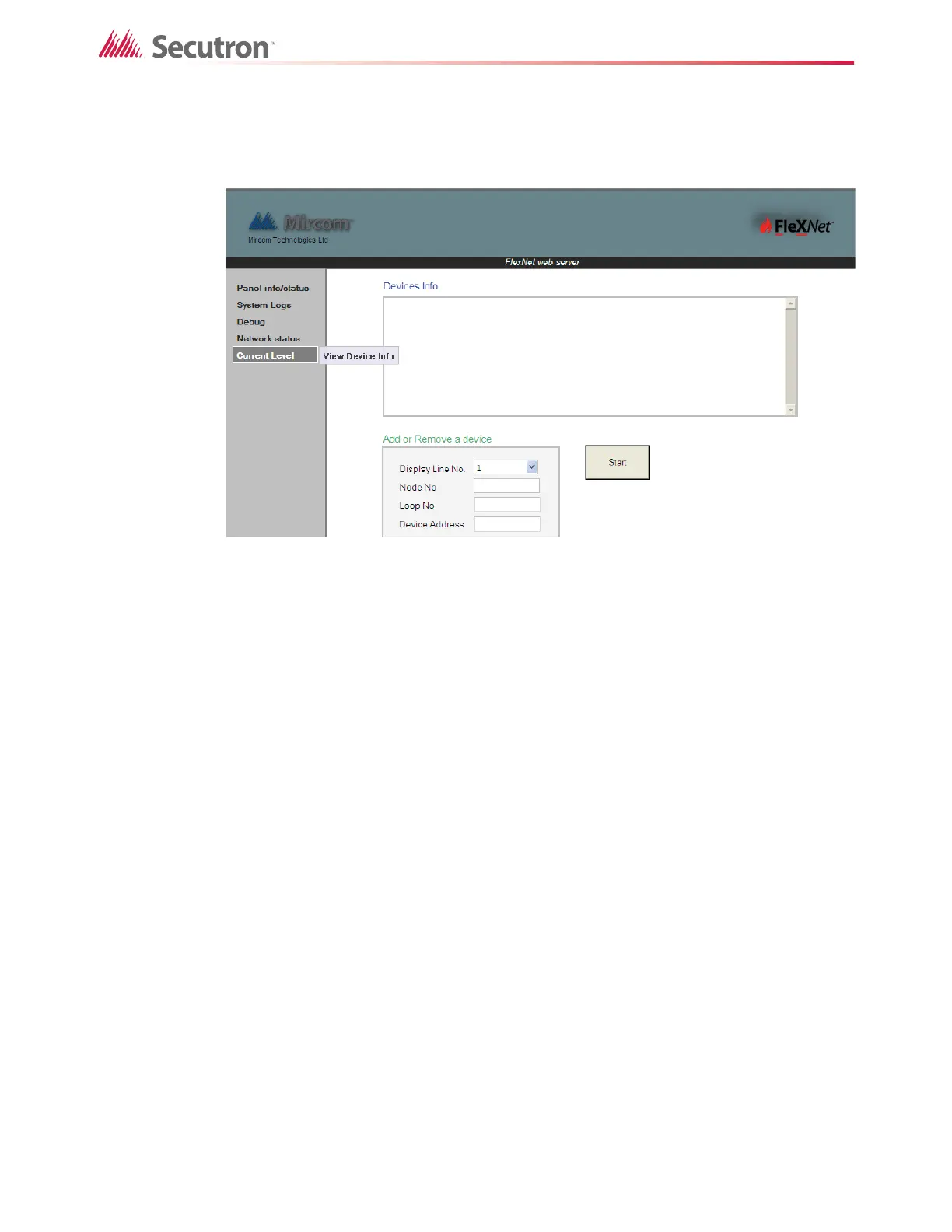

Figure 99 Devices Info

Default Chapter3
