Kingfisher Plus+ Hardware Manual

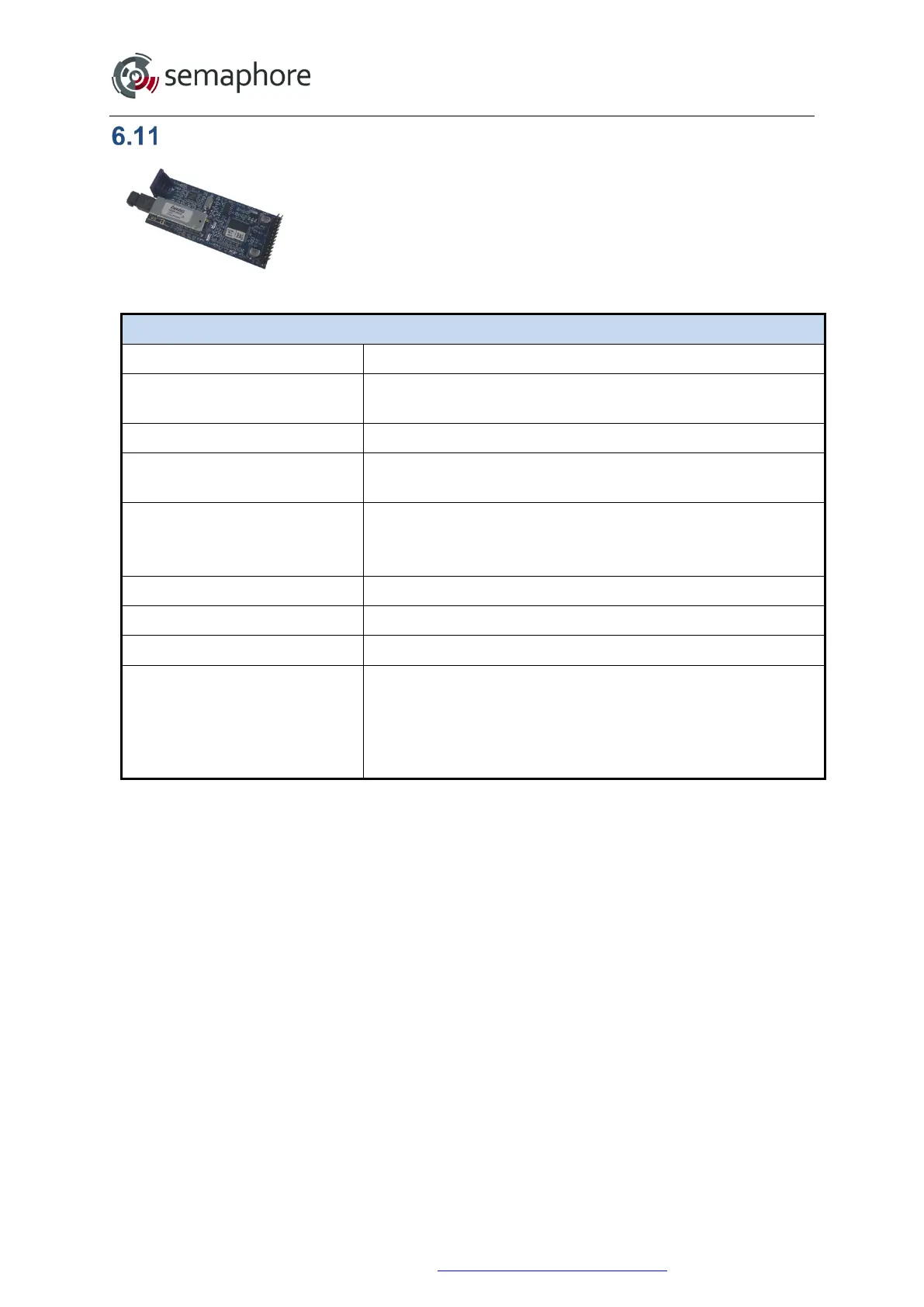

Option Board A3: Fibre Optic Ethernet
The A3 option board provides Ethernet connectivity via fibre optic
cable. The A3 is functionally equivalent to a T3 Ethernet board,
but fibre optical cabling is used in place of copper cabling
allowing for excellent electrical isolation.
A3 Ethernet Option Board Specifications
Connection Speed 10/100 Mbps
Optical Compliance
Full ATM 100 Mbps physical layer
Full 100 Mbps-FX (IEEE802.3u)
Fiber Optic Transceiver AFBR-5903Z
Supported Fiber Optic Cables
Multimode 50/125 um, 62.5/125 um, 100/140 um, and 200 um
HCS
Option Board Connectors
(use male connectors on cable)
MTRJ connector.
Available from Semaphore are the MTRJ-SC and MTRJ-ST
adaptors.
Internal Power Consumption 600 mA from +5 V
DC
Bus on backplane
Operating Temperature -20 to +70 °C
Storage Temperature -40 to +85 °C
Compatibility
Can be installed in any of the following ports:
CP-11/12/30 Port 2 or Port 3
MC-11/12/31 Port 2 or Port 3
LP-2 Port 4
LP-3 Port 3 or Port 4
Hardware Manual Version 7.16
http://www.servelec-semaphore.com/
Page 117
